AP1130 Hardware User Guide

AP1130 Hardware User Guide

Read about and view specifications and compliance information for the AP1130 in this topic. Install the AP1130 using this topic.

If your access point is configured for the World Regulatory Domain, it is important to set the country code to the country in which the AP will be deployed to meet regulatory requirements and for optimal wireless operation. To do this, follow these steps:

Note

Note

The country code selection is for World models only and is not available to FCC, CAN, and other country-specific models. Per FCC regulations, all Wi-Fi products marketed in the United States must be set to U.S. channels only.

For Devices Running HiveManager

  1. Power on the AP and allow it to find and connect to ExtremeCloud IQ. Once the AP is connected it appears in the table of devices on the Manage > Devices page.
  2. Select the check box next to the AP, and then choose Assign Country Code from the Actions drop-down list. In the dialog box, select the appropriate country from the drop-down list, and then click Save.
  3. Upload your changes to the device.

For Devices Running HiveManager Classic

  1. Power on the AP and allow it to find and connect to HM Classic. Once the AP is connected, it appears in the table of unconfigured devices on the Manage > Devices page and is categorized as New under the Management Status table header.
  1. Select the check box for the AP, and then choose Update > Advanced > Update Country.
  2. On the Update Country Code page, choose the appropriate country code from the drop-down list, and then click Upload.

The AP1130 is a multi-channel wireless access point with a watertight chassis that can be deployed in virtually any outdoor setting, including extreme environments.

With four antennas and the ability to provide service concurrently on both 2.4 GHz and 5 GHz bands, the AP1130 supports 802.11ac/n and legacy 802.11a, b, and g clients. The device provides 2x2:2 MIMO and a single 10/100/1000 Ethernet port through which it is powered using PoE (power over Ethernet) that follows the IEEE 802.3at standard.

The AP1130 is specifically designed for outdoor high-bandwidth wireless deployments in harsh environments. The AP1130 supports a variety of authentication and security protocols, including Wi-Fi CERTIFIED™ WPA™ and WPA2™, 802.11i, WEP, 802.1X, PSK, Extreme Networks’s patented PPSK (Private Pre-Shared Key), and AES:CCMP, TKIP, and RC4 (WEP only) encryption.

For more information about Extreme Networks APs in general, see Introduction to Extreme APs.

For information about connecting your AP to the network, best-practices, and troubleshooting, see Onboarding New Devices Troubleshooting Tips.

For regulatory and compliance information, see "Regulatory Compliance Statements".

Install the AP1130

Required Tools and Accessories

This section explains how to mount an AP1130 to a horizontal or vertical pole or flat surface in virtually any outdoor setting, and connect it to ExtremeCloud IQ over the network.

To install your AP1130, you will need the following accessories (ordered separately) and tools:

Shipping Carton Contents

The AP1130 ships with the items shown in this illustration.

Note

Note

Antennas must be ordered separately. For information, contact your Extreme Networks representative.

Safety Guidelines

The cautions, warnings, and compliance information in this section apply to AP1130 devices. Follow these precautions carefully when installing these devices, either indoors or outdoors.

The following safety icons are used in these guidelines to identify the type of precaution:

This icon indicates a general caution. Failure to comply with a caution notification can result in damage to equipment.
This icon indicates an electrical caution. Failure to comply with an electrical notification can result in serious injury or death, and extensive damage to equipment.
The following table lists general safety precautions you should follow when installing your AP1130 in either an indoor or outdoor location.

Extreme Networks devices must be installed by a professional installer who is certified to install these types of devices and to ensure that they are properly grounded and meet applicable local and national electrical codes.

Do not install the device in an environment where the operating ambient temperature might exceed the recommended ranges.

Changes or modifications made to this device that are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

To comply with RF (radio frequency) exposure limits, do not place the AP1130 within 15.75" (40 cm) of people when using omnidirectional antennas. If you are using a point-to-point mesh directional antenna, do not place the AP1130 within 26" (65 cm) of people.

For reliable connections in all conditions, especially in wet and windy locations, you must use the waterproof Ethernet cable housing.

For products available in the USA/Canada market, for the 2.4 GHz band, only channels 1-11 can be operated. Selection of other channels is not possible.

Use only attachments and accessories specified by Extreme Networks.

These devices are not designed or approved for use with power lines other than 110-120 V or 220-240 volts, 50/60 Hz, single phase (depending on the country in which they are being used). Attempting to use these devices on non-approved power lines may have hazardous consequences.

Do not plug these devices into a filtered power strip of AC line filter.

These devices are not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or with lack of experience of knowledge unless they are given supervision or instruction concerning use of the devices by a person who is responsible for their safety. Children should be supervised to ensure that they do not play with the devices.

Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs when electronic components are improperly handled and can result in complete or intermittent failures. Be sure to follow ESD-prevention procedures when handling electronic components.

Disconnect all power by turning off the power switch and unplugging the power cord before installing or removing a device, or working near power supplies.
Never assume that power is disconnected from a circuit; always check the circuit.

Reliable grounding of equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips.)

To protect the AP1130 from lightning, do not place it at the highest point of a building or structure.

During operation, the surfaces of the AP1130 can become hot. Use caution when handling.

Make sure that the AP1130 is connected to a suitably installed ground conductor. Contact the appropriate electrical inspection authority if you are uncertain that suitable grounding is available.

Do not locate the AP1130 enclosure near overhead power lines or other electric light or power circuits, or where it can come into contact with such circuits. During installation, exercise extreme care not to come into contact with these circuits, which can cause serious injury or death. For proper installation and grounding of the product, refer to national and local electrical codes: NFPA (National Fire Protection Association) 70, National Electrical Code Article 810 (U.S.); Canadian Electrical Code, Part I, CSA 22.1 and Section 54 (Canada); and if local or national electrical codes are not available, refer to IEC (International Electrotechnical Commission) 364, Part 1 through 7 (other countries).

Do not connect or disconnect antennas or cables from the AP1130 during periods of lightning activity.

Installation Information

You can mount the AP1130 outdoors on a horizontal or vertical pole, or on an indoor or outdoor wall. For example, you can mount the AP1130 on a non-penetrating roof stand or to a Winegard bracket, often used for mounting satellite dishes.

To provide unobstructed RF coverage, mount the AP1130 in a relatively open area on a pole, mast, of flat surface so that the antennas have at least a three-foot clearance from any nearby obstructions.

Make sure that you have all the materials and tools necessary, and familiarize yourself with the safety and site hazard warnings before you install the device. The following figure shows a typical rooftop installation.

Note

Note

For best performance, deploy AP1130 devices at least 100' (30.5 m) apart from each other.

Power Connections

In most cases, you can connect an Ethernet cable directly from your AP1130 to a PoE-enabled switch, or to a PoE injector inside the building. You can also connect your AP1130 to a DC power source, such as a battery backup or solar panel. If you are not using a PoE-enabled switch, you must connect to an intermediary PoE injector, then to your switch. In cases where your AP1130 is located a significant distance from the building, you can install an outdoor waterproof PoE injector, available separately. For information about Extreme Networks accessories, contact your sales representative.

Vertical or Horizontal Pole Mount

The following steps explain how to mount the AP1130 on a vertical or horizontal pole. The pole can be from 1.0 - 2.75 inches (25 to 70 mm) in diameter. You can also order a hose strap that will fit poles with a 3" to 15" (76 to 381 mm) diameter.

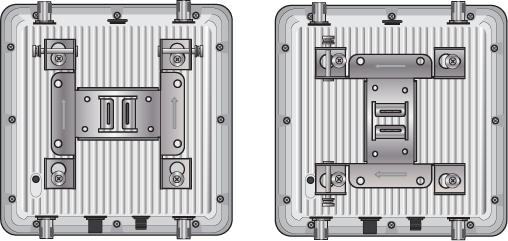

  1. Attach the bracket to the back of the unit for either a vertical or horizontal mount using the four mounting bolts with attached washers. Tighten the bolts with a crosshead screwdriver. Be sure to use the bolts with washers from the plastic bag labeled "Pole Mount and Grounding" as they secure the bracket tightly to the back of the device for pole mounts.
  2. The embossed arrows on the bracket should be pointing up for both a vertical pole mount and for a vertical surface (wall) mount.

  1. Slip the large ends of the bracket keyholes over the mounting screws.

  1. Slide the bracket up until the screws are in the narrow portion of the keyhole.

  1. Tighten the locking screws to secure the bracket.



  1. Thread the open end of the hose strap through the two tabs on the mounting bracket.
  2. Fit the hose strap around the pole and tighten the clamp with a 1/4" (2 cm) slotted screwdriver or a 5/16" (8 mm) nut driver.

  1. Insert the fifth bolt with washer through the terminal on one end of the ground cable. Thread the bolt into the ground hole on the back of the unit and tighten it until the ground terminal is secure.
  2. Connect the other end of the cable to an appropriate ground.

Correct Alignment for Horizontal Mounts

When attaching the AP1130 to a horizontal pole, such as the arm of a street light, make sure that the face of the device is perpendicular to Earth for optimal RF coverage.

Flat Surface Installation

The following steps explain how to mount the AP1130 on a flat surface or wall. You will need the mounting bracket and the four bolts without washers in the plastic bag labeled "Wall Mount". You will also need four mounting screws and wall mount anchors (not included) that are appropriate for the wall type where you are installing the unit.

  1. Use the bracket as a template to mark the location of the mounting holes in the wall.

  1. Drill a hole in the wall at each mark. Attach the bracket to the wall using the appropriate mounting screws for the wall type.
Note

Note

If you are not installing the device on a concrete wall, you can use threaded screws and plastic wall anchors (not supplied) to mount the device.
  1. Insert the bolts without washers from the plastic bag labeled "Wall Mount" into the four mounting holes on the back of the device.
  2. Insert the heads of the bolts on the device into the large end of the bracket keyholes and slide the device down until the bolts rest in the narrow end of the keyholes.
  3. Tighten the locking screws on the bracket to secure the device to the bracket.
  4. Connect the terminal on one end of the grounding cable to the ground lug on the unit, and connect the other end of the cable to an appropriate ground, as shown in Step 5 in "Vertical or Horizontal Pole Mount".

Attach External Antennas

Once you have grounded the AP1130, you are ready to connect the antennas.

Note

Note

It is extremely important to properly ground your device to complete your installation.

Use antennas that fit the N-type antenna connectors on the top and bottom of the AP1130. The two connectors on the bottom of the unit are for 2.4 GHz antennas, and the two on the top of the unit are for 5 GHz antennas (device and antennas are labeled).

The following omnidirectional antennas are available from Extreme Networks:

Screw the antennas onto the antenna connectors, turning them clockwise until they are secure. Finger-tighten the antennas only, do not over-tighten. You do not need to use a tool to tighten the antennas or apply self-amalgamating PTFE (polytetrafluoroethylene) tape around the connector threads to create a waterproof seal.

You can order RF connector covers (AH-ACC-1130-CVR-RF) for your AP1130. These covers work on both 2.4 and 5 GHz bands.

Note

Note

When you are not using the antennas, be sure to cover the antenna connectors with the antenna connector covers to protect the antennas and meet IP67 compliance requirements.

Attach the Ethernet Cable Waterproof Housing

The following steps explain how to ensure a weatherproof seal for the Ethernet cable using the waterproof housing assembly shown in the figure.

  1. Disassemble the waterproof housing. There are four pieces: a threaded nut, a slotted cable grip, a waterproof plug, and a threaded housing. Assemble the pieces of the housing onto the Ethernet cable in the order shown here:



The slot must be at the connector end of the grip to form a seal over the base of the connector.

The waterproof plug and slotted cable grip fit snugly inside the threaded housing. Push the cable connector into the housing until you cannot push it any farther and it is firmly in place, then insert the plug behind the grip.

  1. Slide the threaded nut over the Ethernet cable.
  2. Slip the waterproof plug over the cable in front of the threaded nut.
  3. Slip the slotted cable grip onto the Ethernet cable in front of the plug. Make sure the ridge on the cable grip is facing the RJ45 connector on the cable. Correct and incorrect positioning is shown here.

  1. Slide the threaded housing onto the cable and over the cable grip (the grip fits inside the housing).
  2. Push the cable connector into the threaded housing until you can not push it any farther and it is firmly seated in the housing.
  3. Push the waterproof plug into the threaded housing until it fits snugly behind the cable grip.
  4. Screw the threaded nut onto the threaded housing until it is tight.
  5. Insert the Ethernet cable into the female connector on the chassis. Rotate the head of the threaded housing clockwise until it locks into place.
  6. Connect the other end of the Ethernet cable to a PoE injector or PoE-enabled switch.

Access the Reset Button

The Reset button for the AP1130 is located on the right side panel. To access the Reset button, use a Phillips screwdriver to remove the cover screw. Use a paper clip or similar tool to hold the Reset button in between 1 and 5 seconds to reboot the device. Hold the button in for 5 seconds or more to return the device to the factory default settings. When you have completed the reset, reinstall the cover screw firmly to close the Reset button access and restore the device to its weatherproof state.

Antenna Alignment Buzzer

The AP1130 has an audible buzzer signal to help you align antennas for the best coverage. By default, the buzzer is enabled and will beep with changing frequency based on the signal strengths that are determined during the alignment process. The better the signal strength, the more frequent the beeps.

You can enable, configure, and disable the buzzer using the following CLI command through a Console connection.

CLI Syntax:

exec antenna-alignment interface <wifix> peer <mac_addr> [count [numbers]] [interval [numbers]] [text-size [numbers]] [beep [static]|[adaptive]|[disable]]

AP1130 LEDs

The AP1130 has a Status LED on the bottom of the unit, and a Signal Strength LED and three connectivity LEDs on the right panel. The LED colors and what they indicate are described below.

Status LED

Signal Strength LED:

5GHz LED:

2.4 GHz LED:

Eth LED:

PoE and Ethernet Protection

In most cases, you can connect an Ethernet cable directly from the AP1130 to a PoE-enabled switch or to a PoE injector (AH-ACC-INJ-30W-XX) inside the building. In some cases, you might need to install an outdoor waterproof PoE injector, available separately (AH-ACC-OINJ-30W).

The AP1130 and outdoor PoE injectors have built-in surge protection to guard against lightning strikes. However, the network where the Ethernet cable enters the building requires protection as well. To prevent the indoor network from power surges caused by lightning, place an Ethernet protector (AH-ACC-1G-ETH-PROT) inline between the AP and the rest of the network.

  1. Attach the Ethernet protection device to the building at the entry point of the shielded Ethernet cable from the AP1130.
  2. Make the following connections, as shown in the illustration below:

Connect to the Network and to HiveManager

The final step to the installation is to connect the AP1130 to the network so that it can form a CAPWAP (Control and Provisioning of Wireless Access Points) connection to ExtremeCloud IQ.

After you connect the AP1130 to an Ethernet network and power it on, it automatically attempts to get network settings through DHCP and contact ExtremeCloud IQ. The process typically takes about five minutes to complete. When you see the AP1130 listed on the Manage > Access Points > APs page in the ExtremeCloud IQ GUI, the initial setup is complete and you can begin managing the device.

Hardware Components

The AP1130 hardware components are identified in this illustration, and in the descriptions that follow.

Hardware Specifications

Understanding the range of specifications for the AP1130 is necessary for optimal deployment and device operation. The following specifications describe the hardware components, PoE electrical requirements, and the environmental ranges in which the device can operate.

Device Specifications

Power Specifications

  • PoE: 12.6 to 15.3 W
  • DC: 10.86 to 13.05 W

Environmental Specifications

Regulatory Compliance Statements

The regulatory compliance statements in this section apply to Extreme NetworksAP1130 devices.

Compliance Statement - Europe

EU Declaration of Conformity

View this information online at www.aerohive.com/support/regulatory-compliance

Extreme Networks, Inc. declares that this device complies with the essential requirements of the Radio Eqiupment Directive 2014/53/EC.

EU Radio Frequency and Power Levels

This product supports the following radio frequencies and power levels in the EU version:

Bulgarian [български]: Този продукт поддържа следните радиочестоти и нива на мощност във версията на ЕС:

Croatian [hrvatski]: Ovaj proizvod podržava sljedeće radijske frekvencije i razinu snage u verziji EU:

Česky [Czech]: [Tento produkt podporuje následující rádiové frekvence a úrovně výkonu ve verzi EU:

Danish [Dansk]: Dette produkt understøtter følgende radiofrekvenser og strømniveauer i EU-versionen:

Dutch [Nederland]: Dit product ondersteunt de volgende radiofrequenties en vermogensniveaus in de EU-versie:

English: This product supports the following radio frequencies and power levels in the EU version:

Estonian [Eesti]: See toode toetab järgmisi raadiosagedusi ja võimsuse taseme ELis versioon:

Finnish [Suomi]: Tämä tuote tukee seuraavia radiotaajuuksia ja tehoja EU-versiossa:

French [Français]: Ce produit prend en charge les fréquences radio et les niveaux de puissance suivants dans la version EU:

German [Deutsch]: Dieses Produkt unterstützt die folgenden Funkfrequenzen und Leistungsstufen in der EU-Version:

Greek [Ελληνική] Αυτό το προϊόν υποστηρίζει τις ακόλουθες ραδιοσυχνότητες και επίπεδα ισχύος στην έκδοση της ΕΕ:

Hungarian [Magyar]: Ez a termék a következő rádiófrekvenciákat és teljesítményszinteket támogatja az EU verziójában :

Italian [Italiano]: Questo prodotto supporta le seguenti frequenze radio e livelli di potenza nella versione UE:

Latvian [Latviski]: Šis produkts atbalsta šādus radio frekvences un jaudas līmeni ES versiju:

Lithuanian [Lietuvių]: Šis produktas palaiko šiuos radijo dažnius ir galios lygį ES versija:

Maltese [Malti]: Dan il-prodott jappoġġja l-frekwenzi tar-radju li ġejjin u l-livelli ta 'enerġija fil-verżjoni UE:

Pollish [Polski]: Ten produkt obsługuje następujące częstotliwości radiowe i poziomy mocy w wersji unijnej:

Portuguese [Português]: Este produto suporta as seguintes frequências de rádio e níveis de potência na versão UE:

Romanian [Romania]: This product supports the following radio frequencies and power levels in the EU version

Slovak [Slovensky]:Tento produkt podporuje nasledujúce rádiové frekvencie a úrovne napájania vo verzii EÚ:

Slovenian [Slovenija]: Ta izdelek podpira te radijske frekvence in ravni moči v različici EU:

Spanish [Español]: Este producto admite las siguientes frecuencias de radio y niveles de potencia en la versión de la UE:

Swedish [Sverige]: Denna produkt stöder följande radiofrekvenser och effektnivåer i EU-versionen:

UK: This product supports the following radio frequencies and power levels in the UK version:

EU Radiation Warning Statement

To meet radiation exposure requirements, these devices should be installed at a minimum distance of 15.75" (40 cm) from people or animals.

Restrictions: 5150-5250 MHz for indoor use only.

Bulgarian [български]: За да отговарят на изискванията за излагане на радиация, тези устройства трябва да бъдат инсталирани на минимално разстояние от 40 см от хората или животните.

Ограничения: 5150-5250 MHz само за вътрешна употреба.

Croatian [hrvatski]: Da bi zadovoljili zahtjeve izloženosti zračenju, ti uređaji trebaju biti instalirani na minimalnoj udaljenosti od 40 cm od ljudi ili životinja.

Ograničenja: 5150-5250 MHz samo za unutarnju uporabu.

Czech [Česky]: Aby byly splněny požadavky na ozáření, měly by být tato zařízení instalována v minimální vzdálenosti 40 cm od lidí nebo zvířat.

Omezení: 5150-5250 MHz pouze pro vnitřní použití.

Danish [Dansk]: For at opfylde kravene til strålingseksponering skal disse enheder installeres i mindst 15.75" (40 cm) afstand fra mennesker eller dyr.

Restriktioner: 5150-5250 MHz kun til indendørs brug.

Dutch [Nederland]: Om aan stralingsblootstelling te voldoen, dienen deze apparaten op een minimumafstand van 15.75" (40 cm) van mensen of dieren te worden geïnstalleerd.

Beperkingen: 5150-5250 MHz alleen voor gebruik binnenshuis.

English: To meet radiation exposure requirements, these devices should be installed at a minimum distance of 15.75" (40 cm) from people or animals.

Restrictions: 5150-5250 MHz for indoor use only.

Estonian [Eesti]: Et rahuldada kiirituse nõuetele, need seadmed tuleb paigaldada minimaalselt 15.75" (40 cm) inimestelt või loomadelt.

Piirangud: 5150-5250 MHz sisetingimustele.

Finnish [Suomi]: Säteilytysvaatimusten täyttämiseksi nämä laitteet on asennettava vähintään 15.75" (40 cm) etäisyydelle ihmisistä tai eläimistä.

Rajoitukset: 5150-5250 MHz vain sisäkäyttöön.

French [Français]: Pour répondre aux exigences d'exposition aux rayonnements, ces appareils devraient être installés à une distance minimale de 15.75" (40 cm) des personnes ou des animaux.

Restrictions: 5150-5250 MHz pour usage intérieur seulement.

German [Deutsch]: Um die Anforderungen an die Strahlenbelastung zu erfüllen, sollten diese Geräte in einem Abstand von 15.75" (40 cm) von Personen oder Tieren installiert werden.

Einschränkungen: 5150-5250 MHz nur für den Innenbereich.

Greek [Ελληνική]: Για την κάλυψη των απαιτήσεων έκθεσης σε ακτινοβολία, οι συσκευές αυτές πρέπει να τοποθετούνται σε απόσταση τουλάχιστον 40 cm από ανθρώπους ή ζώα.

Περιορισμοί: 5150-5250 MHz μόνο για εσωτερική χρήση.

Hungarian [Magyar]: A sugárterhelési követelmények teljesítése érdekében ezeket az eszközöket legalább 15.75" (40 cm) távolságra kell felszerelni az emberek vagy az állatoktól.

Korlátozások: 5150-5250 MHz csak beltéri használatra.

Italian [Italiano]: Per soddisfare i requisiti di esposizione alle radiazioni, questi dispositivi devono essere installati ad una distanza minima di 40 cm da persone o animali.

Restrizioni: 5150-5250 MHz solo per uso interno.

Latvian [Latviski]: Lai apmierinātu starojuma iedarbības prasībām, šīs ierīces ir uzstādītas pie minimālo attālumu 15.75" (40 cm) no cilvēkiem vai dzīvniekiem.

Ierobežojumi: 5150-5250 MHz izmantot tikai telpās.

Lithuanian [Lietuvių]: Siekiant patenkinti SPINDULIAVIMĄ reikalavimus, šie įtaisai turi būti įrengiami ne arčiau kaip 15.75" (40 cm) nuo žmonių ar gyvūnų.

Apribojimai: 5150-5250 MHz naudoti tik patalpose.

Maltese [Malti]: Biex jilħqu l-ħtiġiet ta 'espożizzjoni tar-radjazzjoni, dawn il-mezzi għandhom jiġu installati f'distanza minima ta' 15.75" (40 cm) minn nies jew annimali.

Restrizzjonijiet: MHz 5150-5250 għall-użu fuq ġewwa biss.

Polish [Polski]: Aby spełnić wymagania dotyczące narażenia na promieniowanie, urządzenia te powinny być instalowane w odległości minimum 15.75" (40 cm) od ludzi lub zwierząt.

Ograniczenia: 5150-5250 MHz tylko do użytku wewnętrznego.

Portuguese [Português]: Para atender aos requisitos de exposição à radiação, esses dispositivos devem ser instalados a uma distância mínima de 32 cm (12.6") de pessoas ou animais.

Restrições: 5150-5250 MHz para uso interno apenas.

Romanian [Romania]: Pentru a îndeplini cerințele de expunere la radiații, aceste dispozitive ar trebui instalate la o distanță minimă de 40 cm de la oameni sau animale.

Restricții: 5150-5250 MHz numai pentru uz intern.

Slovak [Slovensky]: Ak chcete splniť požiadavky na vystavenie žiareniu, mali by byť tieto zariadenia inštalované v minimálnej vzdialenosti od ľudí alebo zvierat od minimálnej vzdialenosti 40 cm.

Obmedzenia: 5150-5250 MHz iba pre vnútorné použitie.

Slovenian [Slovenija]: Da bi zadovoljili zahteve izpostavljenosti sevanja, morajo biti te naprave nameščene na razdalji najmanj 15.75" (40 cm) iz ljudi ali živali.

Omejitve: 5150-5250 MHz samo za uporabo v zaprtih prostorih.

Spanish [Español]: Para cumplir con los requisitos de exposición a la radiación, estos dispositivos deben instalarse a una distancia mínima de 15.75" (40 cm) de personas o animales.

Restricciones: 5150-5250 MHz sólo para uso en interiores.

Swedish [Sverige]: För att uppfylla kraven på strålningsexponering bör dessa enheter installeras på minst 15.75" (40 cm) från människor eller djur.

Restriktioner: 5150-5250 MHz endast för inomhusbruk.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 15.75" (40 cm) between the radiator and people or animals.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Country Code selection feature to be disabled for products marketed to the US/CANADA.

Brazil Statement

Este equipamento não tem direito à proteção contra inteferência prejudicial e não pode causar interferência em sistemas devidamente autorizados.

Mexico Statement

La operación de este equipo está sujeta a las siguientes dos condiciones

(1) es posible que este equipo o dispositivo no cause interferencia perjudicial y

(2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada.

The operation of this equipment is subject to the following two conditions:

(1) it is possible that this equipment or device does not cause disruptive interference and

(2) this equipment or device must accept any interference, including interference that may cause undesired operation).

Desmontable Antenas:

Este equipo ha sido diseñado para operar con las antenas que enseguida se enlistan y para una ganancia máxima de antena de [x] dB. El uso con este equipo de antenas no incluidas en esta lista o que tengan una ganancia mayor que [x] dB quedan prohibidas. La impedancia requerida de la antena es de 50 ohms.

This equipment has been designed to operate with the antennas listed next and for a maximum antenna gain as listed. The use with this equipment of antennas not included in this list or with a gain above the maximum dB listed is prohibited. The required antenna impedance is 50 ohms.

Antenas Soportado:

AHDL-ACC-1130-ANT-2G (5dB ganancia)

AHDL-ACC-1130-ANT-5G (5dB ganancia)

AHDL-ACC-1130-ANT-KIT 2x2.4Ghz (5dB ganancia) y 2x5Ghz (5dB ganancia)

AHDL-ACC-1130-ANT-18 5Ghz (18-dB ganancia)

AHDL-ACC-1130-ANT-SEC (5dBi ganancia)

Industry Canada Statement:

This device complies with Industry Canada license-exempt RSS standards. Operation is subject to the following two conditions:

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :

Caution:

(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;

Avertissement:

(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 40 cm between the radiator and people or animals.

Déclaration d'exposition aux radiations:

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 40 cm de distance entre la source de rayonnement et des personnes ou des animaux.

Complies with IMDA standards.

Taiwan Compliance Information

Extreme AP1130

第十二條→經型式認證合格之低功率射頻電機，非經許可，公司，商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。

第十四條→低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。

前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。



在 5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用。

無線資訊傳設備的製造廠商應確保頻率穩定性，如依製造廠商使用手冊上所述正常操作，發射的信號應維持於操作頻帶中。

Taiwan MPE Warning

電磁波曝露量MPE標準值(MPE) 1mW/cm2，送測產品實值為0.734 mW/cm2

Copyright © 2020 Extreme Networks. All rights reserved. Published March 2020.
