Configuring User Subnets
User Subnets can be used for Application Visibility and for Application
Control, so as to identify specific hosts, servers or subnets on which measurement and control are required. They can be used as filters
in the Applications and Application Groups.
Note: User subnets are optional. Only create them in case of specific subnets or hosts.
|
1
|
In the Application provisioning Toolbar, select  User subnets. |
The User subnets list window is displayed
(it is empty by default).
|
2
|

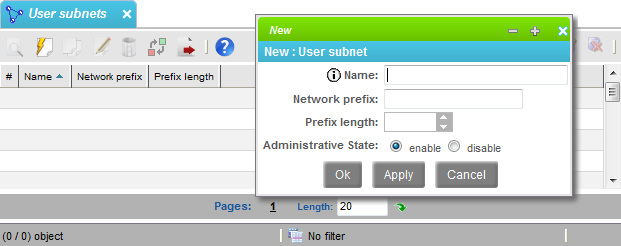

By clicking on the New button  ,
the creation window of a new User subnet is displayed. |
It contains the following input fields and check boxes:
|
•
|
Name: string of characters
used to identify the user subnet |
|
•
|
Network prefix: user subnet
prefix |
|
•
|
Prefix length: prefix length of the user subnet |
|
•
|
Enable: the user subnet is taken
into account |
|
•
|
Disable: the user subnet is not
taken into account |
