Scripts
In the System provisioning toolbar, select
Scripts.

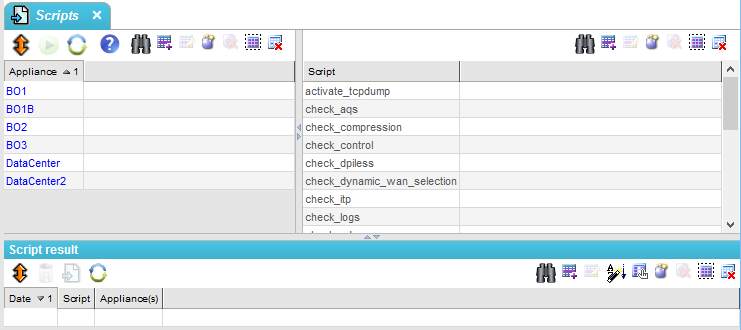

The following window is displayed:
The window displays the following input fields:
|
•
|
Appliance: list of all the Appliances for the Customer |
|
•
|
Script: list of the available
scripts. These scripts are in the directory ~/ipboss/server/scripts |
(Select
all): selects all the Appliances
(Launch):
to launch the script on all the selected Appliances. A confirmation window is displayed: click OK. Depending on the
number of selected Appliances, a message
informs you that it may take a long time... .
(Refresh):
refreshes the view
(Help):
opens a contextual Help window
The Execution script result frame displays the scripts
being launched, and allows downloading and deleting them:
|
•
|
Date: when the scripts
were launched |
|
•
|
Script: name of the scripts
that were launched |
|
•
|
Appliance(s): Appliances that ran the scripts |
(Select
all): selects all the script results
(Delete):
deletes the selected script results (the data will be deleted from the server)
(Download
script result): allows downloading a zip file with the selected script results
and other information (see below)
(Refresh):
refreshes the view
The zip file that can be downloaded is called ExecutionScriptResult.zip
and has the following structure:
|
•
|
root: one <yymmdd-hhmm> folder by selected script result, where
yymmdd-hhmm are the date and time when the scripts were launched. |
The root folder has three subfolders, containing five files:
__active__.ipmconf: current configuration at the Customer level
ip_boss_00<X>.log: log file at the Customer level
<alias><ip|e's IP address>.ipmres: script result in itself
<script name>.ipmscp:
launched script (encrypted file)
ipengine.txt: list of
dumped Appliances (alias+@ip)
The user can send this zip file (by E-mail or FTP) to Extreme Networks Support.
Different script files are available. The main ones are :
|
•
|
default: dumps information
from the Appliance, |
|
•
|
flows: dumps all the flows
crossing the Appliance, |
|
•
|
check_visibility: dumps information
about the Application Visibility agent, |
|
•
|
check_control: dumps information
about the Application Control agent, |
|
•
|
check_compression: dumps information
about the Compression agent, |
|
•
|
check_dynamic_wan_selection: dumps information
about the Dynamic WAN Selection agent, |
|
•
|
check_itp: dumps information
about the Time synchronization agent, |
|
•
|
check_sdwan: dumps information about the SD-WAN agent, |
|
•
|
restart_visibility: restarts
the Application Visibility agent, |
|
•
|
restart_control: restarts
the Application Control agent, |
|
•
|
restart_compression: restarts
the Compression agent, |
|
•
|
restart_itp: restarts the Time synchronization agent, |
|
•
|
process: dumps information
about the running processes. |
