A3 Graphical User Interface

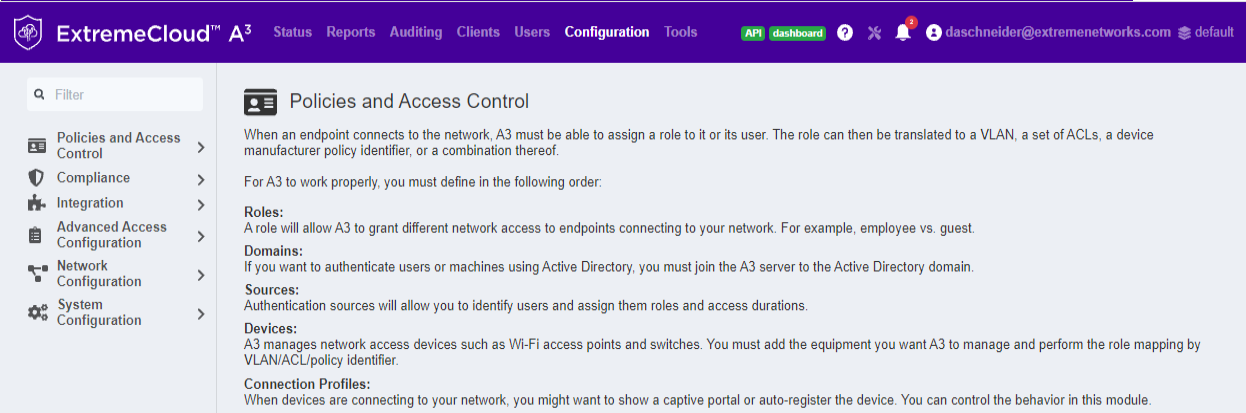

The A3 graphical user interface (GUI) is organized as shown in the figure below:

Seven major topics are organized across the top, plus four icons:

• Status - detailed real-time data regarding A3 operation.
• Reports - a wide variety of reports on client, connections, accounting, and authentication.
• Auditing - the audit logs for configured items.
• Clients - the devices and clients viewed by A3.
• Users - the list of users known to A3.
• Configuration - configuration of all A3 elements.
• Tools Overview - a set of diagnostic tools.

• - access to this help system and other resources.
• Perform Tasks - performs assorted maintenance tasks, including software update.
• Messages - if a number dispalys above the bell icon, select the icon to see any important messages.
• User Tasks - manages A3 licenses and administrative logout/login.

Most of the A3 pages are tables of configurable items or logged events. The format and usage of those pages is discussed in General GUI Usage.
