WLAN Mapping / Mesh Mapping

Administrators can assign each WLAN its own BSSID. If using a single-radio access point, there are 8 BSSIDs available. If using a dual-radio access point there are 8 BSSIDs for the 802.11b/g/n radio and 8 BSSIDs for the 802.11a/n radio.

To set a radio's WLAN mapping configuration:

1. Select Configuration > Profiles > Interface.

2. Expand the Interface menu to display its submenu options.

3. Select Radios.

4. If required, select a radio configuration and select the Edit button to modify its configuration.

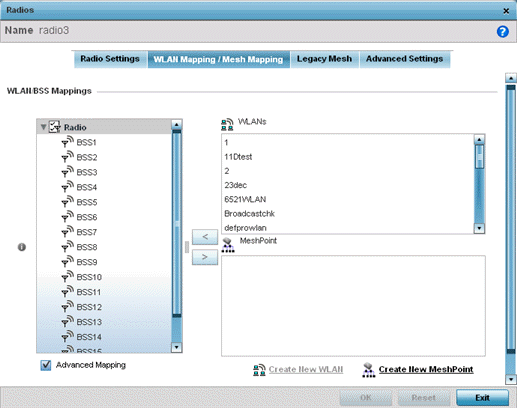

5. Select the WLAN Mapping tab.



6. Refer to the WLAN/BSS Mappings field to set WLAN BSSID assignments for an existing access point deployment.

7. Select Advanced Mapping to enable WLAN mapping to a specific BSS ID.

8. Select OK to save the changes to the WLAN Mapping. Select Reset to revert to the last saved configuration.
