Alarm Notifications Webhook Configurations

The Extreme AirDefense Essentials Settings, Alarm Notifications button provides a Webhook Configurations settings pane to configure push notifications for enabled alarms.

A web server or service must be configured to receive the data. This web server can then pass on the received data to third-party application data processors for further action, or store the data locally.

From Extreme AirDefense Essentials, select to display the Settings screen.

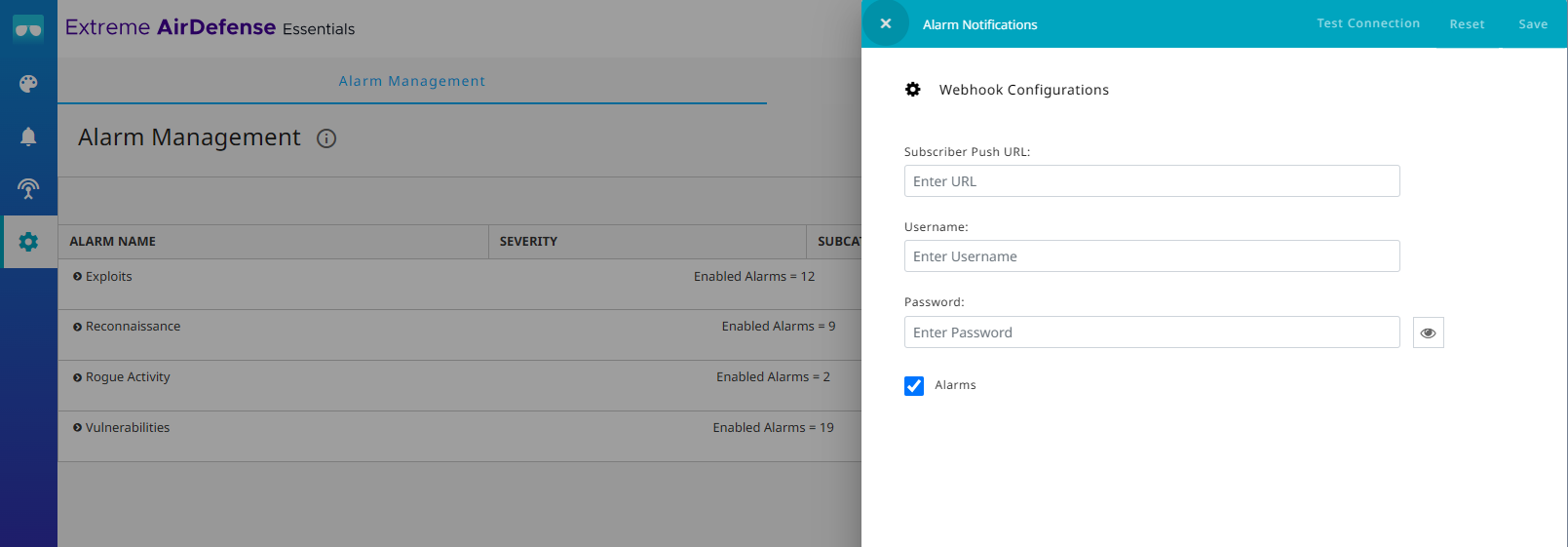

Select the Alarm Notifications button to display the Webhook Configurations settings pane.

Provide the following values to configure the Alarm Notifications Webhook Configurations settings:

Subscriber Push URL
Configure the remote web server URL where alarms notifications are transferred in real-time.
Note
The web server must listen on one of the standard ports, 443 (https) or 80 (http). Extreme AirDefense Essentials does not support web servers listening on ports other than these two ports.

Username
Set the user name valid for accessing the remote web server.
Password
Set the password for the above user name.
Alarms
Select to push enabled alarms to the remote web server in real-time.
Select Save to save the changes made to the Subscriber Settings parameters.
At any time, select the Reset button to revert the changes made to the subscriber settings parameters.
Test the connection.
Select Test Connection to test the web server connection. The test also detects and mitigates a blocked tenant. If connection status is successful, blocked tenants are released and Extreme AirDefense Essentials begins sending notifications.
