Hotspot WBA OpenRoaming

WBA OpenRoaming provides users with roaming access to Wi-Fi hotspots without having to register with different operators or enter login credentials each time. The Wi-Fi roaming standard combines a federation of network providers and identity providers, enabling users to join any compliant network through a federation member. Authentication is achieved through the user‘s identity provider when the provider is a federation member. All federation members support the WBA PKI.

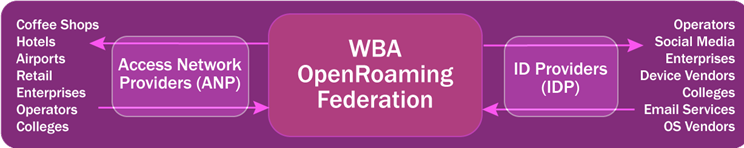

Illustration of the interaction between network providers and identity providers in WBA OpenRoaming.

The WBA OpenRoaming is based on the following elements:

Hotspot 2.0
DNS Discovery
WBA OpenRoaming PKI
RADSEC

The OpenRoaming policy offers the following:

Accepts users from any ID provider
Free roaming. The service provider does not charge the roaming subscriber for Wi-Fi access
QoS on a best effort basis.
The user identity can remain anonymous. The ID provider does not share the user's identity with the service provider.

Note

RadSec proxy AP election relies on APs sharing compatible software support and SSID profile configuration. Mixing APs that do not all support OpenRoaming, or assigning different RadSec‑enabled SSID sets to APs that share the same profile in the same management subnet, can result in a proxy AP that cannot serve all OpenRoaming SSIDs correctly. To avoid issues, keep APs with different RadSec/OpenRoaming requirements in separate network policies and profiles.
