AP150W Hardware User Guide

Safety Guidelines

The information in this section applies to AP150W devices.

The following safety icons are used in these guidelines to identify the type of precaution:

	This icon indicates a general caution. Failure to comply with a caution notification can result in damage to equipment.
	This icon indicates an electrical caution. Failure to comply with an electrical notification can result in serious injury or death, and extensive damage to equipment.
The following table lists the safety precautions you should follow when installing your AP150W devices.
	Extreme Networks devices must be installed by a professional installer who is certified to install these types of devices and to ensure that they are properly grounded and meet applicable local and national electrical codes.
	These devices are intended for indoor use only.
	Do not install the device in an environment where the operating ambient temperature might exceed the recommended ranges.
	Electrical equipment generates heat. Ambient air temperature may not be adequate to cool equipment to acceptable operating temperatures without adequate circulation. Be sure that the room where you install your device has adequate air circulation.
	Changes or modifications made to this device that are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
	Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs when electronic components are improperly handled and can result in complete or intermittent failures. Be sure to follow ESD-prevention procedures when handling electronic components.
	Never assume that power is disconnected from a circuit; always check the circuit.
	To meet radiation exposure requirements in all countries, these devices should be installed at a minimum distance of 9.05" (23 cm) from people and animals. See individual country warning for country-specific distances, if required.
	All Ethernet and RS232 (console) ports and the cables attached to them are designed for intra-building connection to other equipment. Do not connect these ports directly to wiring that exits the building where this appliance is located

Install the AP150W

The following sections describe how to install your AP150W devices, connect them to the network, and start managing them in ExtremeCloud IQ.

Shipping Carton Contents

The AP150W access point shipping carton contains the following items:

• AP150W chassis
• Generic QuickStart Card
• Wall mounting bracket and mounting hardware packet containing four Phillips screws and one Torx screw.
• Ethernet cable

Video: Unboxing the AP150W Wallplate Access Point

For mounting instructions, see "Mount the AP150W ".

For information about securing the device, see below.

For information about the status indicator light, see "Status Light".

Mount the AP150W to a Wall

Use the following instructions to mount the AP150W directly to an Ethernet cable receptacle box in a wall.

1. The mounting bracket has holes for several types of wall receptacles. The holes are labeled as shown below: UK/EU, US/DUAL, and US/SINGLE.

1. Remove the wall outlet covering.
2. Attach the wall bracket to the wall with the large opening in the bracket aligned to the hole in the wall. Use at least two mounting screws to mount the bracket. The illustration below shows a bracket for a US/SINGLE wall socket.

1. If necessary, use the short Ethernet cable that ships with the device to connect the Eth0 port on the back of your device to the jack in the wall.

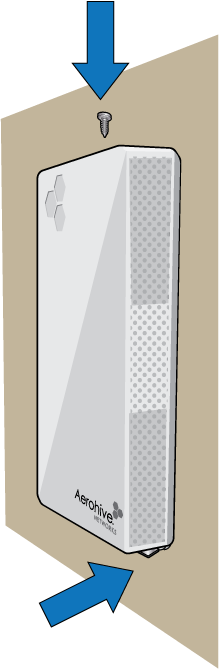

1. Attach the device to the bracket by inserting the two tabs on the bracket into the holes in the back of the device, and the flange on top of the bracket onto the opening at the top of the device back panel. Push down on the device to seat it on the bracket, as shown in the illustration. The device will rest on the two flanges at the bottom of the bracket.

1. Install a screw in the top of the device to secure the unit to the top flange on the bracket.

Video: Installing the AP150W Wallplate Access Point

Mount the AP150W on a Desktop

You can install your AP150W on a desktop by simply connecting the Ethernet cable. For a more secure installation, use the desktop stand (AH-ACC-DSKSTD, sold separately). See AP150W Desktop Bracket Installation Instructions.

Connect the AP150W

Follow these steps to connect your AP150W to power and to the network.

1. Connect a standard RJ45 Ethernet cable from ETH0 on the AP to a switch that provides PoE power, or use a PoE injector (see"Ethernet Ports").
2. After the AP receives power, it automatically tries to get network settings and contact ExtremeCloud IQ. This process takes about five minutes. When you see the AP listed on the Devices page in the Manage section of the ExtremeCloud IQ GUI, the initial setup is complete and you can begin managing the AP with ExtremeCloud IQ.

Hardware Components

You can see the hardware components of the AP150W in the illustration below and read about them in the sections that follow.

Component Descriptions

Status Light

The status light conveys operational states for system power, firmware updates, Ethernet and wireless interface activity, and major alarms. The AP150W has a device status LED and an Ethernet port status LED.

The device status LED is on the panel to the right of the Ethernet ports. The colors of this LED indicate the following states of activity:

You can adjust the brightness level from bright (the default) to soft to dim, or turn it off completely in ExtremeCloud IQ. Navigate to Configure > Network Policy > Additional Settings > Network Service > Management Options. Turn Management Options on and scroll down to the System Settings section. Use the LED brightness drop-down to select the brightness level that you want.

Note

When you change the brightness setting here, the new setting will apply to all devices under this network policy. To change the LED brightness for a single device, establish a console connection and use the CLI command.

For devices running HM Classic, you can set the LEDs for all APs on your network to blink or remain steady. Navigate to Home > Device Management Settings > LED Mode.

Ethernet Ports

The AP150W has the following RJ45 10/100/1000Base-T/TX Ethernet ports:

Power Options

The AP150W can receive 802.3af and 802.3at PoE and PoE+ power through the Eth0 and Eth1 ports. With 802.3af, there is no PoE budget support on the downlink port. With 802.3af the PoE budget on the downlink port is 12 W.

The AP150W can also be powered using a 48VDC, 0.75 A power supply (sold as an accessory). Using this method, the PoE budget on the downlink port is 15.4 W. The power supply is available in the following formats from Extreme Networks:

• 36 W Level 6 power supply with AU power plug (AH-ACC-PWR-36WL6-AU)
• 36 W Level 6 power supply with EU power plug (AH-ACC-PWR-36WL6-EU)
• 36 W Level 6 power supply with UK power plug (AH-ACC-PWR-36WL6-UK)
• 36 W level 6 power supply with US power plug (AH-ACC-PWR-36WL6-US)

Antennas

The AP150W has three internal antennas:

• Two dual-band antennas for 2.4 GHz and 5 GHz WiFi
• One dual-band antenna for 5GHz WiFi and Bluetooth BLE

Console Port

Through the Console port, you can make a serial connection between your management system and the AP. The management station from which you connect to the device using the Console port must have a VT100 emulation program, such as Tera Term Pro© (a free terminal emulator) or Hilgraeve HyperTerminal® (provided with Windows® operating systems from XP forward). The serial connection settings are: 9600 bits per second, 8 data bits, no parity, 1 stop bit, no flow control.

The pin-to-signal mapping for the Console port is shown in Extreme Device Pin Assignments.

Hardware Specifications

The following specifications describe the physical features and hardware components, PoE electrical requirements, and the temperature and humidity ranges in which the devices can operate.

Device Specifications

• Chassis dimensions: 4.2" W x 1.1" H x 6.9"D (105.9 mm x 29.2 mm x 175 mm)
• Weight: Device - 0.86 lb (0.39 kg), wall bracket - 0.26 lb (0.1 kg)
• Antennas:

• Interfaces:

• AC power input connector (48 VDC, 0.75 A power supply sold separately)

Antenna Gain

• 2.4 GHz: 2.7 dBi gain
• 5 GHz: 5.6 dBi gain

Power Specifications

• IEEE 802.3af PoE input: Typical 11.3 W, maximum 12.4 W
• IEEE 802.3at PoE input: Typical 23.6 W, maximum 24.9 W
• 802.3af PoE-capable Gigabit Ethernet port

• PoE nominal input voltages: 48

Environmental Specifications

• Operating temperature: 32° to 104° F (0° to 40° C)

• Storage temperature: -40° to 158° F (-40° to 70° C)

• Relative Humidity: 5 to 95% RH (noncondensing)

Regulatory Compliance Statements

The regulatory compliance statements in this section apply to Extreme NetworksAP150W devices.

Japan Indoor Use

Note

For Japan, the AP150W is restricted for indoor use in the 5150-5350 MHz band only.

Compliance Statement - Europe

EU Declaration of Conformity

View this information online at www.aerohive.com/support/regulatory-compliance

Extreme Networks, Inc. declares that this device complies with the essential requirements of the Radio Eqiupment Directive 2014/53/EC.

• Bulgarian [български]: [Extreme Networks] С настоящото [Extreme Networks] декларира, че този тип радиосъоръжение [AP150W] е в съответствие с Директива 2014/53/ЕС.
• Croatian [hrvatski]: [Extreme Networks] ovime izjavljuje da je radijska oprema tipa [AP150W] u skladu s Direktivom 2014/53/EU.
• Czech [Česky]: [Extreme Networks] Tímto [jméno výrobce] prohlašuje, že typ rádiového zařízení [AP150W] je v souladu se směrnicí 2014/53/EU.
• Danish [Dansk]: Hermed erklærer [Extreme Networks], at radioudstyrstypen [AP150W] er i overensstemmelse med direktiv 2014/53/EU..
• Dutch [Nederland]Hierbij verklaar ik, [Extreme Networks], dat het type radioapparatuur [AP150W] conform is met Richtlijn 2014/53/EU.
• English: Hereby, [Extreme Networks], declares that this [ AP150W] is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EC.
• Estonian [Eesti]: Käesolevaga deklareerib [Extreme Networks], et käesolev raadioseadme tüüp [AP150W] vastab direktiivi 2014/53/EL nõuetele.
• Finnish [Suomi]: [Extreme Networks] vakuuttaa, että radiolaitetyyppi [AP150W] on direktiivin 2014/53/EU mukainen..
• French [Français]: Le soussigné, [Extreme Networks], déclare que l'équipement radioélectrique du type [AP150W] est conforme à la directive 2014/53/UE.
• German [Deutsch]: Hiermit erklärt [Extreme Networks], dass der Funkanlagentyp [AP150W] der Richtlinie 2014/53/EU entspricht.
• Greek [Ελληνική]: ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [Extreme Networks] ΔΗΛΩΝΕΙ ΟΤΙ [ AP150W] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/EC.
• Hungarian [Magyar]: [Extreme Networks] igazolja, hogy a [AP150W] típusú rádióberendezés megfelel a 2014/53/EU irányelvnek.

• Italian [Italiano]: Il fabbricante, [Extreme Networks], dichiara che il tipo di apparecchiatura radio [AP150W] è conforme alla direttiva 2014/53/UE.
• Latvian [Latviski]: Ar šo [Extreme Networkss] deklarē, ka radioiekārta [AP150W] atbilst Direktīvai 2014/53/ES.
• Lithuanian [Lietuvių]: Aš, [Extreme Networks], patvirtinu, kad radijo įrenginių tipas [AP150Ws] atitinka Direktyvą 2014/53/ES.
• Maltese [Malti]: B'dan, [Extreme Networks], niddikjara li dan it-tip ta' tagħmir tar-radju [AP150W] huwa konformi mad-Direttiva 2014/53/UE.
• Polish [Polski]: [Extreme Networks] niniejszym oświadcza, że typ urządzenia radiowego [AP150W] jest zgodny z dyrektywą 2014/53/UE.
• Portuguese [Português]: O(a) abaixo assinado(a) [Extreme Networks] declara que o presente tipo de equipamento de rádio [AP150W] está em conformidade com a Diretiva 2014/53/UE.
• Romanian [Romania]: Prin prezenta, [Extreme Networks] declară că tipul de echipamente radio [AP150W] este în conformitate cu Directiva 2014/53/UE.
• Slovak [Slovensky]: [Extreme Networks] týmto vyhlasuje, že rádiové zariadenie typu [AP150W] je v súlade so smernicou 2014/53/EÚ.
• Slovenian [Slovenija]: [Extreme Networks] potrjuje, da je tip radijske opreme [AP150W] skladen z Direktivo 2014/53/EU.
• Spanish [Español]: Por la presente, [Extreme Networks] declara que el tipo de equipo radioeléctrico [AP150W] es conforme con la Directiva 2014/53/UE.
• Swedish [Sverige]: Härmed försäkrar [Extreme Networks] att denna typ av radioutrustning [AP150W] överensstämmer med direktiv 2014/53/EU.

EU Radio Frequency and Power Levels

This product supports the following radio frequencies and power levels in the EU version:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Bulgarian [български]: Този продукт поддържа следните радиочестоти и нива на мощност във версията на ЕС:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Croatian [hrvatski]: Ovaj proizvod podržava sljedeće radijske frekvencije i razinu snage u verziji EU:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Česky [Czech]: [Tento produkt podporuje následující rádiové frekvence a úrovně výkonu ve verzi EU:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Danish [Dansk]: Dette produkt understøtter følgende radiofrekvenser og strømniveauer i EU-versionen:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Dutch [Nederland]: Dit product ondersteunt de volgende radiofrequenties en vermogensniveaus in de EU-versie:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

English: This product supports the following radio frequencies and power levels in the EU version:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Estonian [Eesti]: See toode toetab järgmisi raadiosagedusi ja võimsuse taseme ELis versioon:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Finnish [Suomi]: Tämä tuote tukee seuraavia radiotaajuuksia ja tehoja EU-versiossa:

• 802.11b/g/n/ac, 2.4 GHz band: 2412-2472 MHz EIRP<20 dBm
• 802.11 a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5720 MHz EIRP<30 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

French [Français]: Ce produit prend en charge les fréquences radio et les niveaux de puissance suivants dans la version EU:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

German [Deutsch]: Dieses Produkt unterstützt die folgenden Funkfrequenzen und Leistungsstufen in der EU-Version:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Greek [Ελληνική] Αυτό το προϊόν υποστηρίζει τις ακόλουθες ραδιοσυχνότητες και επίπεδα ισχύος στην έκδοση της ΕΕ:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Hungarian [Magyar]: Ez a termék a következő rádiófrekvenciákat és teljesítményszinteket támogatja az EU verziójában :

• 802.11b/g/n/ac, 2.4 GHz band: 2412-2472 MHz EIRP<20 dBm
• 802.11 a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5720 MHz EIRP<30 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Italian [Italiano]: Questo prodotto supporta le seguenti frequenze radio e livelli di potenza nella versione UE:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11ac/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Latvian [Latviski]: Šis produkts atbalsta šādus radio frekvences un jaudas līmeni ES versiju:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Lithuanian [Lietuvių]: Šis produktas palaiko šiuos radijo dažnius ir galios lygį ES versija:

• 802.11b/g/n/ac, 2.4 GHz band: 2412-2472 MHz EIRP<20 dBm
• 802.11 a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5720 MHz EIRP<30 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Maltese [Malti]: Dan il-prodott jappoġġja l-frekwenzi tar-radju li ġejjin u l-livelli ta 'enerġija fil-verżjoni UE:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Pollish [Polski]: Ten produkt obsługuje następujące częstotliwości radiowe i poziomy mocy w wersji unijnej:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Portuguese [Português]: Este produto suporta as seguintes frequências de rádio e níveis de potência na versão UE:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Romanian [Romania]: This product supports the following radio frequencies and power levels in the EU version

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Slovak [Slovensky]:Tento produkt podporuje nasledujúce rádiové frekvencie a úrovne napájania vo verzii EÚ:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Slovenian [Slovenija]: Ta izdelek podpira te radijske frekvence in ravni moči v različici EU:

• 802.11b/g/n/ac, 2.4 GHz band: 2412-2472 MHz EIRP<20 dBm
• 802.11 a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5720 MHz EIRP<30 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Spanish [Español]: Este producto admite las siguientes frecuencias de radio y niveles de potencia en la versión de la UE:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

Swedish [Sverige]: Denna produkt stöder följande radiofrekvenser och effektnivåer i EU-versionen:

• 802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

UK: This product supports the following radio frequencies and power levels in the EU version:

• 802.11b/g/n/acn, 2.4 GHz band: 2400-2483.5 MHz EIRP<20 dBm
• 802.11a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5730 MHz EIRP<30 dBm, 5730-5850 MHz<23dBm
• BLE: 2402-2480 MHz EIRP<10 dBm

To meet radiation exposure requirements, these devices should be installed at a minimum distance of 11" (28 cm) from people or animals.

Restrictions: 5150-5250 MHz for indoor use only.

Bulgarian [български]: За да отговарят на изискванията за излагане на радиация, тези устройства трябва да бъдат инсталирани на минимално разстояние от 28 см от хората или животните.

Ограничения: 5150-5250 MHz само за вътрешна употреба.

Croatian [hrvatski]: Da bi zadovoljili zahtjeve izloženosti zračenju, ti uređaji trebaju biti instalirani na minimalnoj udaljenosti od 28 cm od ljudi ili životinja.

Ograničenja: 5150-5250 MHz samo za unutarnju uporabu.

Czech [Česky]: Aby byly splněny požadavky na ozáření, měly by být tato zařízení instalována v minimální vzdálenosti 28 cm od lidí nebo zvířat.

Omezení: 5150-5250 MHz pouze pro vnitřní použití.

Danish [Dansk]: For at opfylde kravene til strålingseksponering skal disse enheder installeres i mindst 11" (28 cm) afstand fra mennesker eller dyr.

Restriktioner: 5150-5250 MHz kun til indendørs brug.

Dutch [Nederland]: Om aan stralingsblootstelling te voldoen, dienen deze apparaten op een minimumafstand van 11" (28 cm) van mensen of dieren te worden geïnstalleerd.

Beperkingen: 5150-5250 MHz alleen voor gebruik binnenshuis.

English: To meet radiation exposure requirements, these devices should be installed at a minimum distance of 11" (28 cm) from people or animals.

Restrictions: 5150-5250 MHz for indoor use only.

Estonian [Eesti]: Et rahuldada kiirituse nõuetele, need seadmed tuleb paigaldada minimaalselt 11" (28 cm) inimestelt või loomadelt.

Piirangud: 5150-5250 MHz sisetingimustele.

Finnish [Suomi]: Säteilytysvaatimusten täyttämiseksi nämä laitteet on asennettava vähintään 11" (28 cm) etäisyydelle ihmisistä tai eläimistä.

Rajoitukset: 5150-5250 MHz vain sisäkäyttöön.

French [Français]: Pour répondre aux exigences d'exposition aux rayonnements, ces appareils devraient être installés à une distance minimale de 11" (28 cm) des personnes ou des animaux.

Restrictions: 5150-5250 MHz pour usage intérieur seulement.

German [Deutsch]: Um die Anforderungen an die Strahlenbelastung zu erfüllen, sollten diese Geräte in einem Abstand von 11" (28 cm) von Personen oder Tieren installiert werden.

Einschränkungen: 5150-5250 MHz nur für den Innenbereich.

Greek [Ελληνική]: Για την κάλυψη των απαιτήσεων έκθεσης σε ακτινοβολία, οι συσκευές αυτές πρέπει να τοποθετούνται σε απόσταση τουλάχιστον 28 cm από ανθρώπους ή ζώα.

Περιορισμοί: 5150-5250 MHz μόνο για εσωτερική χρήση.

Hungarian [Magyar]: A sugárterhelési követelmények teljesítése érdekében ezeket az eszközöket legalább 11" (28 cm) távolságra kell felszerelni az emberek vagy az állatoktól.

Korlátozások: 5150-5250 MHz csak beltéri használatra.

Italian [Italiano]: Per soddisfare i requisiti di esposizione alle radiazioni, questi dispositivi devono essere installati ad una distanza minima di 28 cm da persone o animali.

Restrizioni: 5150-5250 MHz solo per uso interno.

Latvian [Latviski]: Lai apmierinātu starojuma iedarbības prasībām, šīs ierīces ir uzstādītas pie minimālo attālumu 11" (28 cm) no cilvēkiem vai dzīvniekiem.

Ierobežojumi: 5150-5250 MHz izmantot tikai telpās.

Lithuanian [Lietuvių]: Siekiant patenkinti SPINDULIAVIMĄ reikalavimus, šie įtaisai turi būti įrengiami ne arčiau kaip 11" (28 cm) nuo žmonių ar gyvūnų.

Apribojimai: 5150-5250 MHz naudoti tik patalpose.

Maltese [Malti]: Biex jilħqu l-ħtiġiet ta 'espożizzjoni tar-radjazzjoni, dawn il-mezzi għandhom jiġu installati f'distanza minima ta' 11" (28 ċm) minn nies jew annimali.

Restrizzjonijiet: MHz 5150-5250 għall-użu fuq ġewwa biss.

Polish [Polski]: Aby spełnić wymagania dotyczące narażenia na promieniowanie, urządzenia te powinny być instalowane w odległości minimum 11" (28 cm) od ludzi lub zwierząt.

Ograniczenia: 5150-5250 MHz tylko do użytku wewnętrznego.

Portuguese [Português]: Para atender aos requisitos de exposição à radiação, esses dispositivos devem ser instalados a uma distância mínima de 28 cm (11") de pessoas ou animais.

Restrições: 5150-5250 MHz para uso interno apenas.

Romanian [Romania]: Pentru a îndeplini cerințele de expunere la radiații, aceste dispozitive ar trebui instalate la o distanță minimă de 28 cm de la oameni sau animale.

Restricții: 5150-5250 MHz numai pentru uz intern.

Slovak [Slovensky]: Ak chcete splniť požiadavky na vystavenie žiareniu, mali by byť tieto zariadenia inštalované v minimálnej vzdialenosti od ľudí alebo zvierat od minimálnej vzdialenosti 28 cm.

Obmedzenia: 5150-5250 MHz iba pre vnútorné použitie.

Slovenian [Slovenija]: Da bi zadovoljili zahteve izpostavljenosti sevanja, morajo biti te naprave nameščene na razdalji najmanj 11" (28 cm) iz ljudi ali živali.

Omejitve: 5150-5250 MHz samo za uporabo v zaprtih prostorih.

Spanish [Español]: Para cumplir con los requisitos de exposición a la radiación, estos dispositivos deben instalarse a una distancia mínima de 11" (28 cm) de personas o animales.

Restricciones: 5150-5250 MHz sólo para uso en interiores.

Swedish [Sverige]: För att uppfylla kraven på strålningsexponering bör dessa enheter installeras på minst 11" (28 cm) från människor eller djur.

Restriktioner: 5150-5250 MHz endast för inomhusbruk.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the antenna of the receiving devices.
• Increase the separation between this equipment and receiving equipment.
• Connect this equipment into an outlet on a circuit different from that to which the receiving equipment is connected.
• Consult the dealer or an experienced radio or TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 8" (20 cm) between the radiator and people or animals.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Country Code selection feature to be disabled for products marketed to the US/CANADA.

Este equipamento não tem direito à proteção contra inteferência prejudicial e não pode causar interferência em sistemas devidamente autorizados.

La operación de este equipo está sujeta a las siguientes dos condiciones

(1) es posible que este equipo o dispositivo no cause interferencia perjudicial y

(2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada.

The operation of this equipment is subject to the following two conditions:

(1) it is possible that this equipment or device does not cause disruptive interference and

(2) this equipment or device must accept any interference, including interference that may cause undesired operation).

This device complies with Industry Canada license-exempt RSS standards. Operation is subject to the following two conditions:

• This device may not cause interference, and
• This device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :

• l'appareil ne doit pas produire de brouillage, et
• l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Caution:

(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;

Avertissement:

(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;

Dynamic Frequency Selection (DFS):

Dynamic Frequency Selection (DFS) for devices operating in the bands 5250- 5350 MHz, 5470-5600 MHz and 5650-5725 MHz.

Sélection dynamique de fréquences (DFS):

Sélection dynamique de fréquences (DFS) pour les dispositifs fonctionnant dans les bandes 5250-5350 MHz, 5470-5600 MHz et 5650-5725 MHz.

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and people or animals.

Déclaration d'exposition aux radiations:

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et des personnes ou des animaux.

Taiwan Compliance Information

Extreme AP150W

第十二條→經型式認證合格之低功率射頻電機，非經許可，公司，商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。

第十四條→低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。

前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

在 5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用。

無線資訊傳設備的製造廠商應確保頻率穩定性，如依製造廠商使用手冊上所述正常操作，發射的信號應維持於操作頻帶中。

Taiwan MPE Warning

電磁波曝露量MPE標準值(MPE) 1mW/cm²，送測產品實值為0.75289 mW/cm² 20 cm.
