Radiation Patterns

Antenna radiation patterns are an important tool when you install your access point. Use this information to optimize your coverage, to reduce interference from other devices, and to ensure you comply with government regulations.

2.4 GHz Radiation Patterns

The following diagrams illustrate the radiation patterns for the AP4020 2GHz internal antenna.

Click to expand in new window
AP4020 2GHz - Vertical Radiation Pattern
AP4020 2GHz vertical radiation pattern with an AP in the middle of the diagram
Click to expand in new window
AP4020 2GHz - Horizontal Radiation Pattern
AP4020 2GHz horizontal radiation pattern with an AP in the middle of the diagram

5 GHz Radiation Patterns

The following diagrams illustrate the radiation patterns for the AP4020 5 GHz internal antenna.

Click to expand in new window
AP4020 5 GHz - Low Vertical Radiation Pattern
AP4020 5GHz low vertical radiation pattern with an AP in the middle of the diagram
Click to expand in new window
AP4020 5 GHz - Vertical Radiation Pattern
AP4020 5GHz vertical radiation pattern with an AP in the middle of the diagram
Click to expand in new window
AP4020 5 GHz - Low Horizontal Radiation Pattern
AP4020 5GHz low horizontal radiation pattern with an AP in the middle of the diagram
Click to expand in new window
AP4020 5 GHz - Horizontal Radiation Pattern
AP4020 5GHz horizontal radiation pattern with an AP in the middle of the diagram

6 GHz Radiation Patterns

The following diagrams illustrate the radiation patterns for the AP4020 6 GHz internal antenna.

Click to expand in new window

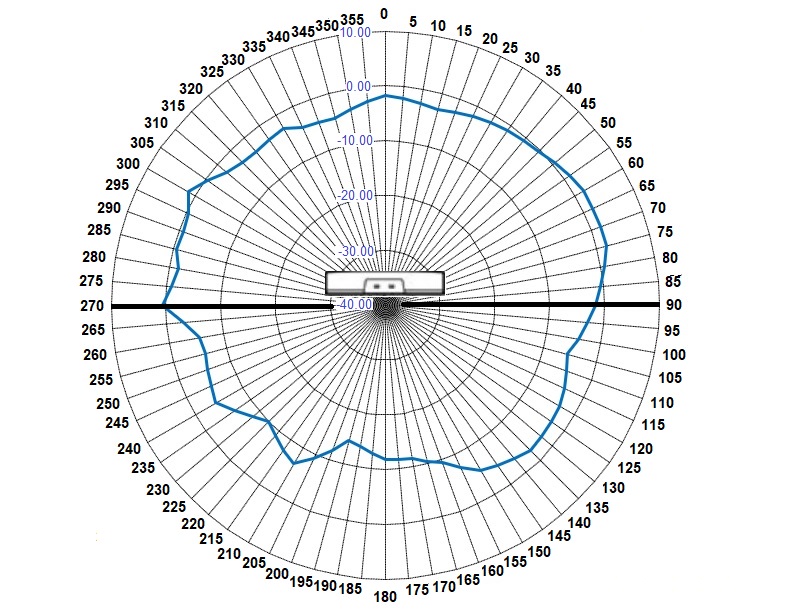

AP4020 6 GHz - Vertical Radiation Pattern
AP4020 6GHz vertical radiation pattern with an AP in the middle of the diagram
Click to expand in new window
AP4020 6 GHz - Horizontal Radiation Pattern
AP4020 6GHz horizontal radiation pattern with an AP in the middle of the diagram

BLE Radio 1 Radiation Patterns

The following diagrams illustrate the radiation patterns for the AP4020 BLE radio 1.

Click to expand in new window
AP4020 BLE Radio 1 - Vertical Radiation Pattern
AP4020 BLE Radio 1 vertical radiation pattern with an AP in the middle of the diagram
Click to expand in new window
AP4020 BLE Radio 1 - Horizontal Radiation Pattern
AP4020 BLE Radio 1 horizontal radiation pattern with an AP in the middle of the diagram

BLE Radio 2 Radiation Patterns

The following diagrams illustrate the radiation patterns for the AP4020 BLE radio 1.

Click to expand in new window
AP4020 BLE Radio 2 - Vertical Radiation Pattern
AP4020 BLE Radio 2 vertical radiation pattern with an AP in the middle of the diagram
Click to expand in new window
AP4020 BLE Radio 2 - Horizontal Radiation Pattern
AP4020 BLE Radio 2 horizontal radiation pattern with an AP in the middle of the diagram

Sensor Radiation Patterns

The following diagrams illustrate the radiation patterns for the AP4020 sensor.

Click to expand in new window

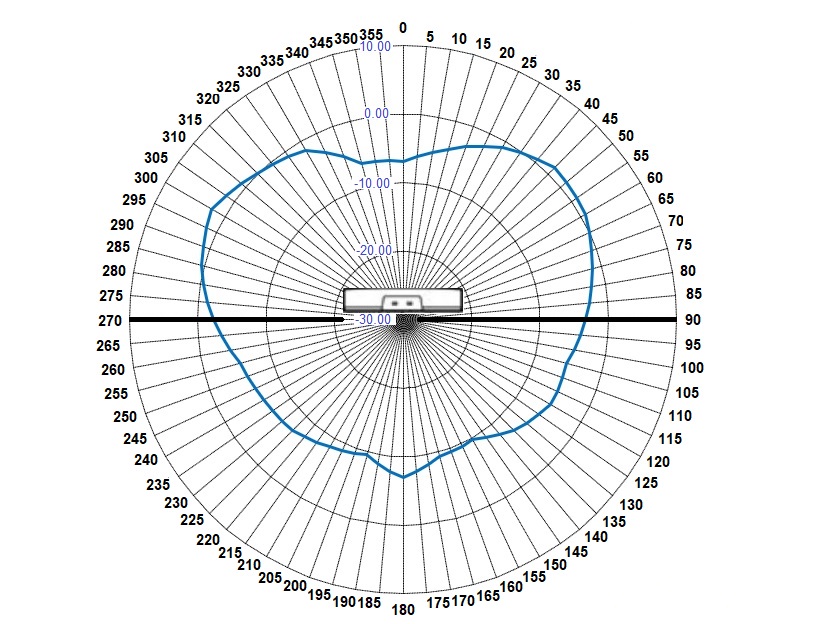

AP4020 2GHz Sensor - Vertical Radiation Pattern
AP4020 2GHz sensor vertical radiation pattern with an AP in the middle of the diagram
Click to expand in new window

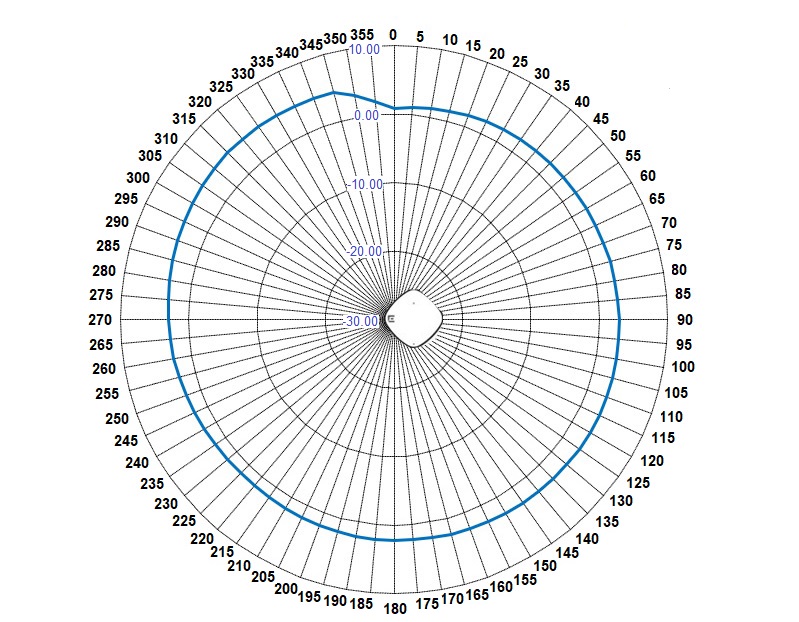

AP4020 2GHz Sensor - Horizontal Radiation Pattern
AP4020 2GHz sensor horizontal radiation pattern with an AP in the middle of the diagram
Click to expand in new window
AP4020 5GHz Sensor - Vertical Radiation Pattern
AP4020 5 GHz sensor vertical radiation pattern with an AP in the middle of the diagram
Click to expand in new window

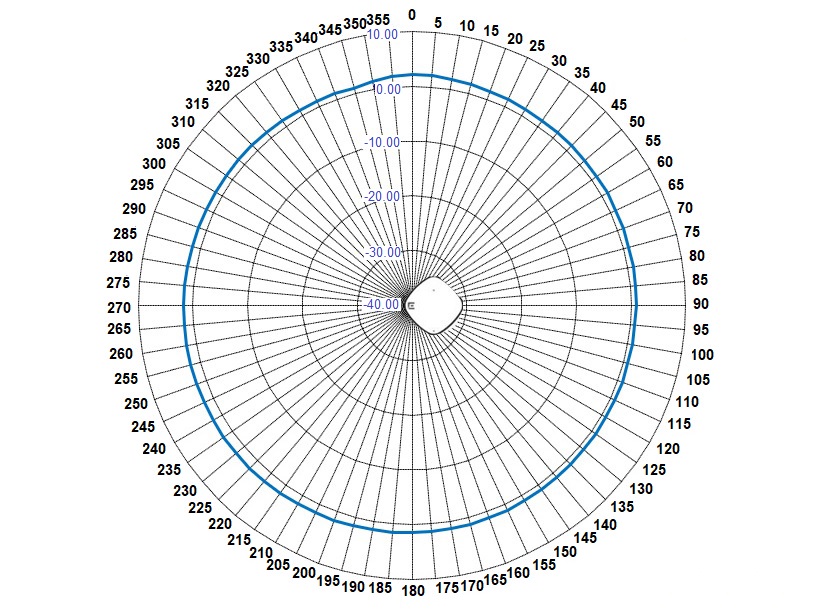

AP4020 5GHz Sensor - Horizontal Radiation Pattern
AP4020 5 GHz sensor horizontal radiation pattern with an AP in the middle of the diagram
Click to expand in new window

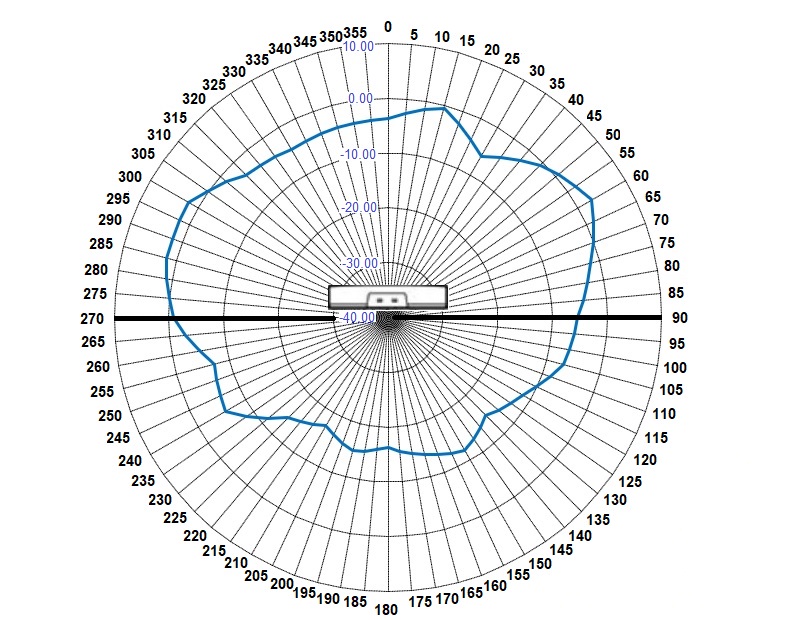

AP4020 6 GHz Sensor - Vertical Radiation Pattern
AP4020 6 GHz sensor vertical radiation pattern with an AP in the middle of the diagram
Click to expand in new window

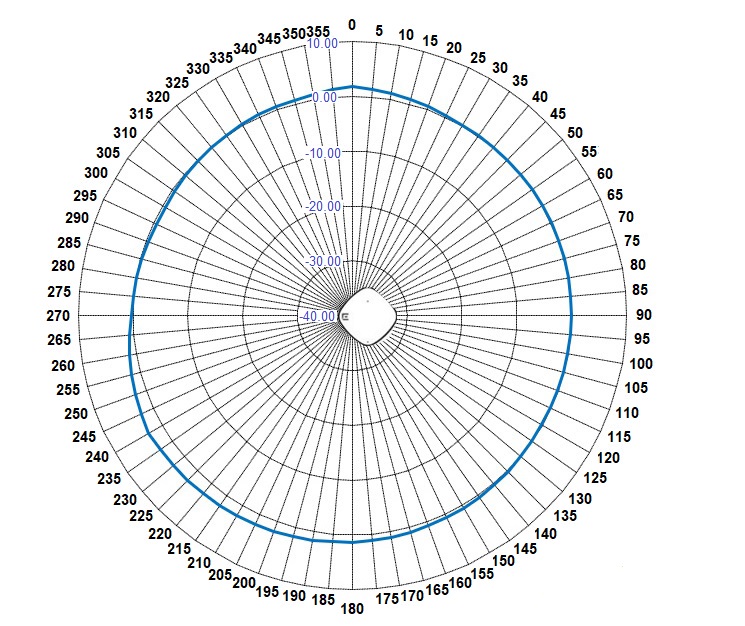

AP4020 6 GHz Sensor - Horizontal Radiation Pattern
AP4020 6 GHz sensor horizontal radiation pattern with an AP in the middle of the diagram
