Configure the Stand-Alone Cluster Settings

An engine is an instance of a containerized application. This process follows the user interface to configure the orchestration engine settings for a stand-alone deployment. From the management IP address, log into the user interface using the admin credentials that you configured under Use the Basic Configuration Wizard.

Go to Cluster Settings > Cluster Configuration and configure the stand-alone cluster in the following order, as shown on screen:

Deployment Type
Cluster Mode
Pod Network Configuration
Finish

To configure the cluster, do the following:

For the Deployment Type, select ExtremeCloud Edge - Self-Orchestration.
In the Cluster Mode section, select Standalone and click Next.

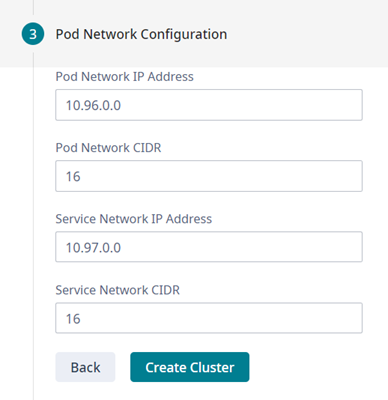

Provide the settings for Pod Network Configuration:
- Pod Network IP Address
- Pod Network CIDR
- Service Network IP Address
- Service Network CIDR
Pod Settings
Select Create Cluster.
Select Done.

Note
The cluster state is bound to the IP Adress of the ICC interface. If the ICC IP address is changed, the cluster state (even if Stand-Alone) is reset. Cluster configuration will need to be re-initialized and any installed applications will need to be re-installed.
