Nonport-side view of the SLX 9150 Switch
The Nonport-side view or rear panel of
the SLX 9150 Switch includes:
- Two power supply bays for 750 W AC or DC power supplies
- Six bays for replaceable fan modules.
Note
The color of the tab on the fan tray indicates the airflow
direction
- Red: front-to-back
- Blue: back-to-front
The SLX-OX software cannot display the airflow direction.

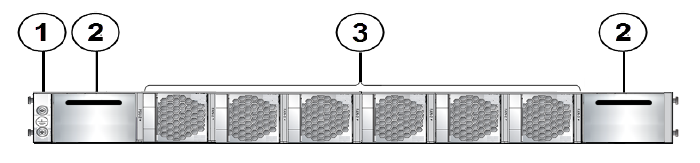

The following illustration shows the
rear-view or nonport-side of the SLX 9150 Switch.
Nonport-side view
- Grounding point
- Power supply slots (unpopulated)
- Fan modules
