SLX 9150 Series Switch LEDs

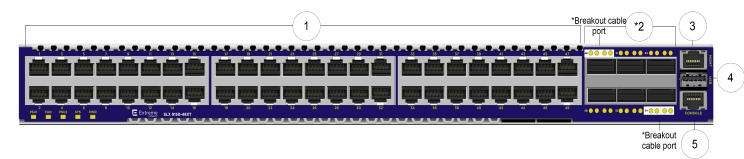

Port-side view of the SLX 9150-48XT Switch

The following illustrations show the port-side views of the SLX 9150 Switch models showing the port and system LEDs.

Click to expand in new window

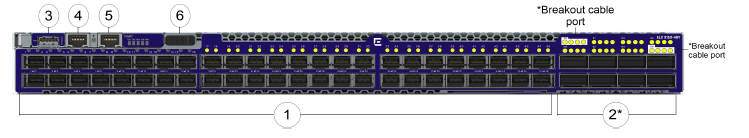

Port-side view of the SLX 9150-48Y Switch
  1. 10/25Gbps SFP28 Ethernet ports
  2. 40/100Gbps QSFP28 Ethernet ports
  3. USB port
  4. Console port RJ45
  5. Management Set sliding button*
  1. 10/100/1000BASE-T Gbps SFP28 Ethernet ports
  2. 40/100Gbps QSFP28 Ethernet ports
  3. USB port
  4. Console port RJ45
  5. Management Set sliding button*

* - The Management Set sliding button can be slid to the right in order to free the Management Set for removal.

SLX 9150-48Y LEDs for Data Ports (1-54)

The following tables describe the meanings of the LEDs on the front panel of the SLX 9150-48Y switch:

Note

Note

Data Ports 55 and 56 are reserved.
Table 1. LEDs for Data Ports (1-48)
Port Configuration Color/State Meaning
10/25 Gb Steady green Port OK
Blinking green Port transmitting or receiving
Slow blinking green Port disabled by software
Off No link/Fault
Table 2. LEDs for Data Ports (49-54)
Port Configuration Color/State Meaning
100 Gb

or 4x25 Gb

 Steady green Port OK
Blinking green Port transmitting or receiving
Slow blinking green Port disabled by software
Off No link/Fault
40 Gb

or 4x10 Gb

 Steady green Port OK
Blinking green Port transmitting or receiving
Slow blinking green Port disabled by software
Off No link/Fault

SLX 9150 Series Front Panel System LEDs

Table 3. SLX 9150-48Y Front Panel System LEDs
Label or Type Color/State Meaning
PSU1, PSU2

(Power Supplies)

 Steady green PSU is installed and providing power
Steady amber PSU is installed but input power is disconnected or unit fault detected
Off PSU is not installed
FAN Steady green All fans operating normally
Steady amber A fan has been removed or fault detected
Off No power to fan modules
SYS

(System)

 Steady green Normal operation; agent software code has been loaded
Blinking green Loading the agent software code
Steady amber Error encountered while running diagnostic software
Blinking amber Loading and executing the boot loader or diagnostic software
Off Unit not operational
PWR

(Power)

 Steady green Normal operation
Blinking green System in reset
Off Unit not operational
Table 4. SLX 9150-48Y Front Panel 100/1G RJ45 Port LEDs
Label or Type Color/State Meaning
OOB Management Port

(Link/Activity)

 Steady green Network link
Blinking green Network link and activity
Off Link at 10Mbps or no activity
OOB Management Port

(Speed)

 Steady green Port link at 100Mbps
Off Link at 1000Mbps or no link
