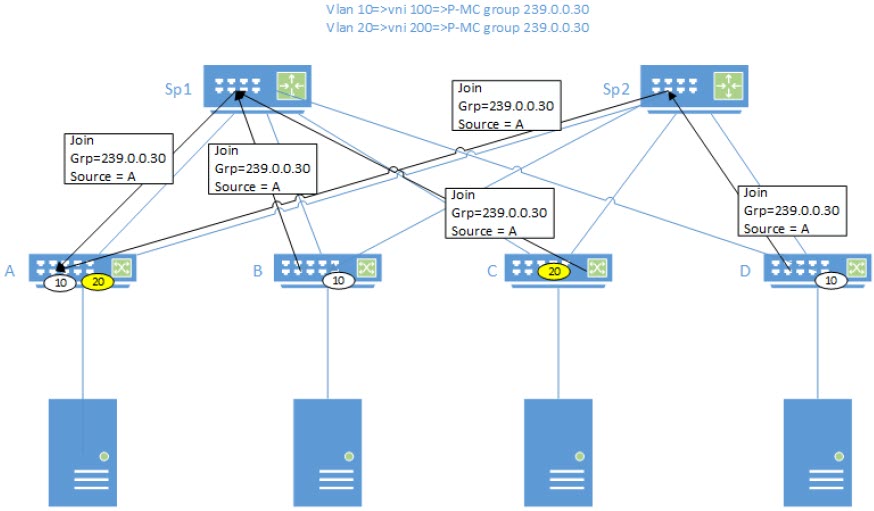

The following figure shows an example where each VNI in the network is configured with the same multicast group address for the core. A single MDT is formed and rooted at A for all VNIs.

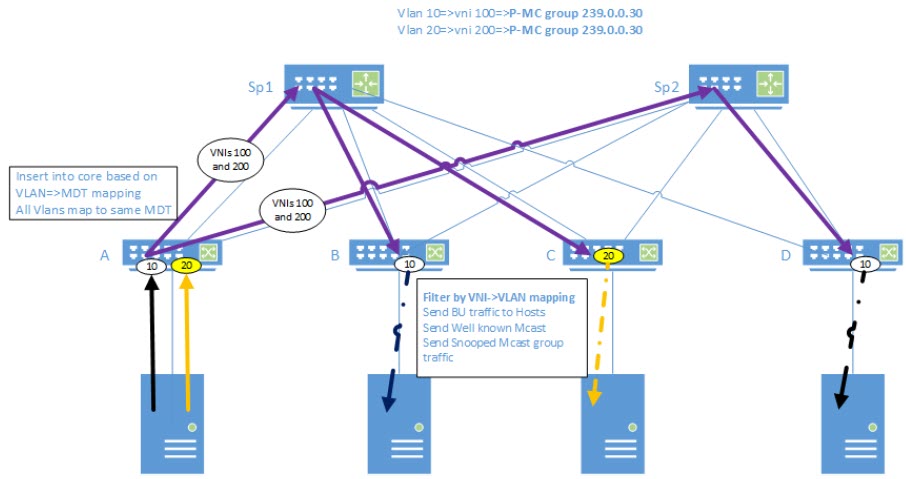

The following figure shows an example where the traffic for both VLANs is injected into the same tree, and filtered at egress as required.
