Engine Application Settings

For each engine instance, select the instance link to configure the application settings and view the following information:


Controller image name.

Instance

Name of the node instance (provided by Universal Compute Platform)

Instance Web Interface

The assigned IP address of the Engine instance. This option provides the ability to log into the specific Engine instance.

Configure the interface from the Interfaces pane. Go to Administration > Network Setup.

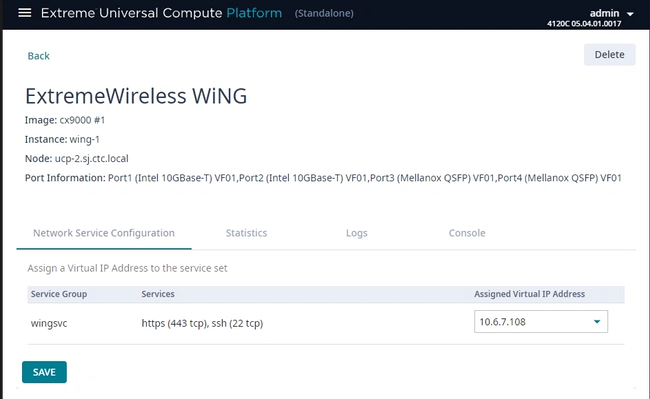

Select the configured IP address from the Assigned Virtual IP Address field. Note, only IP addresses configured through Network Setup > Interfaces will appear in the drop-down list.
Log in through the console.

Network Service Configuration

The mapping of each core service set to the corresponding Virtual Router Redundancy Protocol (VRRP).

VRRP enables a virtual router to act as the default network gateway, improving host network reliability and performance.

Statistics

Compute statistics and node drive volume statistics are available for CPU usage and memory usage.

Logs

A log file is available for each node instance. Log entries include the following:

Timestamp of log entry
System Component
Message log level
Message content

Console

A live console is available from each engine instance for diagnostics and troubleshooting. To open a live console and connect to a container or virtual machine instance (VMI), from the engine Console tab, select Attach.

Note

After the engine application is deployed, refer to the documentation for the individual application for information on how to manage your network with that application
