To onboard a Universal Compute Platform cluster into ExtremeCloud IQ use the ExtremeCloud IQ
Quick Add function:
From the ExtremeCloud IQ main
navigation pane, select Manage
Devices.
Select Quick Add
().
In the Serial Number field,
enter the serial number for one node in the cluster.
The Device Make field
displays.
From the Device Make field,
select Universal
Appliance.

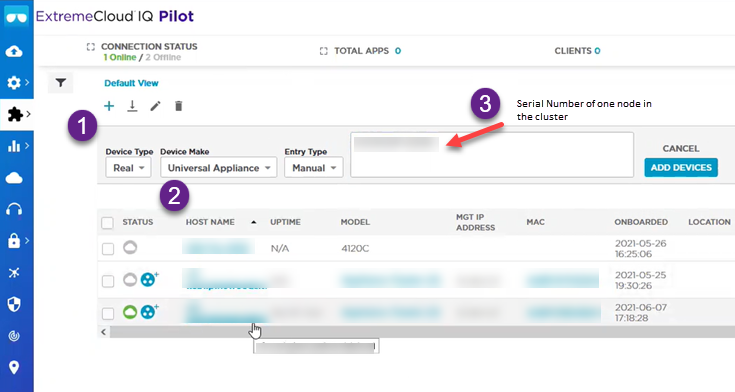

Manually adding a
cluster to ExtremeCloud IQ
Select Add
Devices.
The full cluster
is added based on the serial number of a single node in the cluster.
Note
To view details about the
cluster, select the Host Name link.
Select Actions > Applications > ExtremeCloud IQ
Manage.

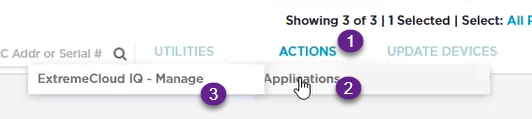

ExtremeCloud IQ
Actions menu
This initiates the action for ExtremeCloud IQ OPs
to deploy a Regional Data Center (RDC) for the cluster.
Fill out the online form:
Note
Required fields are noted
with an asterisk.
Customer Information
Primary Technical
Contact
Secondary Technical
Contact
Notification List —
Provide a list of email addresses for notification.
Nightly Backup
Scheduled Upgrades
RDC Name — Provide a
meaningful name, up to 6 characters. The system will verify that the
name is available.
IP Address Mapping —
Provide the mapping between the external Public IP Address to the
internal virtual VRRP IP Address for each service set.

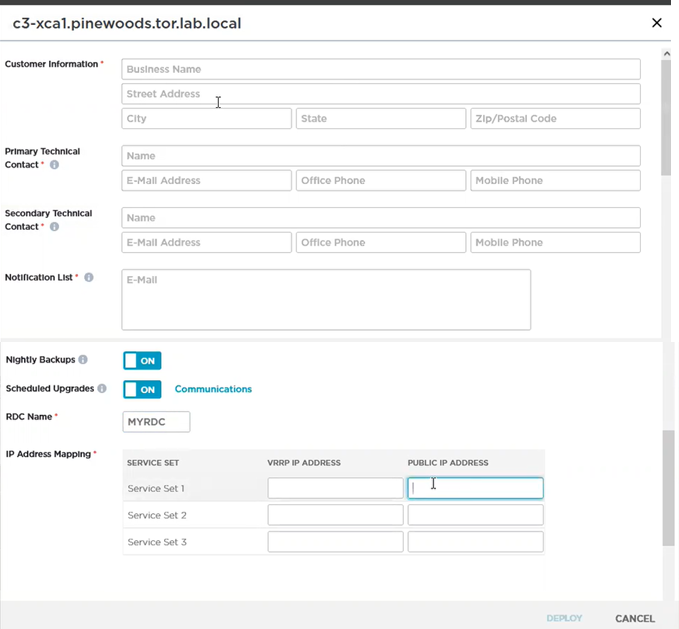

ExtremeCloud IQ Deploy
a Cluster Form
Select Deploy.
A ticket is generated for
ExtremeCloud IQ OPs.
Operations personnel will provide an estimate for the expected deployment
schedule.
During deployment OPs team will do the following:
Deploy ExtremeCloud IQ software to the on-premise hosts
Validate the deployment to ensure the site is deployed and operating
correctly
Once validated, OPs will provide notification of readiness
Provide the installation token that enables customers to create
accounts directly on the newly deployed ExtremeCloud IQ
private Regional Data Center (RDC).
You can view the status of the
deployment process from the Application
Status column on the Device List.
).
