About this task
If you are not installing the latest the ExtremeCloud IQ
Controller release, you need to upgrade the VE6120/VE6125 software to the latest patch release.
Procedure
- Go to the Extreme Networks Support site and download the most recent the ExtremeCloud IQ
Controller the software patch.
- Log in to the virtual appliance using the admin user and password that you configured in the Set up the VE6120/VE6125 Appliance Using the Basic Configuration Wizard section.
- Go to .
The System screen is displayed.

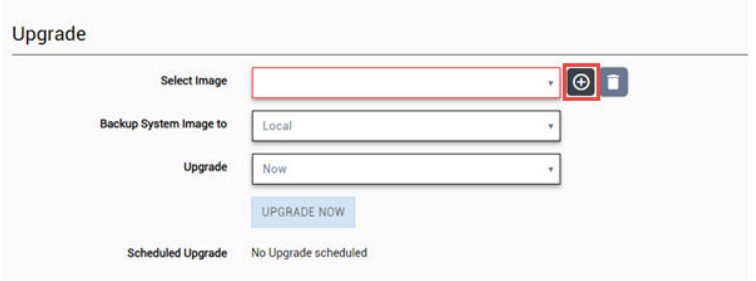

- Select Software Upgrade tab. Navigate to the Upgrade section.
- To add the image file, select the Plus icon.
The Copy Upgrade Image window is displayed.
- From the Upload Method drop-down, select Local or FTP or SCP.
- Image Type
- Indicates the type of image file used. Valid values are:
- Destination
- Destination of the uploaded image file:
- Local
- Flash (The Flash drive must be mounted.)
- Upload Method
- Method used to upload image file to appliance. Valid values are:
- HTTP — Indicates to upload from a local workstation.
- FTP — Indicates to upload from the corresponding server.
- SCP — Indicates to upload from the corresponding server.
When the Upload Method is FTP or SCP, configure the server properties.
- Copy Image from Local Drive
- When the Upload Method is HTTP, drag image onto ExtremeCloud IQ
Controller or select field to navigate to local file directory.
- Select Image
- Due to a storage space limitation, ExtremeCloud IQ
Controller limits the number of locally available upgrade images. If necessary, you can delete an older image before you upgrade to the latest image. To delete an image from ExtremeCloud IQ
Controller, from the Select Image field, select an image and select
.
What to do next
For more information about the Software Upgrade options, see the ExtremeCloud IQ
Controller User Guide.
