7830 Series Switch Features

The 7830 Series switch includes the following:

7830-32CE-8DE

The 7830-32CE-8DE base switch includes two unpopulated modular power supply slots, four unpopulated fan slots, and two unpopulated versatile interface modules (VIM) slots. Fan modules and power supply modules must be ordered separately.

The front panel of the switch includes:

• 1 = 100M/1G/10G RJ45 out-of-band management ports
• 2 = System status LEDs
• 3 = RJ-45 Serial console port
• 4 = Global Navigation Satellite System for GPS signal
• 5 = Mode button and channel selection LEDs
• 6 = Advanced services port for the processor to offload to external appliance
• 7 = Time of Day (TOD), 1PPS signal inputs
• 8 = HD-BNC connector for Time synchronization, 1PPS and 10MHz
• 9 = USB Type A port
• 10 = VIM slots (unpopulated)
• 11 = 10Gb/25Gb/40Gb/50Gb/100Gb/200Gb/400Gb MACsec capable ports
• 12 = 10Gb/25Gb/40Gb/50Gb/100Gb MACsec capable ports
• 13 = 1G/10G SFP+ out-of-band management port

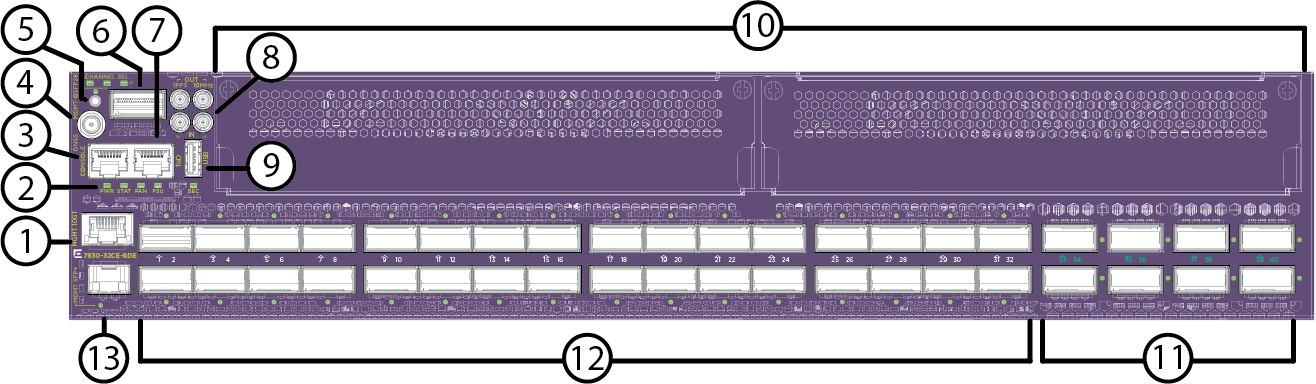

7830 Series Front Panel

The rear panel of the switch includes:

• 1 = Grounding lug
• 2 = 4 x Fan modules
• 3 = 2 x Modular power supplies

Airflow is front-to-back if the power supplies and fans have red tabs. Airflow is back-to-front if the power supplies and fans have blue tabs.

7830 Series Rear Panel with Front-To-Back Airflow

7830 Series Rear Panel with Back-To-Front Airflow
