Radiation Patterns
Use the following radiation patterns to assist you as you deploy your AP.

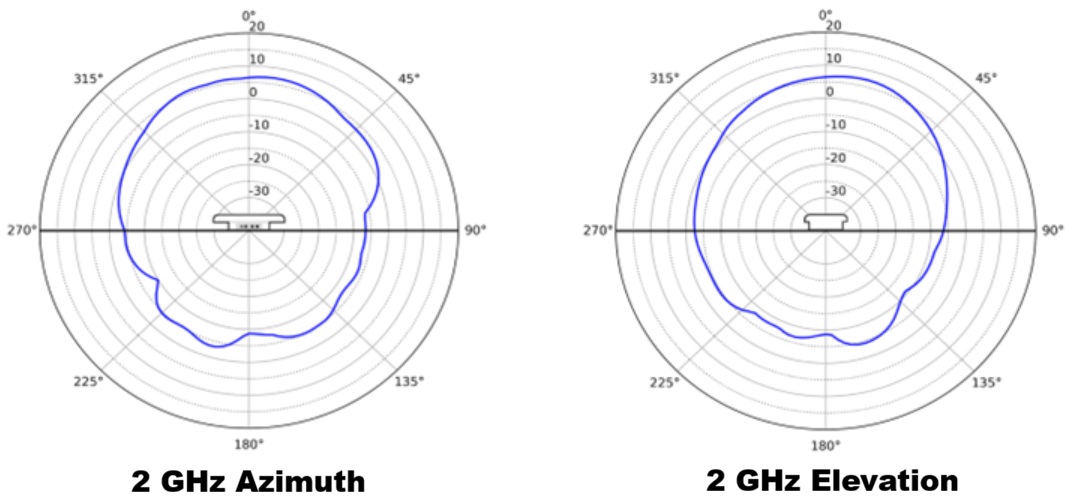

2 GHz Radiation Patterns

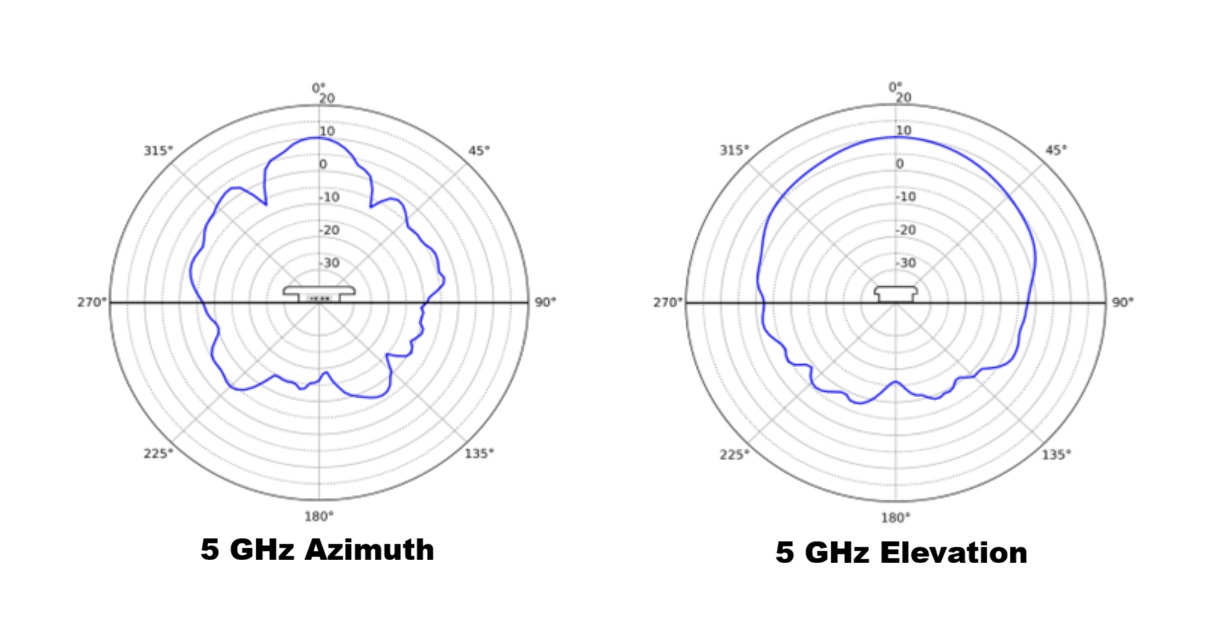

5 GHz Radiation Patterns

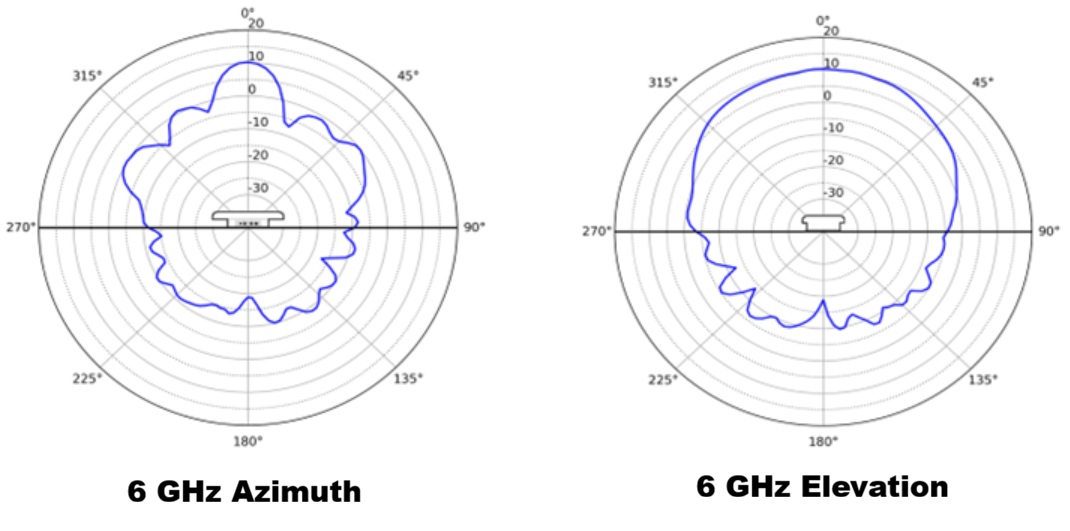

6 GHz Radiation Patterns
