8520-48XT Switch Features

The 8520-48XT Series includes the following models:

8520-48XT-6C

The 8520-48XT-6C base switch includes six unpopulated fan module slots and two unpopulated power supply module slots. Fan modules and power supply modules must be ordered separately.

8520-48XT-6C-AC-F

The 8520-48XT-6C-AC-F switch includes two AC power supply modules and six fan modules. Airflow for both the fan modules and the powers supply modules is frontto-back.

8520-48XT-6C-AC-R

The 8520-48XT-6C-AC-R switch includes two AC power supply modules and six fan modules. Airflow for both the fan modules and the powers supply modules is backto-front.

8520-48XT-6C-DC-F

The 8520-48XT-6C-DC-F switch includes two DC power supply modules and six fan modules. Airflow for both the fan modules and the powers supply modules is frontto-back.

8520-48XT-6C-DC-R

The 8520-48XT-6C-DC-R switch includes two DC power supply modules and six fan modules. Airflow for both the fan modules and the powers supply modules is back-to-front.

The front panel of the switch includes:

• 1 =48 x 1/10GbE 10GBaseT RJ-45 ports
• 2 = 6 x 40/100Gbe QSFP28 ports
• 3 = 10/100/1000BASE-T OOB management port
• 4 = USB Type A port
• 5 = Serial console port RJ-45
• 6 = System LEDs

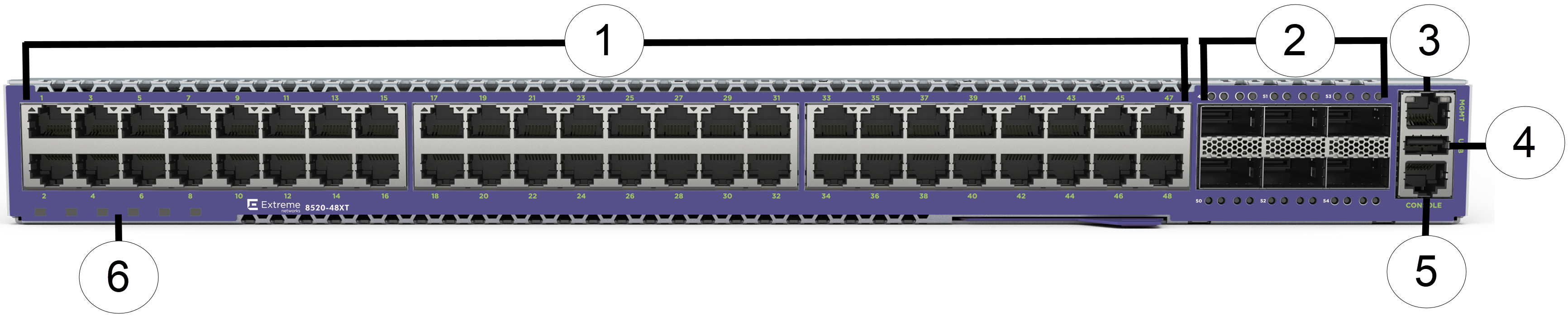

8520-48XT Switch Front Panel

The rear panel of the switch includes:

• 1 = Grounding lug
• 2 = 2 x Power supply slots
• 3 = 6 x Fan modules

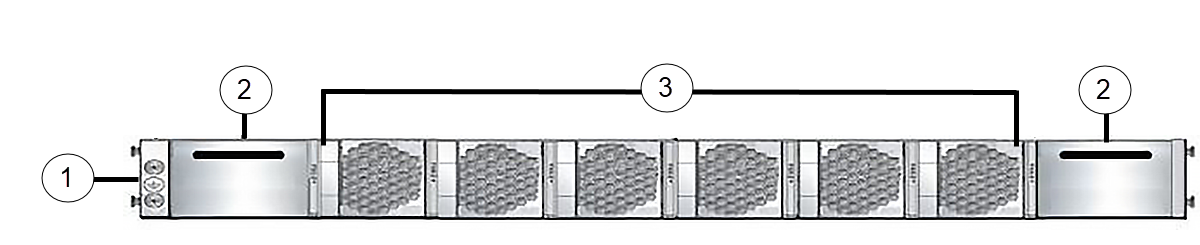

8520-48XT Switch Rear Panel
