Create End Points

1. Go to Configuration → Vouchers from the main menu.
   The Users tab displays by default.
2. Select the End Points tab.
   The Create End Points window displays.

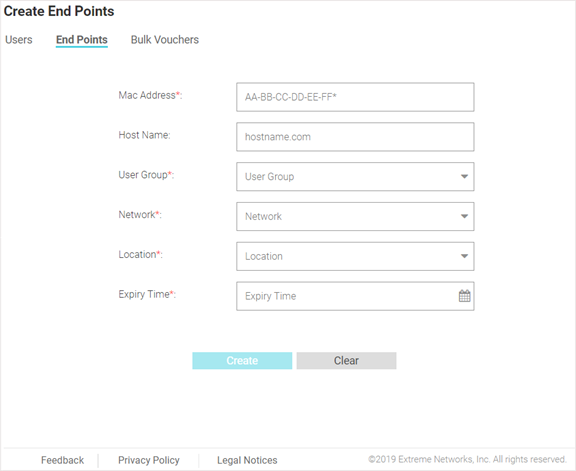

   Create End Points Screen


3. Configure the following details for each end point voucher:

   MAC Address	Enter the MAC address for the end point. The MAC address should be added in the following format: AA-BB-CC-DD-EE-FF
   Host Name	Optionally, enter a hostname to associate with the network end point.
   User Group	Select a user group from the list to associate it to the network end point.
   Network	Select a network from the list to associate it to the network end point.
   Location	Select a location from the list to associate it to the network end point.
   Expiry Time	Use the calendar to specify the ending date and time that the end point will be deactivated.

4. When all mandatory fields have been completed, select Create to complete voucher creation.
   To discard any changes made to the form select Clear.
