Splash Templates

1. Go to Configuration → Splash Templates from the navigation menu.
   The System Templates tab displays. To sort the templates alphabetically, select the arrows in the upper right. Select the arrows again to reverse the alphabetic sort.

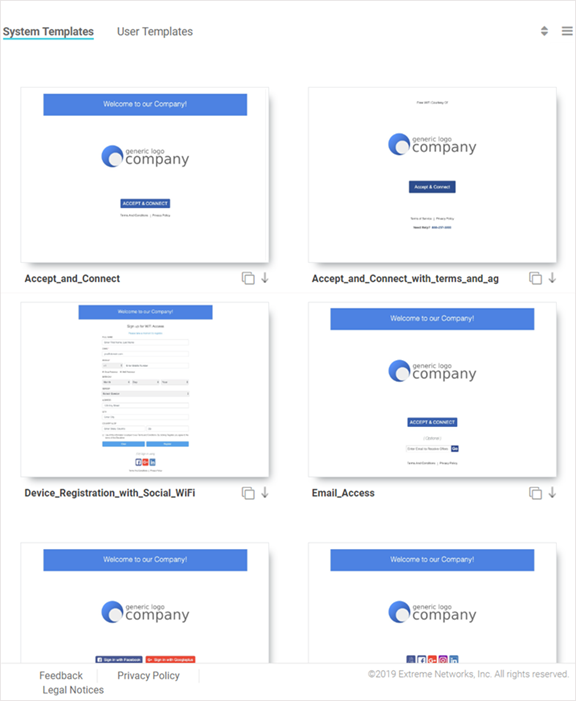

   System Templates Screen



Downloading and Customizing Splash Templates

2. Select a pre-made System Template from the screen. The available options are:

   Accept_and_Connect	Splash template to use for Free WiFi access with a simple Accept & Connect button. Clicking on this button provides internet access and also registers the device with ExtremeGuest.
   Accept_and_Connect_with_terms_and_agreement	Splash template to use for Free WiFi access with a simple Accept & Connect button and a hyperlink to view terms and conditions. Clicking on this button provides internet access and also registers the device with ExtremeGuest.
   Device_Registration_with_Social_WiFi	Splash template to use for Free WiFi access with a customizable registration form and social sign-in options. Guest user‘s device is registered along with their registration or social profile details with ExtremeGuest.
   Email_Access	Splash template to use for Free WiFi access with an option to capture guest user‘s Email Address or Mobile Number. Guest user‘s device is registered along with their e-mail address or mobile number with ExtremeGuest.
   Social_WiFi_with_Facebook_and_GooglePlus	Splash template to use for free WiFi access with Facebook or GooglePlus social sign-in options. Guest user‘s device is registered along with their social profile details with ExtremeGuest.
   Social_WiFi_with_all	Splash template to use for free WiFi access with customizable Facebook/GooglePlus/LinkedIn/Instagram social sign-in options. Guest user‘s device is registered along with their social profile details with ExtremeGuest.
   Sponsored_Guest_Access	Splash template to use for sponsored WiFi access for different category of users, i.e., Employees can self-register their devices, Guests and Vendor‘s can request the sponsor to approve the WiFi access.
   User_Registration_with_Social_WiFi	Splash template to use for free WiFi access with a customizable user registration form and social sign-in options. Guest user registration details or social media profile details are registered with ExtremeGuest. Guest user receives a One-Time-Passcode/Passcode to sign-in to the network.
   User_Registration_with_Social_WiFi_and_Forgot_Passcode	Splash template to use for free WiFi access with a customizable user registration form and social sign-in options. Guest user registration details or social media profile details are registered with ExtremeGuest. Guest user receives a One-Time-Passcode/Passcode to sign-in to the network. The template includes a Forgot Passcode button for users to recover forgotten passcodes.

3. Select the icon to download the template locally.
4. Edit the company name and logo, where applicable, and use the User Templates tab to upload the edited template.
   For information on uploading the template, see User Templates.

Cloning System Templates

5. Select the icon, at the bottom, right corner of a template, to clone it.
   The selected template opens in the edit mode.

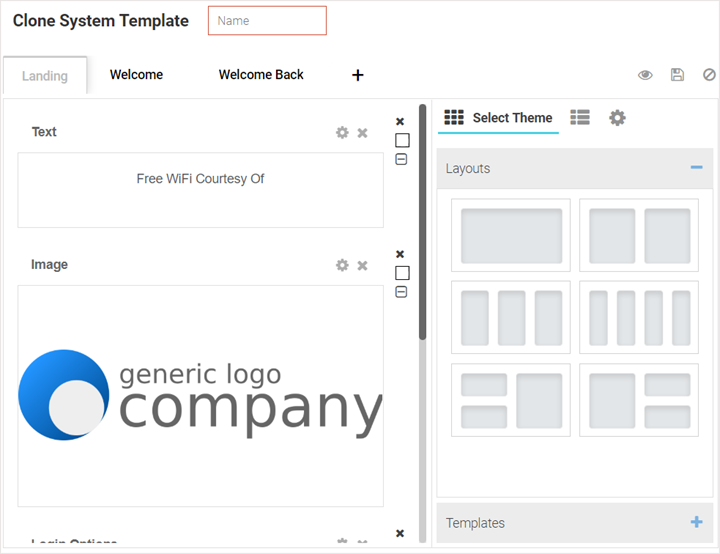

   Clone System Template Screen


6. Provide a Name for the cloned template.
7. Customize the template as per your requirement. You can change the page layout, content, logo and the widgets applied to the themes on the screen. Refer to the User Templates section for information on editing a splash page.

Viewing Splash Templates to Network Mapping Summary

8. To view a summary of splash template to network mapping, select the icon.
   Select the icon to return to the System Templates screen.
   The Splash Templates Mapping Summary screen displays.

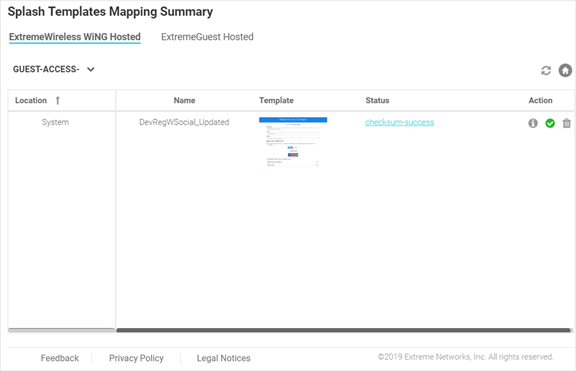

   Summary View Screen



   In the Summary View, templates are organized into following two categories:

   • ExtremeWireless WiNG Hosted - These are templates hosted on the ExtremeWireless WiNG controller.
   • ExtremeGuest Hosted - These are templates hosted directly on ExtremeGuest.
9. Select the icon and select a Network from the drop-down menu displayed. The screen updates to display templates associated with the selected network.
   For each template, the Name and Status is displayed.
10. You can perform the following actions on the Splash Template Mapping Summary screen:

    Check Template Status	Select the icon to display troubleshooting and log information for a template. This information includes network reachability, configuration validity and splash template verification. It also displays log entries for this template. Use the filter field to filter log entries. Download or copy the log using the Save to Disk and Copy to Clipboard buttons respectively.
    Re-Apply	Select the or icons to clear and re-apply the splash template to its associated site.
    Delete	Select the icon to remove the splash template from ExtremeGuest.
