Example 1: SPQ without Shaping (Default profile)

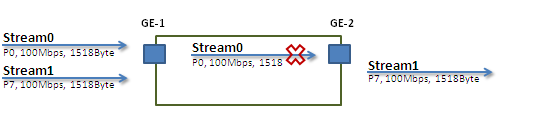

We send 2 Streams (Stream0, Stream1) from PORT-1 to PORT-2. Both 2 Streams each have 100Mbps. Stream0 includes VLAN Priority0, Stream1 includes VLAN Priority7. Set PORT-2 link speed to 100Mbps.

Expected Result

We expect PORT-2 only can receive 100Mbps of Stream1, and Stream0 will be discarded. This case will help you to understand how SPQ works on the ISW.

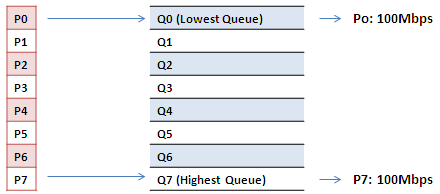

Gigabit port VLAN Priority & Queue Mapping

Stream0:

• Dst Mac : 00:00:00:00:20:01
• Src Mac : 00:00:00:00:10:01
• Vlan : 100
• Vlan prio : 0
• Send rate : 100Mbps
• Packet length: 1518bytes

Stream1:

• Dst Mac : 00:00:00:00:20:02
• Src Mac : 00:00:00:00:10:02
• Vlan : 100
• Vlan prio : 7
• Send rate : 100Mbps
• Packet length: 1518bytes

Web Management

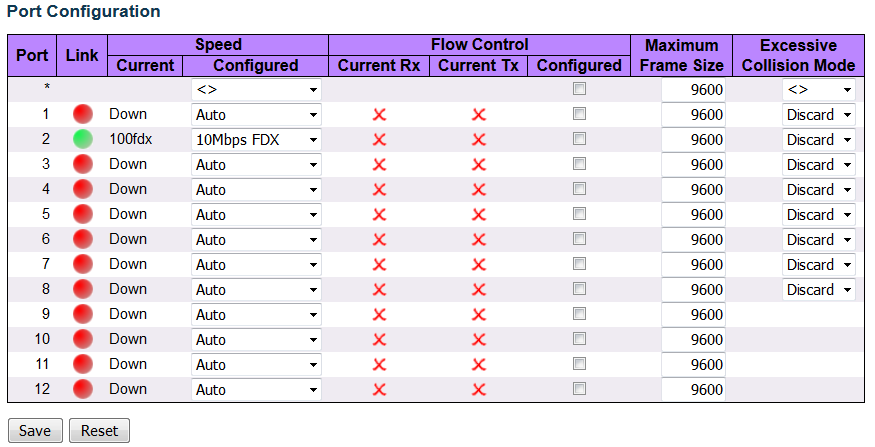

1. Navigate to ConfigurationPorts.
2. Set port 2 link speed to 100Mbps full duplex.





3. Select Configuration VLANs and create a VLAN with VLAN ID 100.
4. Enter a VLAN name in the Name field. In this example, we set tagged VLAN100 on PORT1 and PORT2.

CLI Configuration

interface GigabitEthernet 1/1
 switchport trunk native vlan 100
 switchport trunk allowed vlan 1,100
 switchport trunk vlan tag native
 switchport mode trunk
!
interface GigabitEthernet 1/2
 switchport trunk native vlan 100
 switchport trunk allowed vlan 1,100
 switchport trunk vlan tag native
 switchport mode trunk
