Web Configuration for 802.1x and MAC AuthenticationNEW!

To enable 802.1x and MAC authentication on the same port, configure the network access server with the values highlighted in the following example:

Select a value for Sense Period between 10 and 255 seconds. The default is 10 seconds.
Specify a Port Configuration state of 802.1X or MAC-based sense.

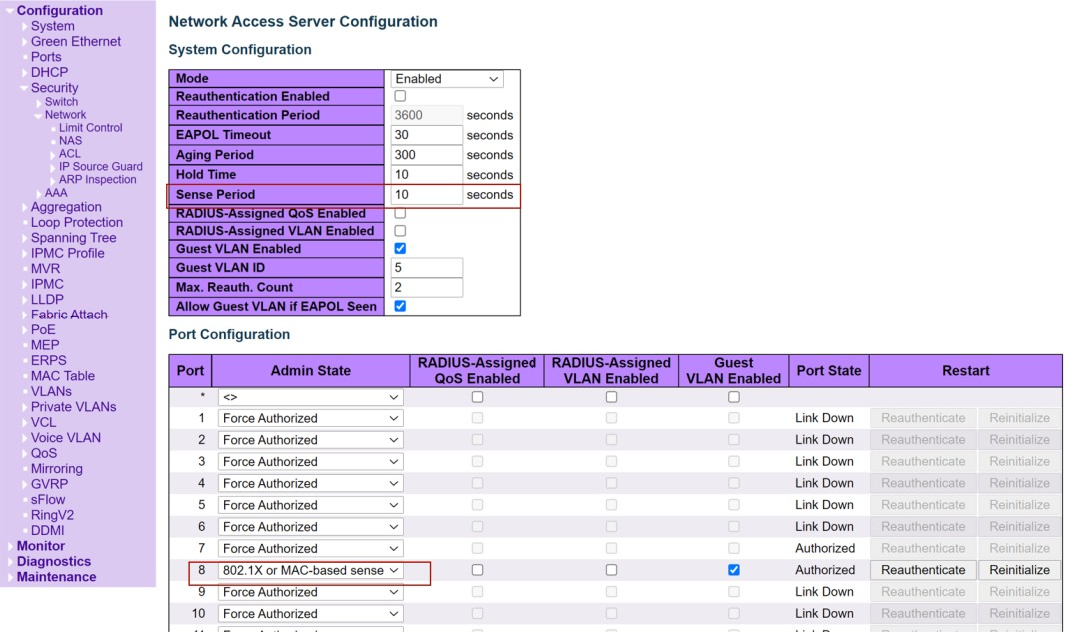

Configuration screen for 802.1x and MAC authentication, showing values for Sense Period and Port-Control Mode
