Configuring the Coupling Primary

  1. Navigate to ConfigurationRingV2.
  2. Enable Index1, and select role as Ring(Slave).
  3. Select two ports as Forward Ports.
  4. Enable Index2, and select role as Coupling(Primary).
  5. Select one port as a Primary Port.
Click to expand in new window

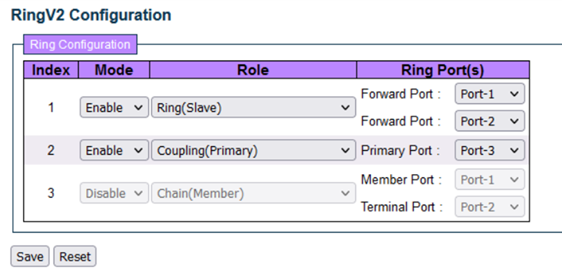

RingV2 Configuration window with mode=Enable and role=Ring(Slave) and mode=Enable and role=Coupling(Primary)
