Below is an example 802.1x
Authentication via ISW to be authenticated by
RADIUS server. In this basic example, we take port 1 as
a testing port, which enables 802.1x in ISW.
With default configuration, use the following web UI settings:
Navigate to Configuration Security Network NAS.
Select Enabled mode to enable authentication.
Set port1 and port2 as
Port-based 802.1x.

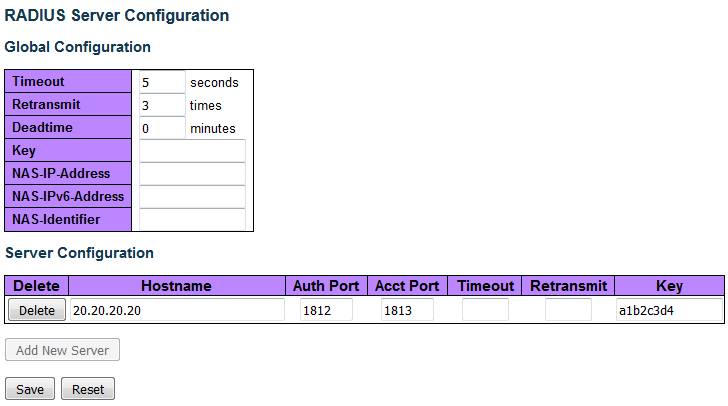

Navigate to Configuration SecurityAAARADIUS.
Click Add New Server and enter 20.20.20.20 as the
server and a1b2c3d4 as the secret key.
