Extreme 9920 software
implements Simple Network Management Protocol (SNMP) for monitoring system events. SNMP
traps send alert messages from a remote SNMP-enabled device to a central collector. SNMP

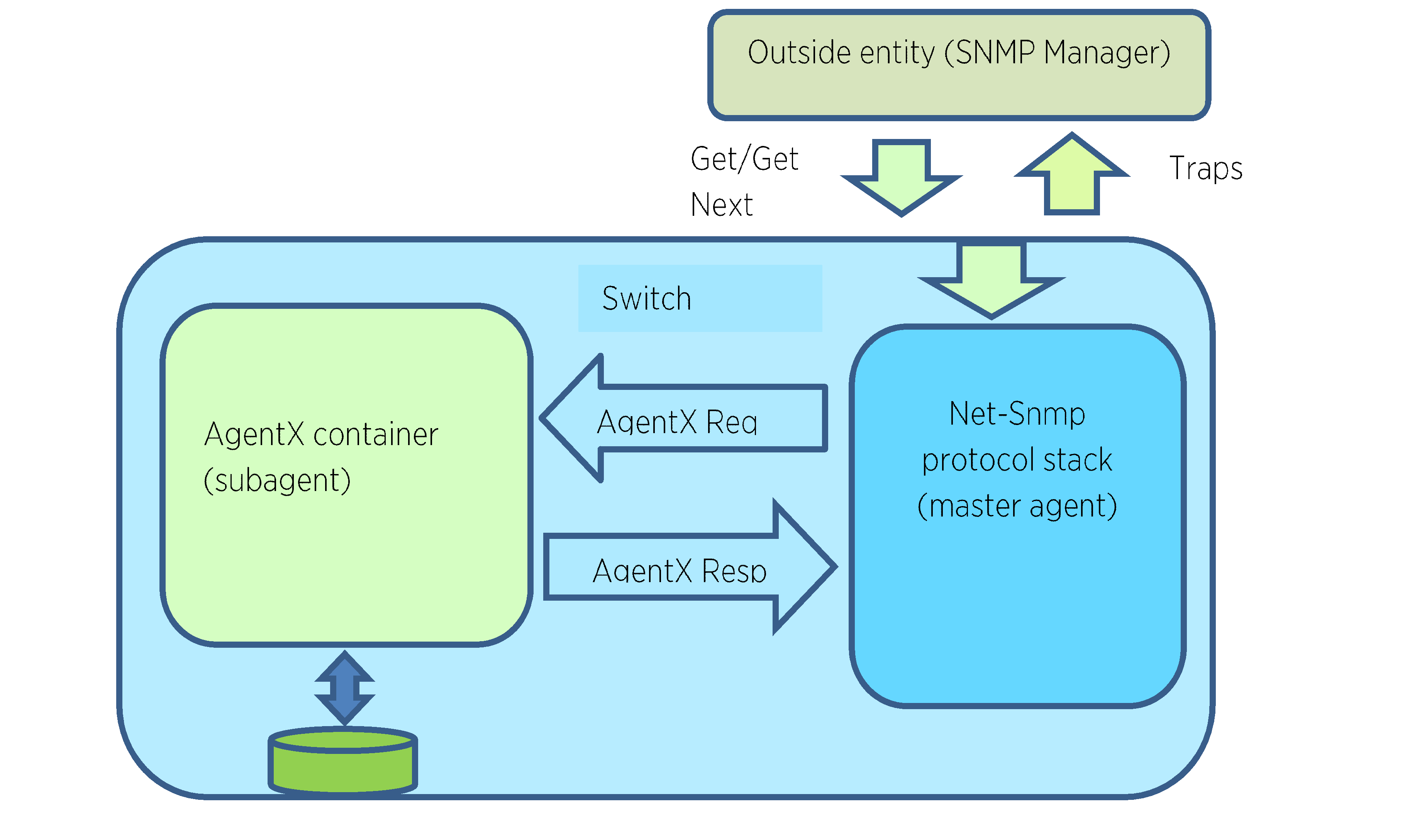

support in the application implements the open-source net-snmp protocol stack, in which a
single ‘agentx subagent‘ container fetches requested MIB data and feeds it to the
net-snmp protocol stack. This is shown in the following figure.
net-snmp protocol
stack
You can configure SNMP to collect the following information:
