5420M-24W-24S-4YE Switch Features

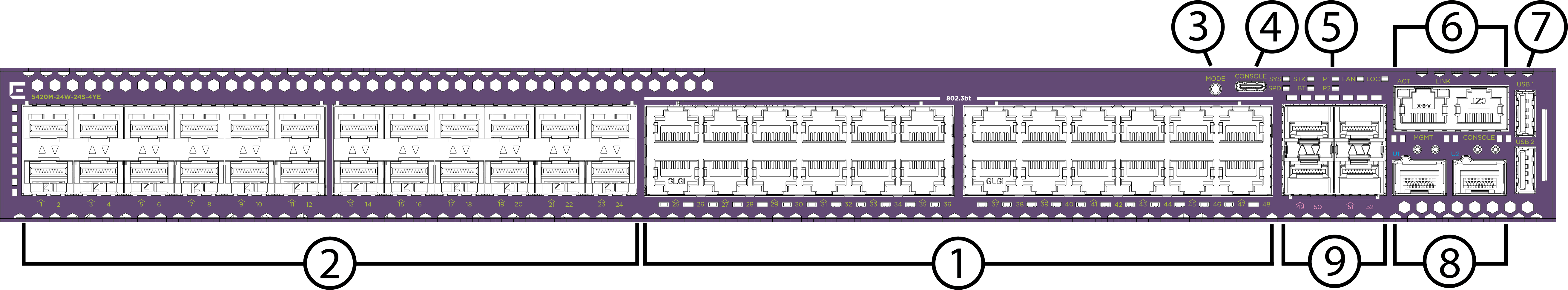

The front panel of the 5420M-24W-24S-4YE switch includes:

• 1 = 24 x 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports

Note

Half-duplex is not supported on these ports when operating at 1Gbps.

• 2 = 24 x 100M (FX/LX)/1G SFP ports
• 3 = Mode button
• 4 = Type C USB console port
• 5 = System status LEDs
• 6 = RJ-45 Management and Console ports
• 7 = 2 x USB Type A port for management or external USB flash
• 8 = 2 x SFP-DD Universal ports/Stacking ports (unpopulated)

Note

These ports can operate either as stacking ports, or as 10G Ethernet ports with SFP+ optics using the disable stacking-support command.

• 9 = 4 x 1/10/25Gb SFP28 MACsec capable uplink ports (unpopulated)

5420M-24W-24S-4YE Front Panel

The rear panel of the switch includes:

• 1 = Grounding lug
• 2 = Fan module
• 3 = 2 x Power supply slots (unpopulated)

5420M-24W-24S-4YE Rear Panel
