AP5060D Antenna Radiation Patterns

2.4 GHz Radiation Patterns

The following diagrams illustrate the radiation patterns for the AP5060D 2.4 GHz internal antenna.

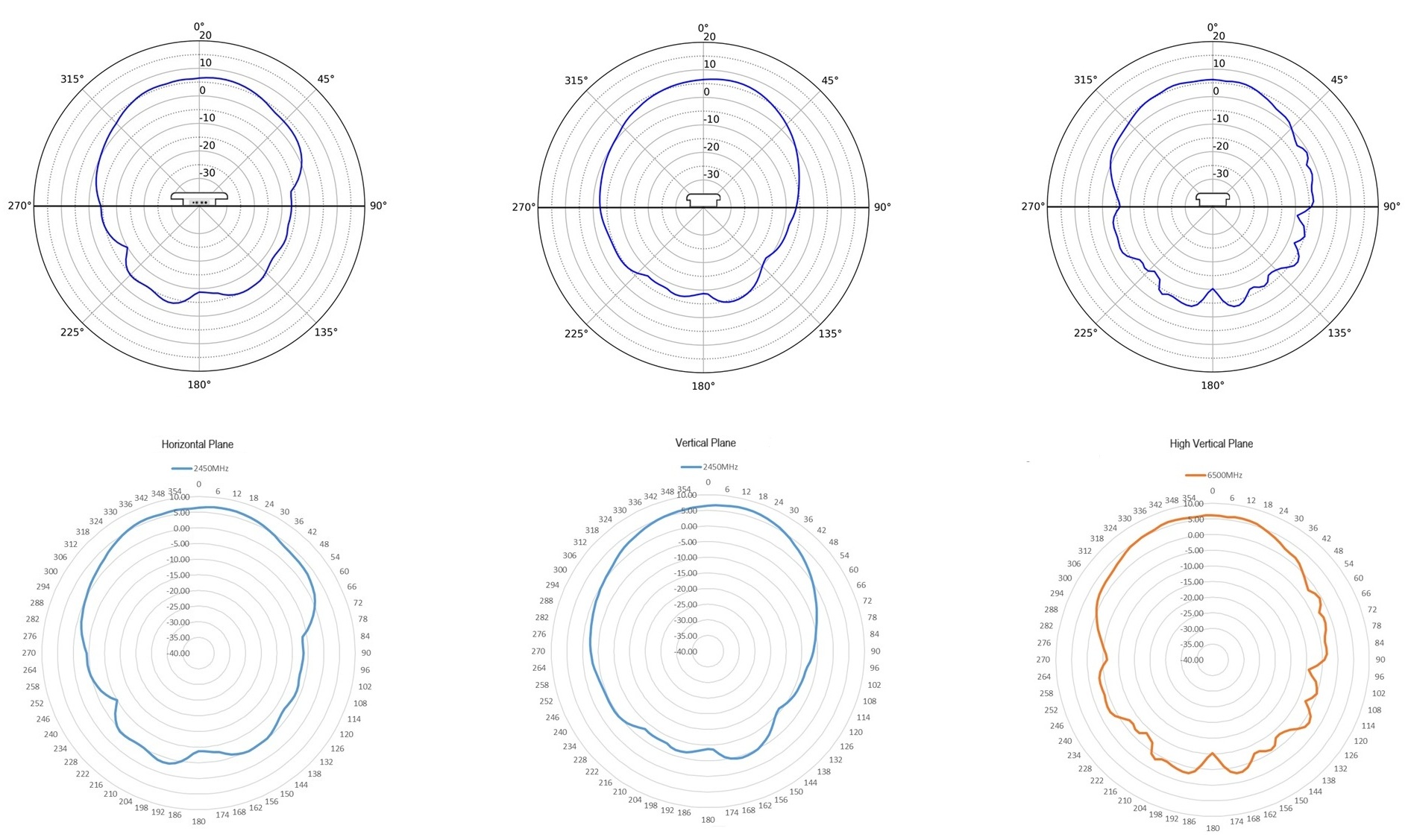

2.4 GHz Horizontal, Vertical, and High Vertical Radiation Patterns

5 GHz Radiation Patterns

The following diagrams illustrate the radiation patterns for the AP5060D 5 GHz internal antenna.

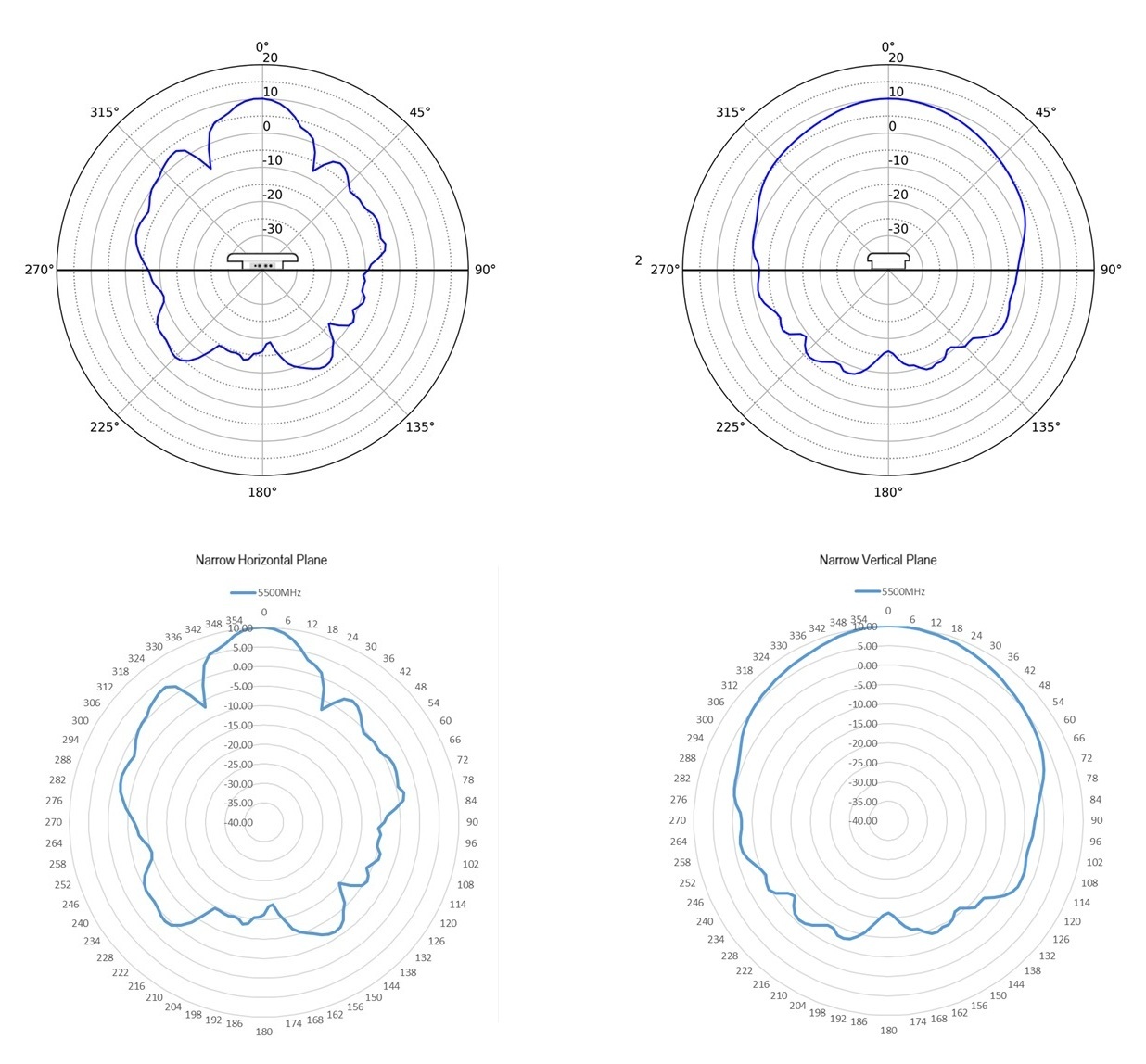

5 GHz Narrow Radiation Patterns

5 GHz Narrow Low Radiation Patterns

5 GHz Wide Radiation Patterns

5 GHz Wide Low Radiation Patterns

6 GHz Radiation Patterns

The following diagrams illustrate the radiation patterns for the AP5060D 6 GHz internal antenna.

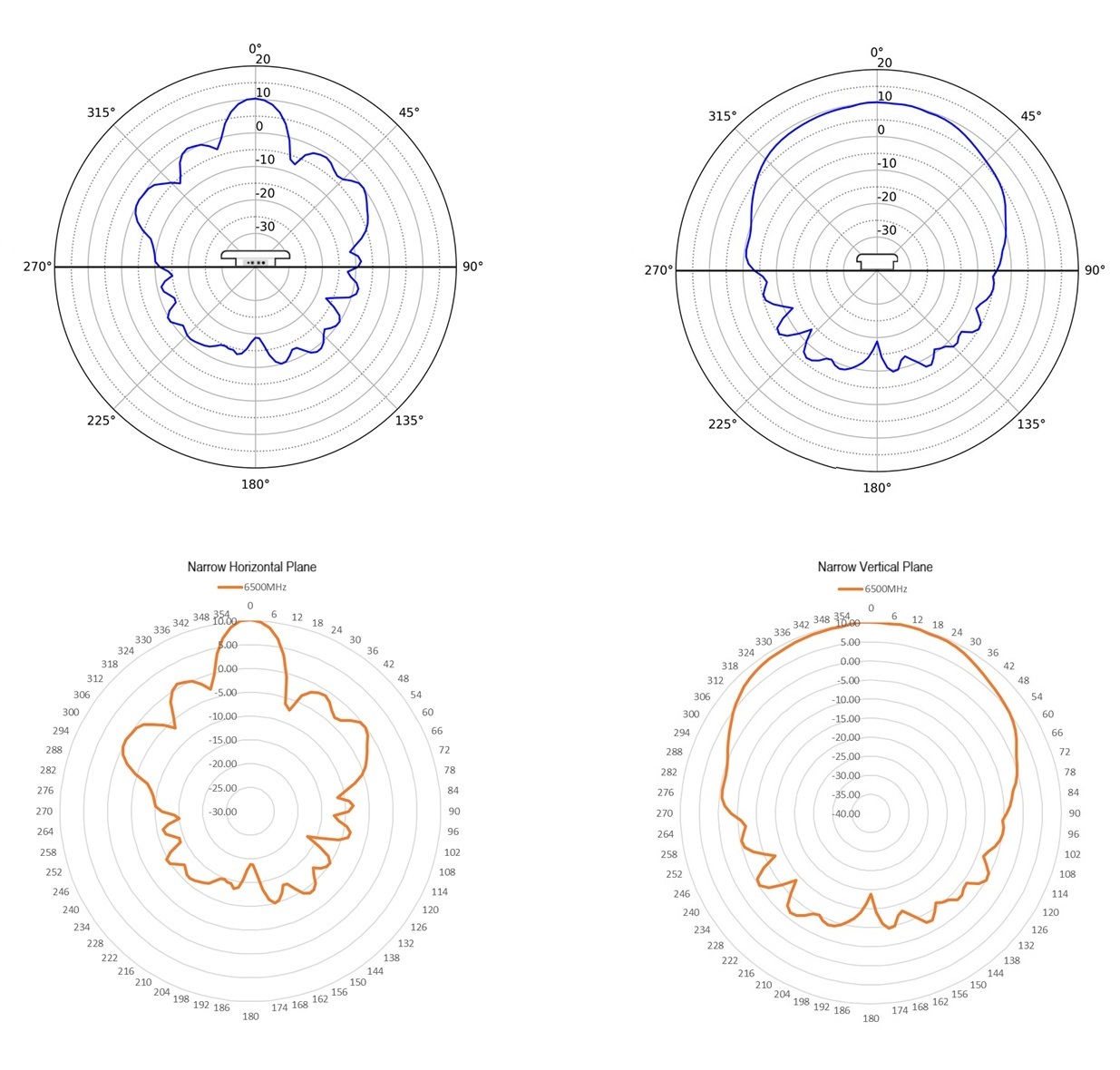

6 GHz Narrow Radiation Patterns

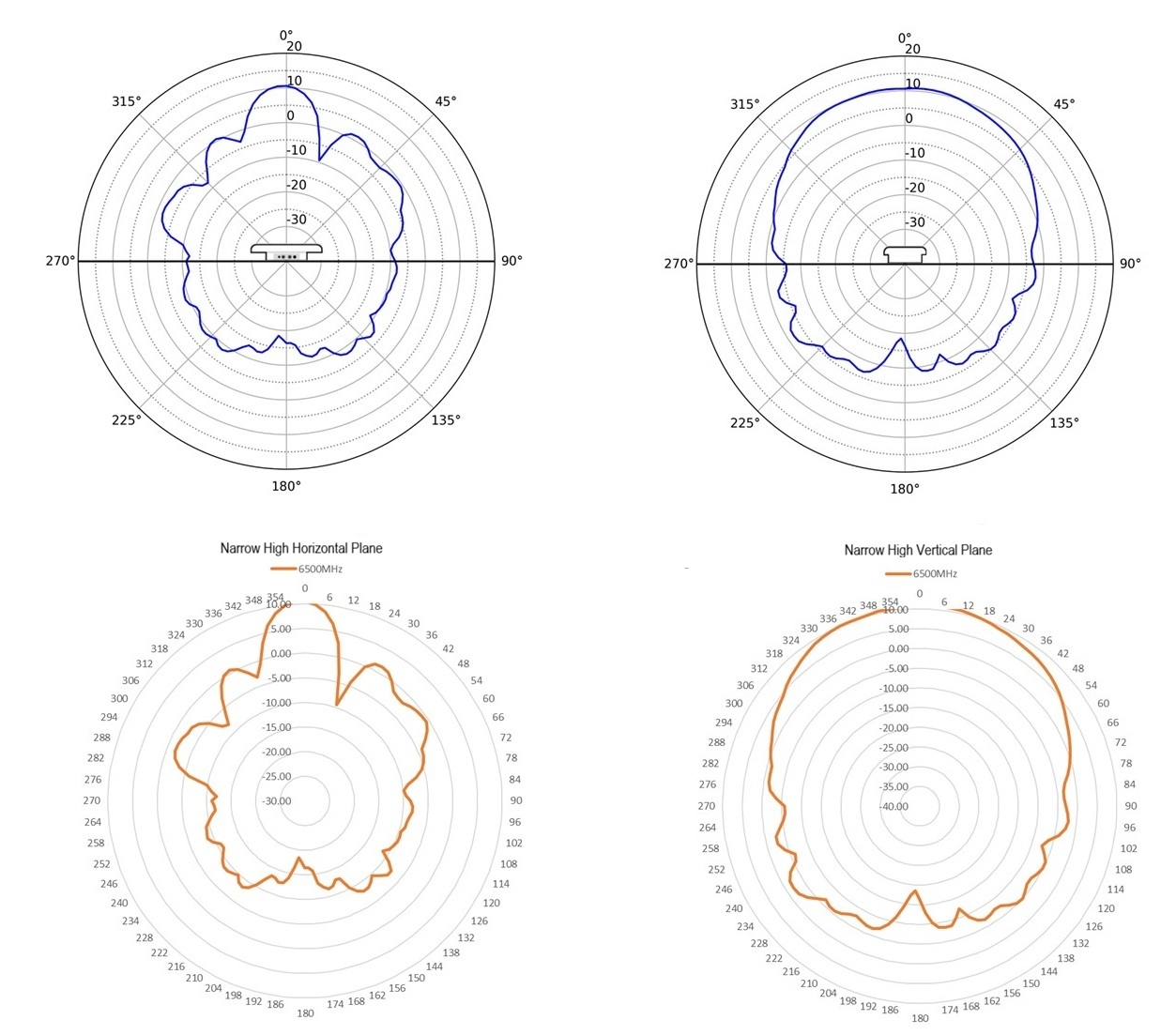

6 GHz Narrow High Radiation Patterns

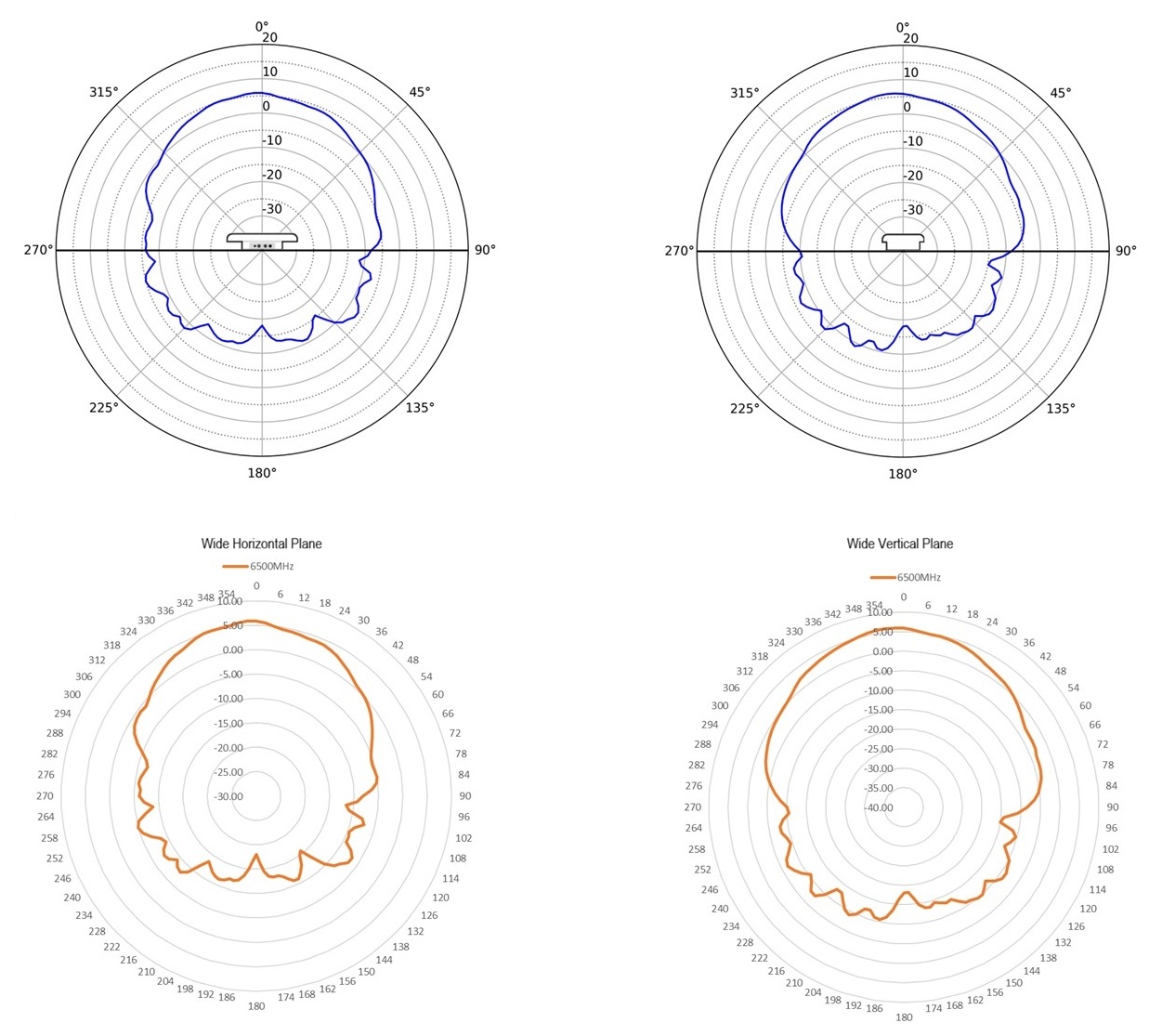

6 GHz Wide Radiation Patterns

6 GHz Wide High Radiation Patterns
