AP5060U
Antenna Radiation Patterns
2.4 GHz Radiation Patterns
The following diagrams illustrate the radiation patterns for the
AP5060U
2 GHz internal antenna.

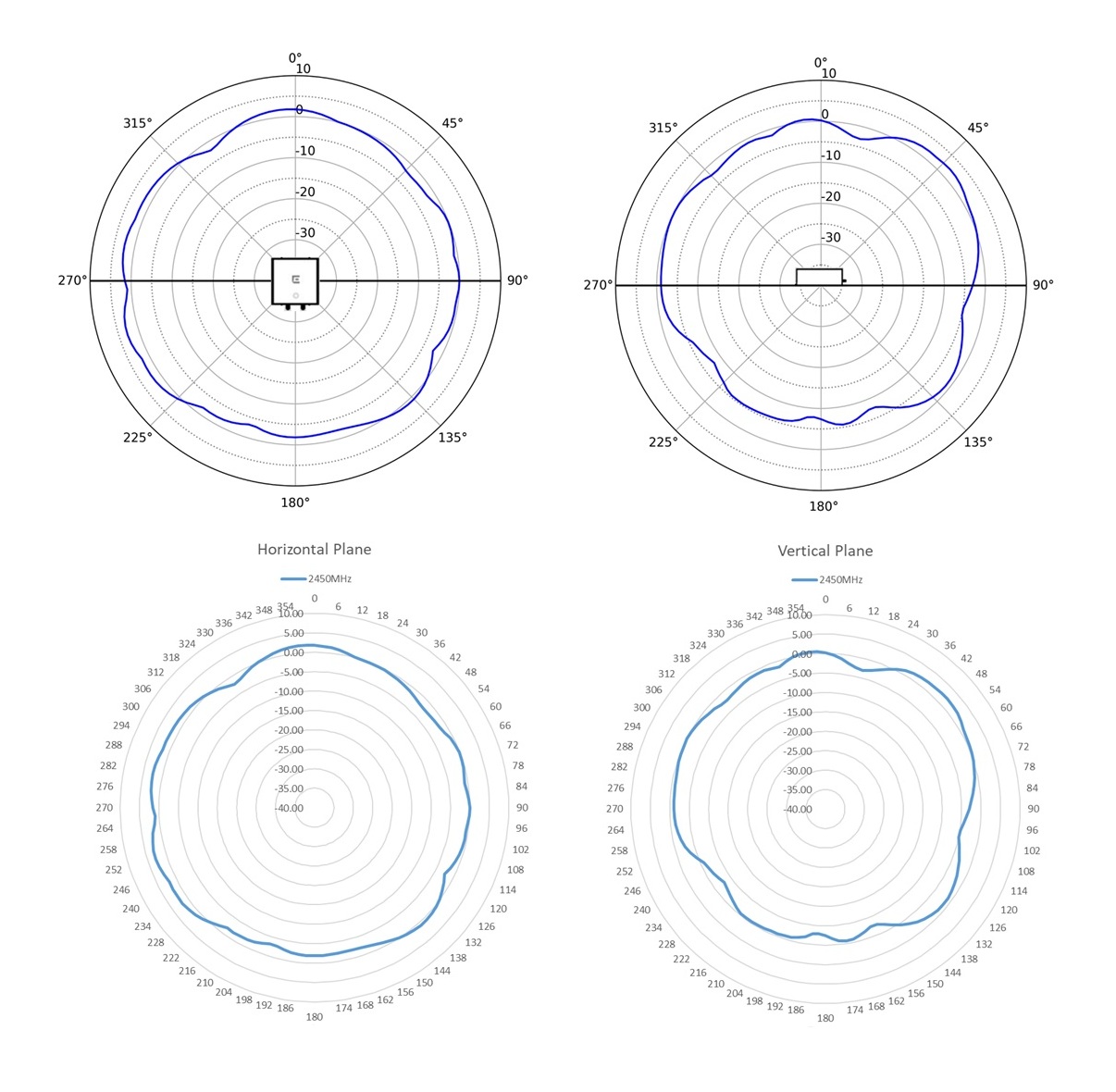

2.4 GHz Horizontal and Vertical Radiation Patterns
5 GHz Radiation Patterns
The following diagrams illustrate the radiation patterns for the
AP5060U
5 GHz internal antenna.

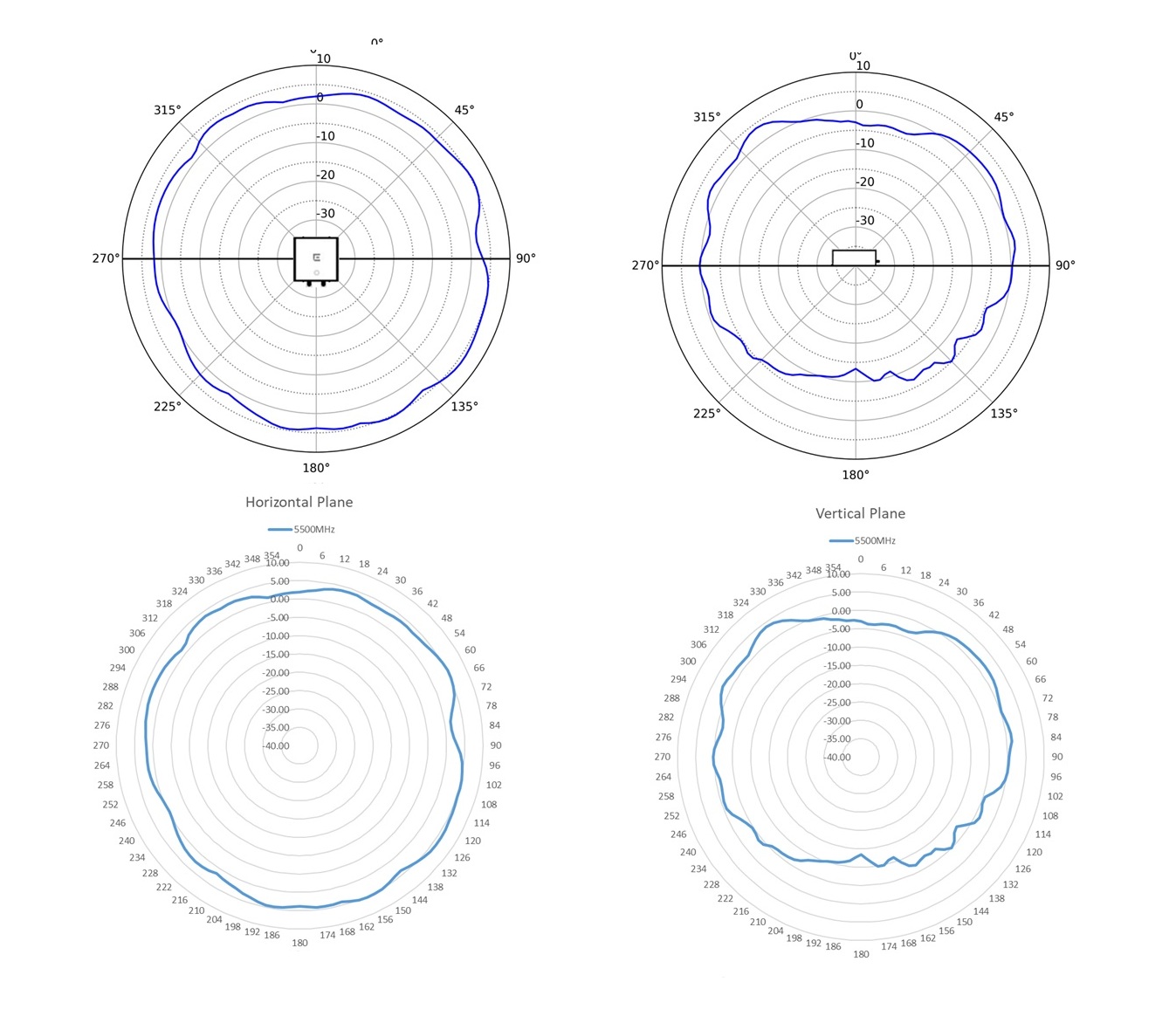

5 GHz Horizontal and Vertical Radiation Patterns
5 GHz Low Radiation Patterns
6 GHz Radiation Patterns
The following diagrams illustrate the radiation patterns for the
AP5060U
6 GHz internal antenna.

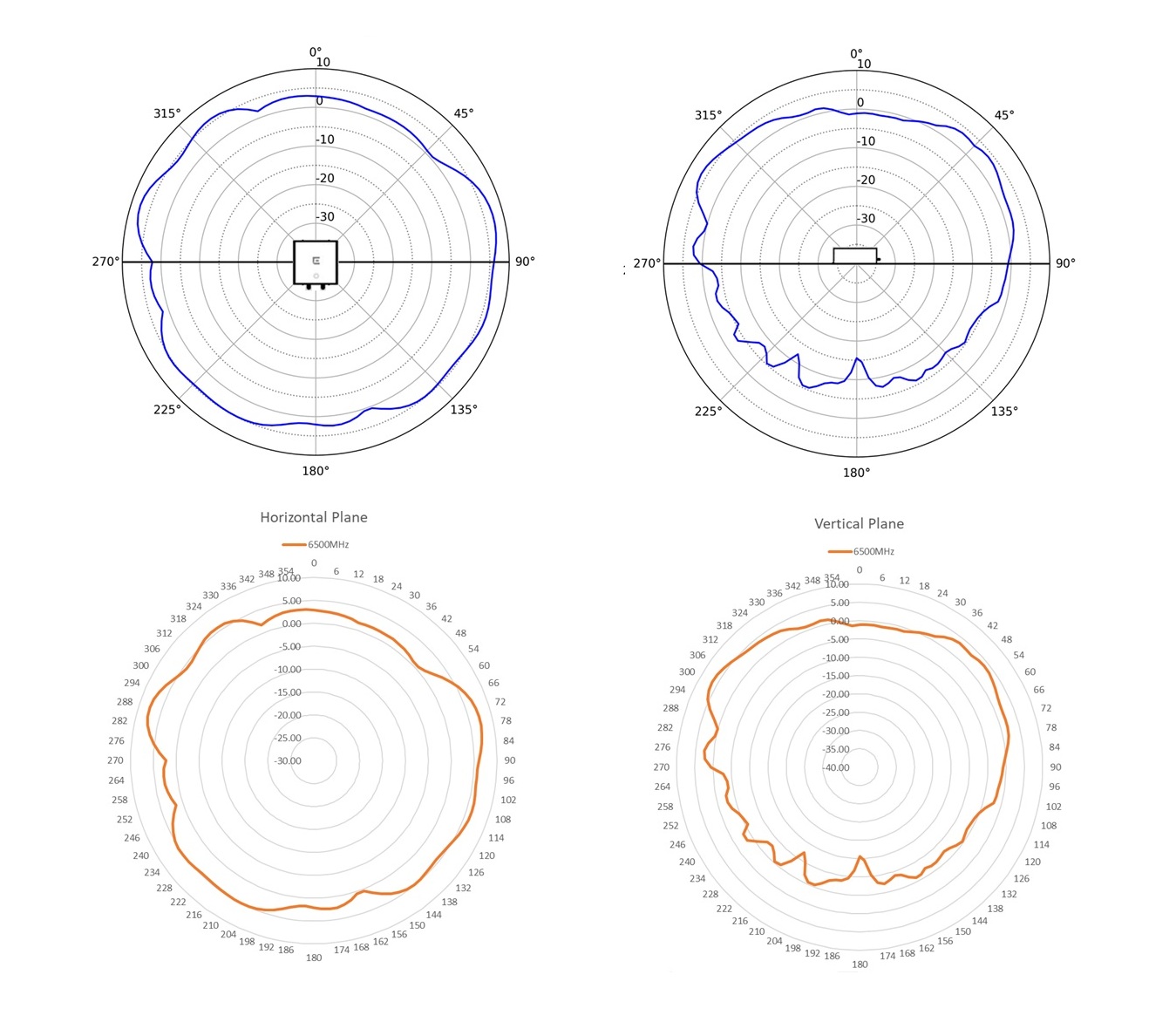

6 GHz Horizontal and Vertical Radiation Patterns
6 GHz High Radiation Patterns
