Load the Dashboard

To display the ExtremeLocation Essentials dashboard:

  1. Select the icon from the main menu to view the Dashboards screen.
    The dashboard marked as default automatically loads.
    Click to expand in new window
    The Dashboard Screen
  2. To select a different dashboard, use the Dashboard drop-down list.
    The selected dashboard opens and displays the configured data.
  3. To manually refresh the data on the screen, select the button from tool bar.
    Note

    Note

    The dashboard is refreshed automatically every 30 seconds.
  4. Select the button from tool bar.
    The button expands to display a drop-down list.
    Click to expand in new window
    Dashboard Download Options
  5. Select the PDF button to save the current state of the dashboard as a Portable Document Format (PDF) file. Select the CSV button to save the current state of the dashboard as a Comma Separated Value (CSV) file.
  6. Use the Location drop-down list to select a site and to display the data for the selected site when multiple sites are available under this ExtremeLocation account.
    Click to expand in new window
    Location Drop-Down List
    The dashboard refreshes to display data for the selected site or group of sites.
  7. Use the Duration drop-down list to select a time duration to display the data for.
    The drop-down provides a set of pre-configured durations for filtering data. The available pre-configured durations are:
    • Today - Displays the data for the current date. Excludes data for all other dates.
    • Yesterday - Displays the data for the day before the current date. Excludes data for all other dates including data for the current date.
    • Last 7 Days - Displays the data for the last 7 days prior to the current date. Includes data for the current date. Excludes data for all other dates.
    • Last 30 Days - Displays the data for the last 30 days prior to the current date. Includes data for the current date. Excludes data for all other dates.
    • Last 90 Days - Displays the data for the last 90 days prior to the current date. Includes data for the current date. Excludes data for all other dates.

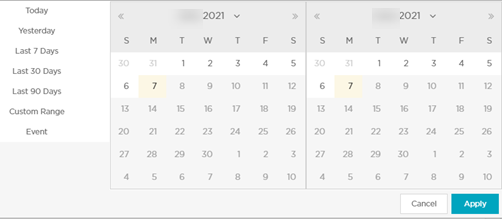

    • Custom Range - Displays the data for a user selected date range. On selecting this option, the following dialog displays.
      Click to expand in new window
      Select the start date and end date for the custom range from the displayed calendar and select Apply.

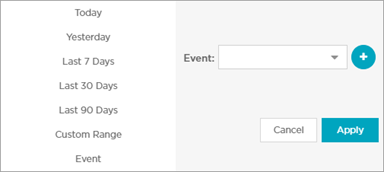

    • Event - Displays the data for user-created "Event" such as a sale or a conference. An Event is a date range that is identified with a unique name.

      Click to expand in new window

      Use the drop-down to select the event of interest and select Apply.

      See Create an Event to know about creating an event.

  8. Periodically select the button from tool bar to manually refresh the data displayed on the current dashboard.
9039167-00 Rev AA
