Configuring the Ring Slave

  1. Navigate to ConfigurationRingV2.
  2. Enable Index1, and select role as Ring(Slave).
  3. Select two ports as Forward Ports.
Click to expand in new window

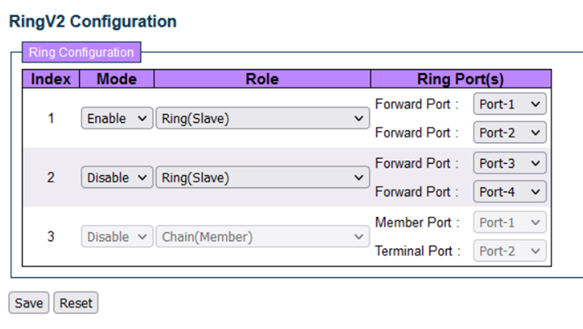

RingV2 Configuration window with mode=Enable and role=Ring(Slave)
