Configuring the Ring Master

  1. Navigate to ConfigurationRingV2.
  2. Enable Index1, and select role as Ring(Master).
  3. Select one port as a Forward Port, and another as Block Port.
Click to expand in new window

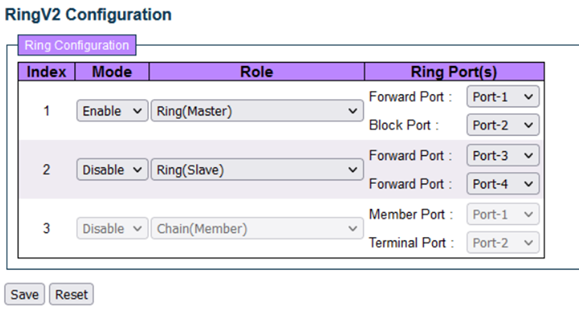

RingV2 Configuration window with mode=Enable and role=Ring Master
