Configuring Balancing Chain (Terminal-1 or -2)

  1. Navigate to ConfigurationRingV2.
  2. Disable Index1 and Index2, and then enable Index3.
  3. Select role as Balancing Chain(Terminal-1 or -2).
  4. Select a member port and a terminal port for this balancing chain terminal switch.
Click to expand in new window

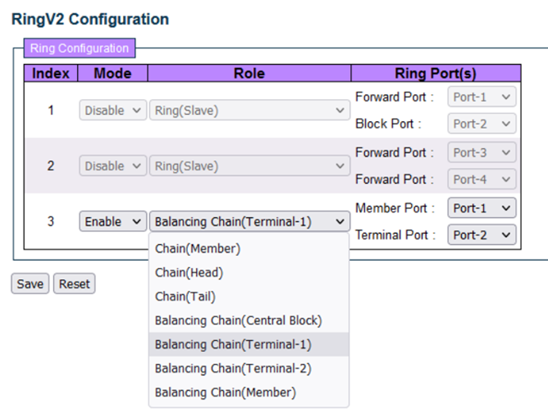

RingV2 Configuration window with mode=Enable and role=Balancing Chain (Terminal-1)
