Configuring Balancing Chain – Central Block

  1. Navigate to ConfigurationRingV2.
  2. Disable Index1 and Index2, and then enable Index3.
  3. Select role as Balancing Chain(Central Block).
  4. Select a member port and a block port for this central block switch.

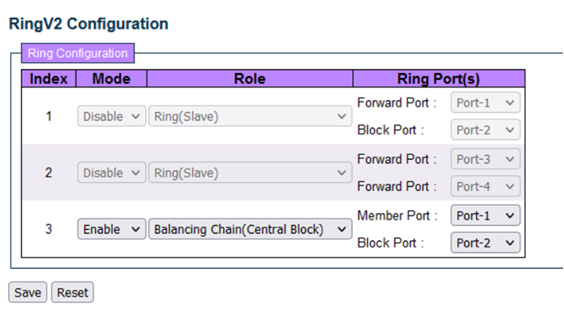

RingV2 Configuration window with mode=Enable and role=Balancing Chain (Central Block)
