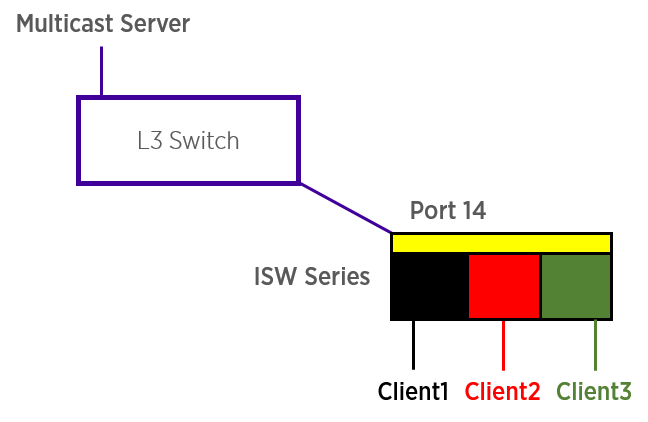

In this scenario, these
clients belong to multiple VLANs, so you have to create
more one VLAN to be the agent for all client VLANs.
To create a VLAN, navigate to ConfigurationVLANsAllow Access VLANs.
Set port 14 be
vlan200 member port.
Navigate to
ConfigurationIPMCVLAN Configuration.
Select the
Snooping Enable check box.
Set VLAN ID of
port14.
If there is no
querier on the L3 switch, you have to select Querier
Election, and set the Querier
Address. The IP address is in the same network as uplink
interface.
