Replace Versatile Interface Modules

You need the following tools and materials to install a VIM module:

• ESD-preventive wrist strap
• Phillips head screwdriver

Remove a VIM module

Use the following instructions to remove a VIM module.

1. Attach the ESD wrist strap to your wrist and connect the metal end to an appropriate ground point on the rack.
2. Ensure that the switch is completely powered down.
3. Remove the screws that secure the VIM module in the VIM slot using the Phillips head screwdriver.

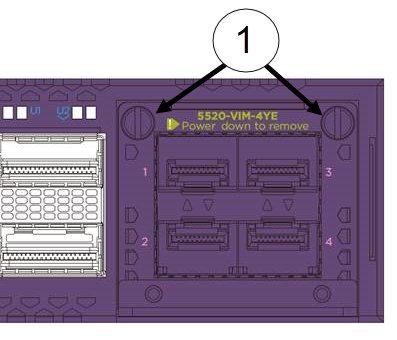

   VIM Module Inserted in Slot



   • 1 = VIM module retaining screw locations
4. Slide the VIM module out of the VIM slot and set it aside.

Replace a VIM module

Use the following instructions to replace a VIM module.

1. Attach the ESD wrist strap to your wrist and connect the metal end to an appropriate ground point on the rack.
2. Ensure that the switch is completely powered down.
3. Remove the VIM cover (if necessary) by removing the screws that hold the cover plate over VIM slot, using the Phillips head screwdriver.

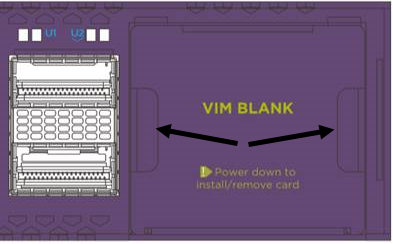

   Removing a slot Cover Plate (VIM slot cover shown)



   • 1 = VIM module retaining screw locations
4. Remove the new VIM module from its anti-static packaging.
5. Install the VIM module in the switch:
   1. Carefully slide the VIM module into the switch.
   2. Insert and tighten the retaining screws you previously removed, using the Phillips head screwdriver.



      VIM Module Inserted in Slot



      • 1 = VIM module retaining screw locations
