V300HT-8P-2X Model

The Virtual Port Extender V300HT-8P-2X model is a high-temperature model that offers the following features:

• Eight 10/100/1000BASE-T half/full duplex PoE+ ports
• Two 10Gb SFP+ ports
• One USB port
• One console/management port
• Two DC input ports

For more information about configuring Switch Engine for use with this equipment, see the Switch Engine User Guide for your version of the Switch Engine operating system.

The V300HT-8P-2X model is compatible with the following power supplies: 40W AC PS FRU (Model XN-ACPWR-40W).

• Model XN-ACPWR-320W-HT - a 320W AC power supply high temperature
• Model 16807 - an IS AC-DC power supply with 240W output and DIN rail compatible

Important

The high temperature power supplies for the V300HT models require field wiring. Power supplies must be installed in accordance with local electrical codes by a licensed electrician.

Note

Power supplies for this model are sold separately.

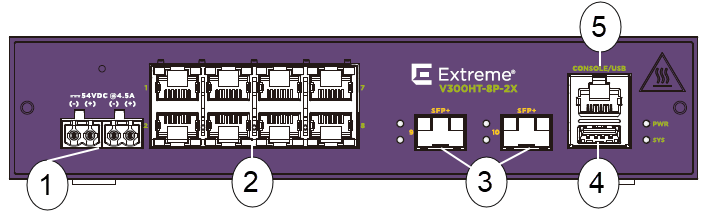

• 1 = DC input
• 2 = 10/100/1000BASE-T PoE+ ports
• 3 = 10Gb SFP+ ports
• 4 = USB port
• 5 = Console/Management port

V300HT-8P-2X Front Panel

V300 Virtual Port Extender Rear Panel
