V300-8P-2X Model

The Virtual Port Extender V300-8P-2X model offers the following features:

• Eight 10/100/1000BASE-T half/full duplex PoE+ ports
• Two 10Gb SFP+ ports
• One USB port
• One console/management port
• One DC input port

For more information about configuring Switch Engine for use with this equipment, see the Switch Engine User Guide for your version of the Switch Engine operating system.

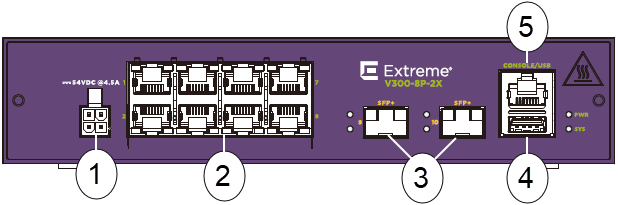

• 1 = DC input
• 2 = 10/100/1000BASE-T PoE+ ports
• 3 = 10Gb SFP+ ports
• 4 = USB port
• 5 = Console/Management port

The V300-8P-2X model is shipped with one 40W AC PS FRU (Model XN-ACPWR-280W).

V300-8P-2X Front Panel

V300 Virtual Port Extender Rear Panel
