Configuring Chain Head

  1. Navigate to ConfigurationRingV2.
  2. Disable Index1 and Index2, and then enable Index3.
  3. Select role as Chain(Head).
  4. Select a member port and a head port for this chain head switch.
Click to expand in new window

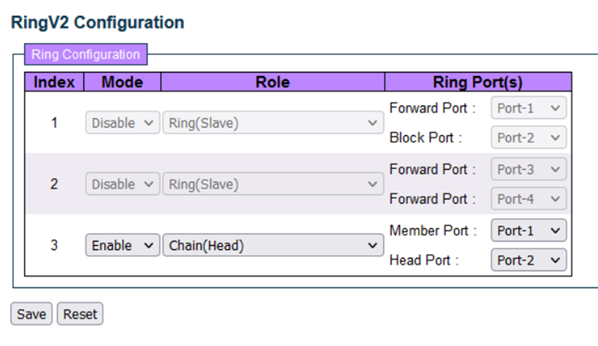

RingV2 Configuration window with mode=Enable and role=Chain (Head)
