Configuring Chain Tail

  1. Navigate to ConfigurationRingV2.
  2. Disable Index1 and Index2, and then enable Index3.
  3. Select role as Chain(Tail).
  4. Select a member port and a tail port for this chain tail switch.

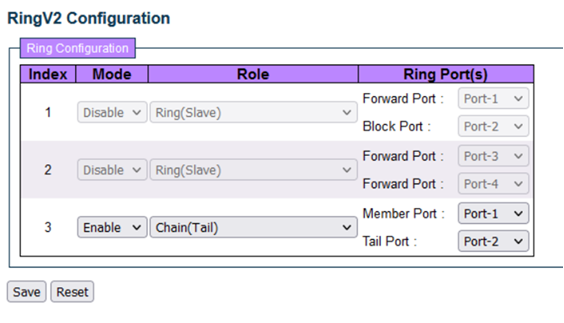

RingV2 Configuration window with mode=Enable and role=Chain (Tail)
