PoE Example 2

  1. Parameter Setting:
    • Reserved Power determined: Allocation
    • Power Management Mode: Reserved Power
    • Primary Power Supply: 138 W (> all port reserved power)
  2. Port Maximum Power
    • Port 1: 30 W
    • Port 2~ Port8: 15.4 W
    • Total: 137.8 W
  3. PD Power Consumption
    • Port 1: 1.3 watt (PoE Splitter) Port 2: 1.3 watt (PoE VoIP Phone)
    • Port 3: 3.8 watt (PoE WiFi AP)

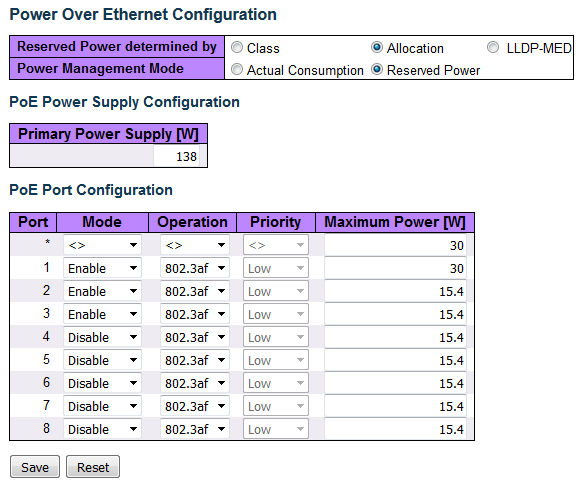

  4. Web Configuration
    Click to expand in new window
  5. Test Result

    PoE port status can be monitored by web: MonitorPoE.

    Because power has reserved for each port in advance, each powered device can use power budget of its corresponding port without exceeding its maximum power.
