Flooding traffic from a CEP

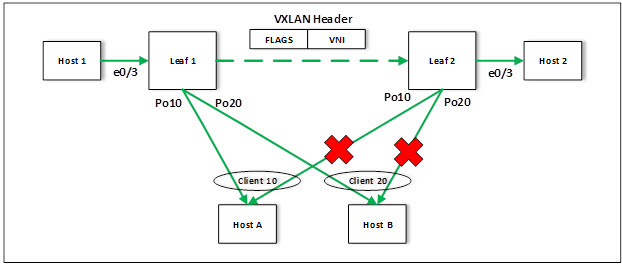

For BUM traffic received from Host 1 (CEP) on Leaf 1:

Leaf1 sends a copy to Leaf2 over the VXLAN tunnel. This copy is encapsulated with a VXLAN header with a VNI.
Leaf 2 decapsulates the packet and floods the packet to Host 2.
Copies to Host A and Host B are suppressed on Po10 and Po20.
