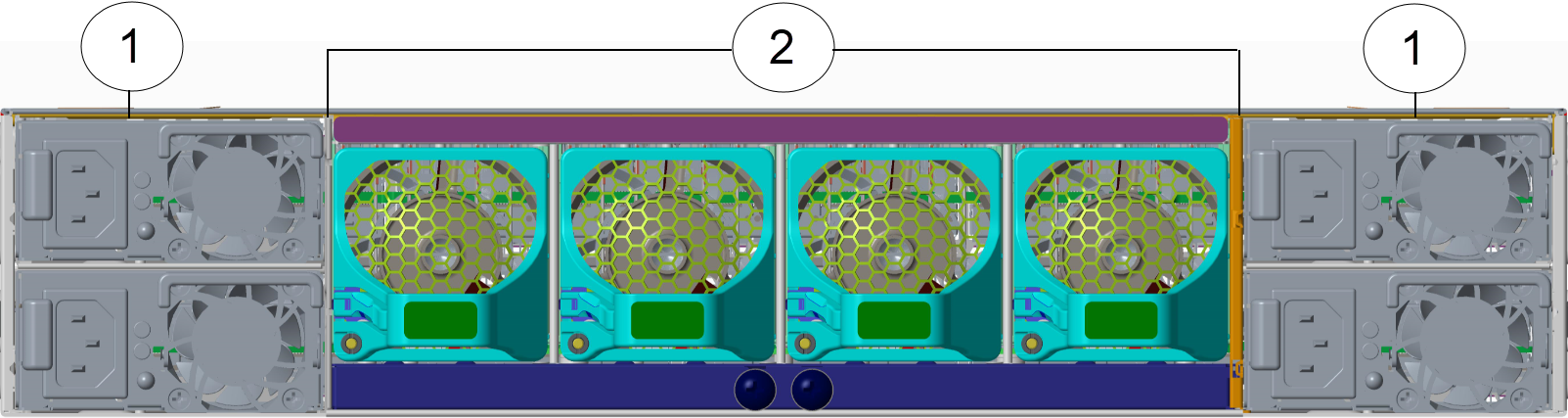

The SLX 9740-80C, 9740-80C base switch includes four unpopulated power supply slots and four unpopulated fan slots. Fan modules and power supply modules must be ordered separately.
SLX 9740-80C-AC-F
The SLX 9740-80C-AC-F switch includes four internal AC power supplies and four fan modules. Airflow for both the fan modules and the powers supply modules is front-to-back.
SLX 9740-80C-AC-R
The SLX 9740-80C-AC-R switch includes four internal AC power supplies and four fan modules. Airflow for both the fan modules and the powers supply modules is front-to-back.
SLX 9740-80C-DC-F
The SLX 9740-80C-DC-F switch includes four internal AC power supplies and four fan modules. Airflow for both the fan modules and the powers supply modules is front-to-back.
SLX 9740-80C-DC-R
The SLX 9740-80C-DC-R switch includes four internal AC power supplies and four fan modules. Airflow for both the fan modules and the powers supply modules is front-to-back.

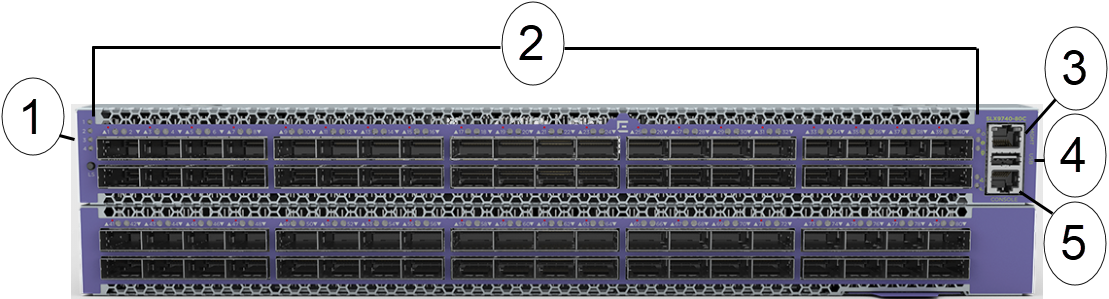

The front panel of the switch includes:
1 = System status LEDs
2 = 100GE/40GE QSFP28 ports
3 = 10/100/1000BASE-T RJ45 out-of-band management port
