Time and Items Required
The installation or replacement procedure for one transceiver takes less than 5 minutes. Ensure that the following items are available:
Required number of compatible power cables
Required number of supported Extreme-branded transceivers
Required number of compatible fiber-optic cables
Optical transceiver extraction tool (for 10 Gbps transceiver only)
Note
Most Extreme devices come with a transceiver extraction tool and holster. The extraction tool is designed to remove transceivers from modules where the space is limited.

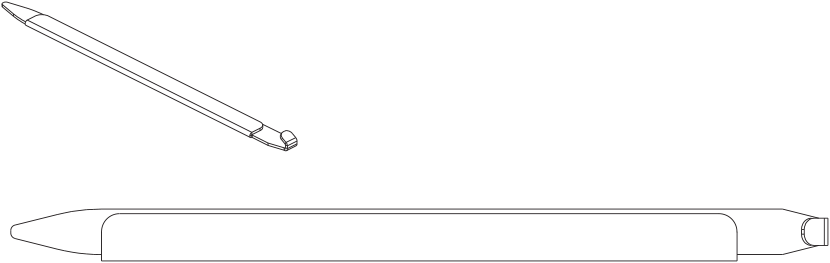

Optical transceiver extraction tool
