Antenna radiation patterns are an important tool when you install your access point. Use this information to optimize your coverage, to reduce interference from other devices, and to ensure you comply with government regulations.
2.4 GHz Radiation Patterns
The following diagrams illustrate the radiation patterns for the AP4060 internal antenna.
AP4060 2.4 GHz - Vertical Radiation Pattern

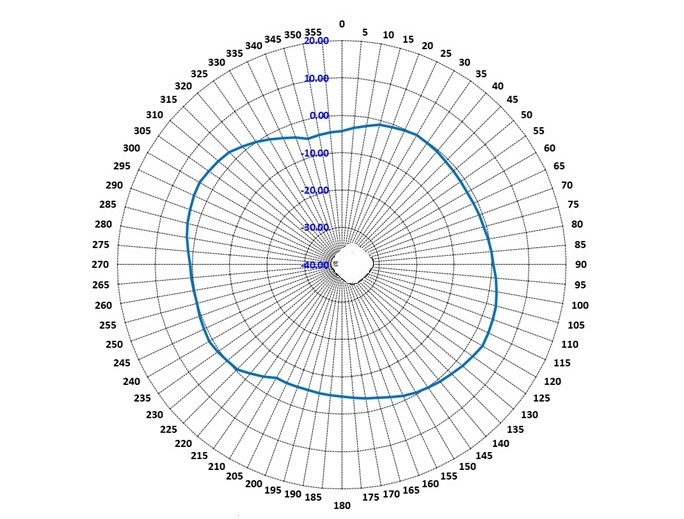

AP4060 2.4GHz - Horizontal Radiation Pattern
5 GHz Radiation Patterns
The following diagrams illustrate the radiation patterns for the AP4060 5 GHz internal antenna.

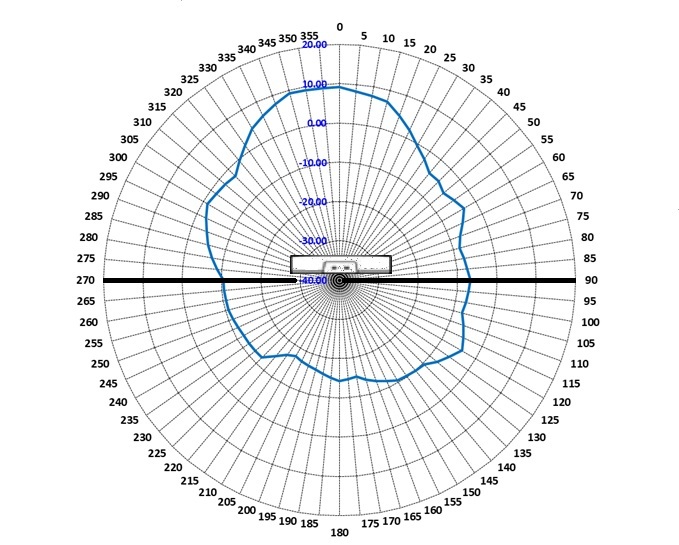

AP4060 5 GHz - Low Vertical Radiation Pattern

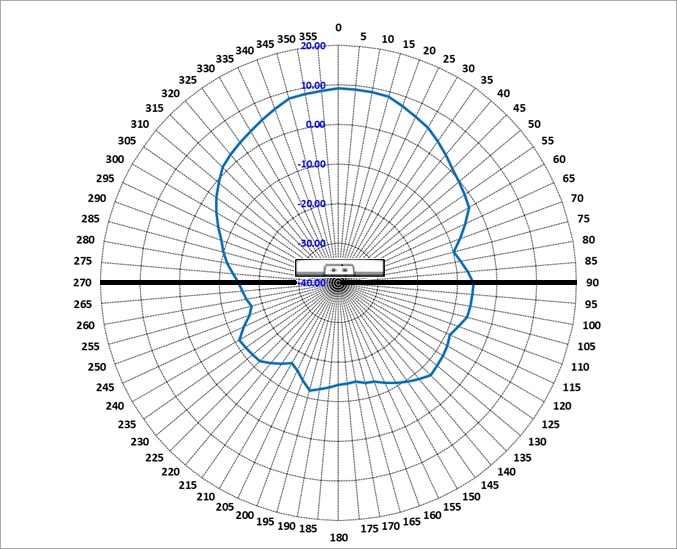

AP4060 5 GHz - Low Horizontal Radiation Pattern

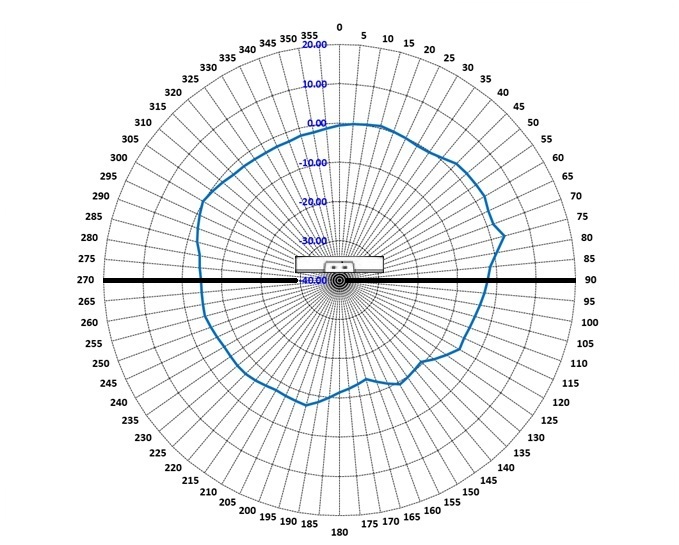

AP4060 5 GHz -Vertical Radiation Pattern

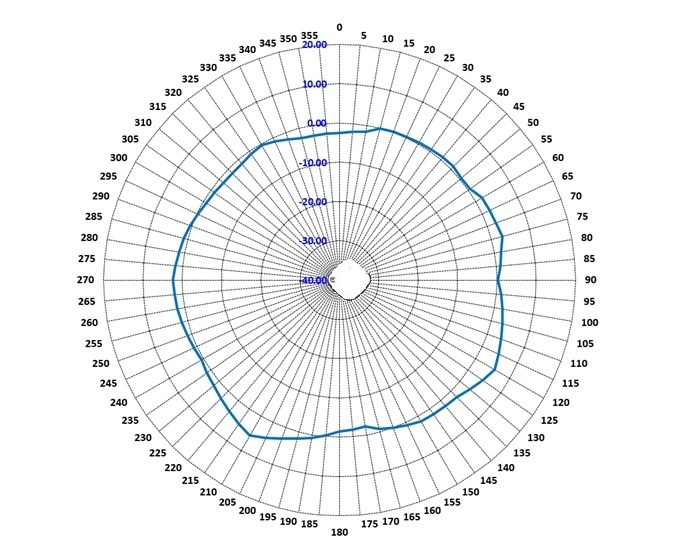

AP4060 5 GHz - Horizontal Radiation Pattern
6 GHz Radiation Patterns
The following diagrams illustrate the radiation patterns for the AP4060 6 GHz internal antenna.

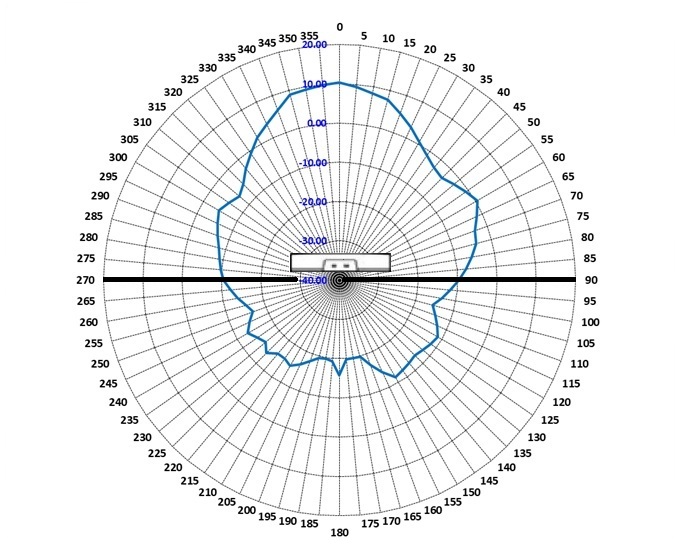

6 GHz - Vertical Radiation Pattern

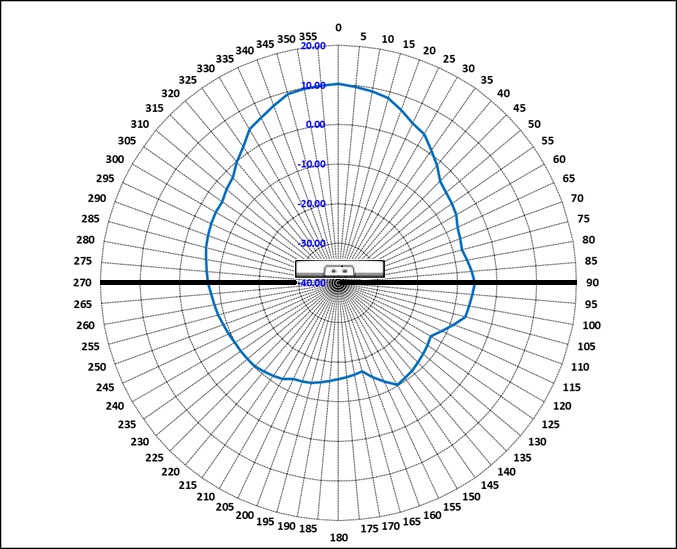

6 GHz - Horizontal Radiation Pattern
BLE Radio 1 Radiation Patterns
The following diagrams illustrate the radiation patterns for the AP4060 BLE Radio 1.

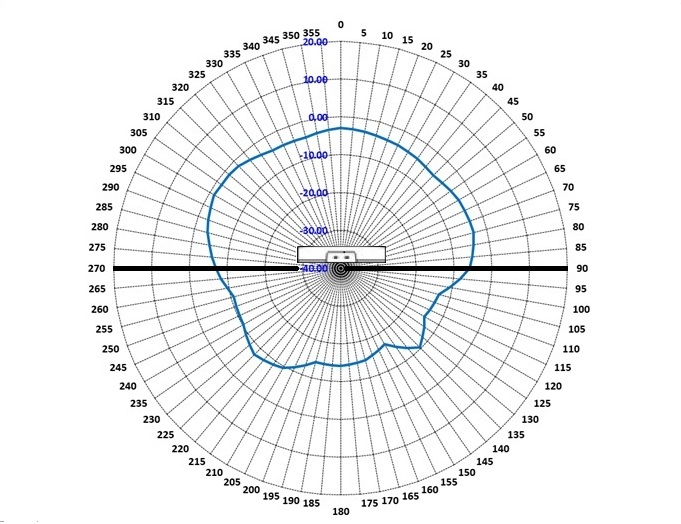

AP4060 BLE Radio 1 - Vertical Radiation Pattern

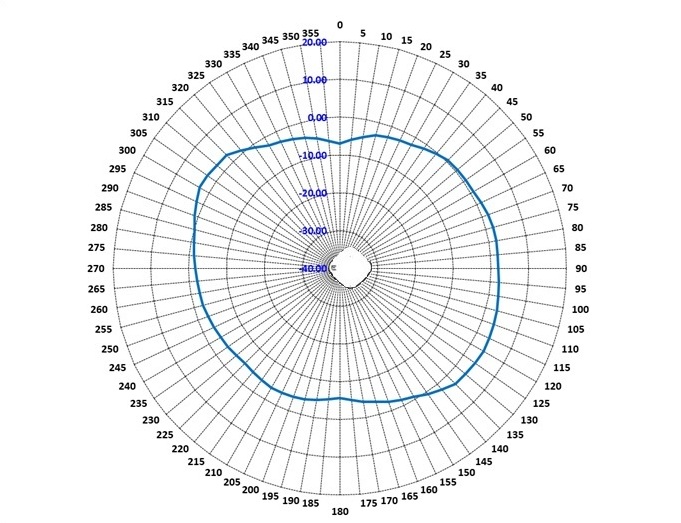

AP4060 BLE Radio 1 - Horizontal Radiation Pattern
BLE Radio 2 Radiation Patterns
The following diagrams illustrate the radiation patterns for the AP4060 BLE Radio 2.

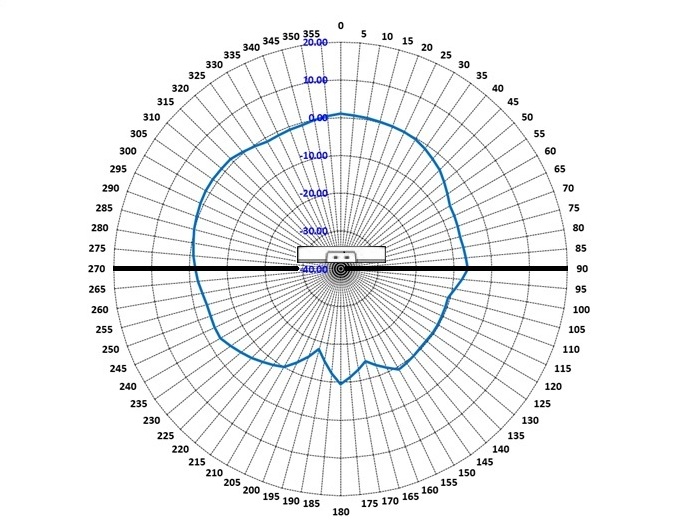

AP4060 BLE Radio 2 - Vertical Radiation Pattern

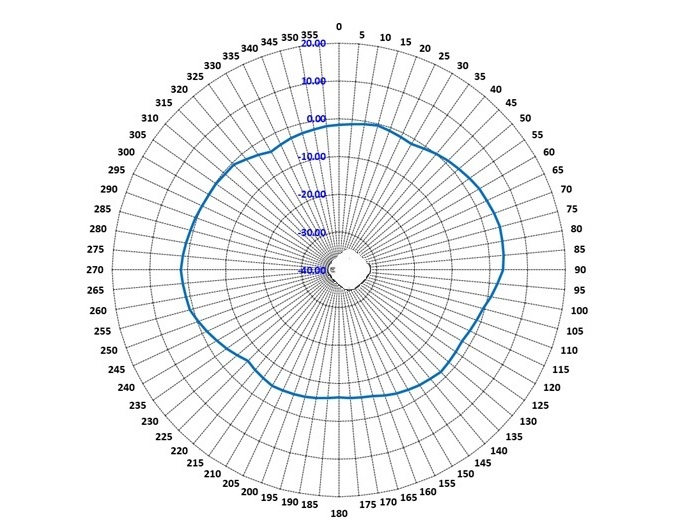

AP4060 BLE Radio 2 - Horizontal Radiation Pattern
BLE Radio 3 Radiation Patterns
The following diagrams illustrate the radiation patterns for the AP4060 BLE Radio 3.
AP4060 BLE Radio 3 - Vertical Radiation Pattern

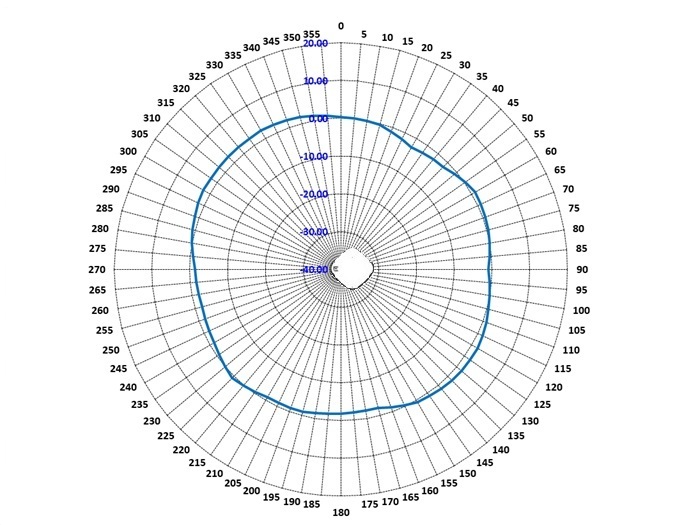

AP4060 BLE Radio 3 - Horizontal Radiation Pattern

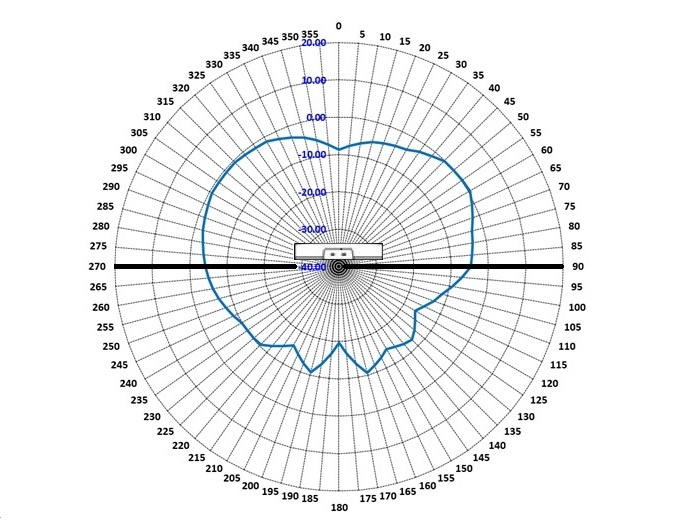

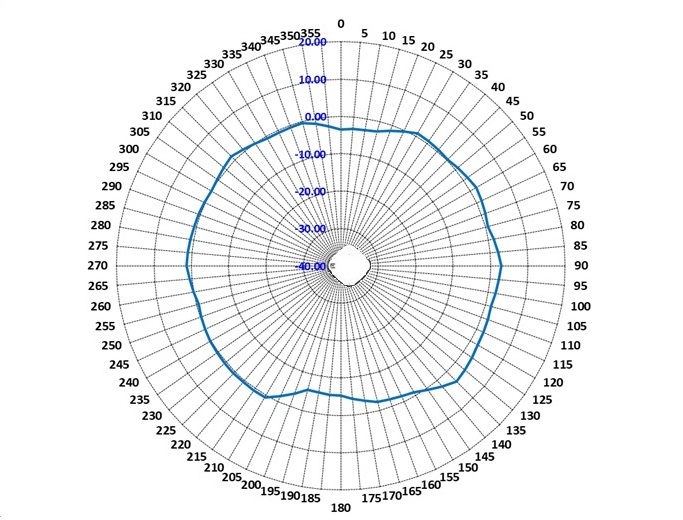

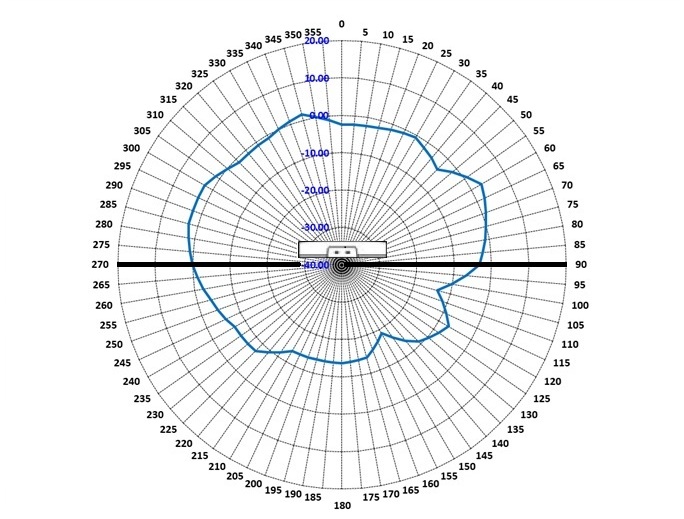

Sensor Radiation Patterns

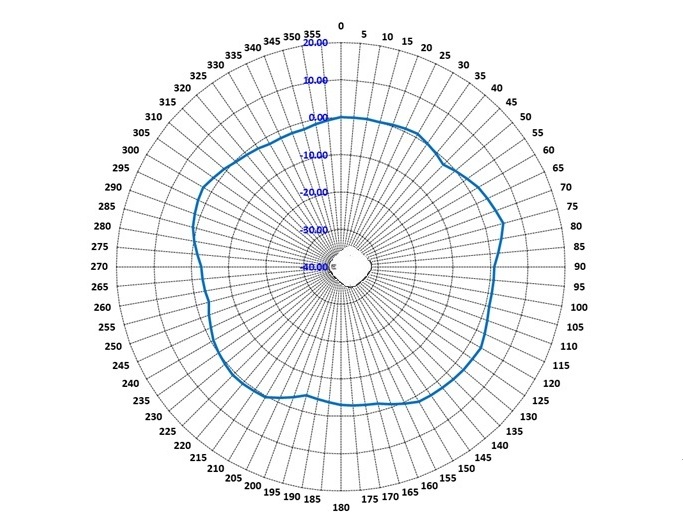

The following diagrams illustrate the radiation patterns for the AP4060 sensor.
