Antenna Connectors

It is important that you connect the antenna leads to the correct antenna port on the breakout panel. Use the following graphic and tables as a guide when you connect your antennas.

The following table maps software modes to the ports used by the mode.

Table 1. Software Mode and Corresponding Ports
Software Mode	Band	Corresponding Ports	Comment
Mode 1	2.4 GHz/5 GHz/6 GHz plus a tri-band sensor.	Ports 1-8	Used in most deployments.
Mode 2	5 GHz (Low)/5 GHz (High)/6 GHz plus a tri-band sensor.	Ports 1-12	Used for dense deployments; typically used for dual 5 GHz radios.
Mode 3	5 GHz/6 GHz (High)/ 6 GHz (Low) plus a tri-band sensor.	Ports 1-12	Used for dense deployments; typically used for dual 6 GHz radios.

Locate the antenna in the tables below and, moving across the table, connect the specified antenna lead to the port on the breakout panel.

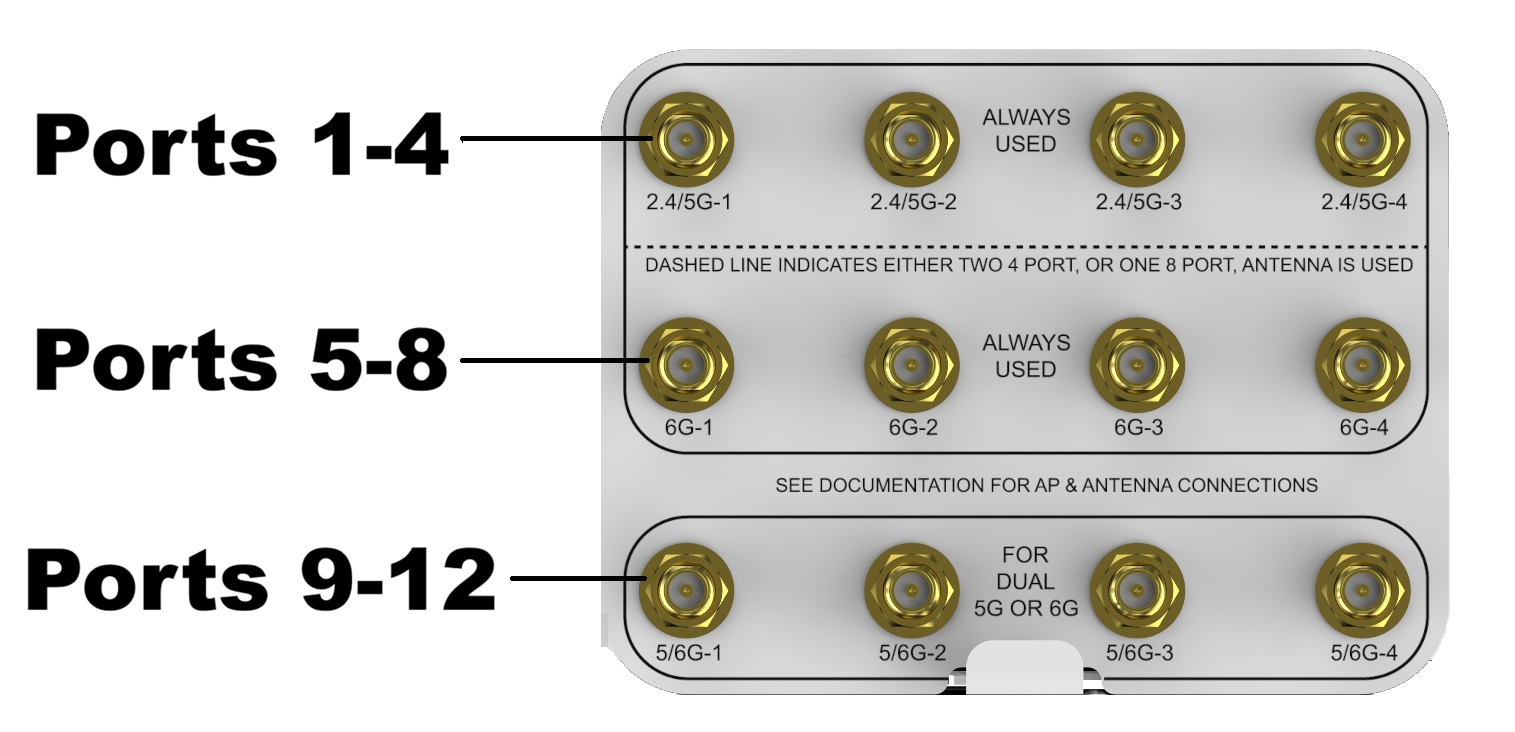

Antenna connector ports with ports 1-4 showing 2.6 GHz/5 GHz ports, ports 5-8 showing 6 GHz ports, and ports 9-12 showing 5/6 GHz ports.

Ports 9-12 are shipped with dust covers installed. Remove the covers before connecting an antenna to the ports.

Note

AI-TS06360 is for Internet of Things (IoT) use only. Unlike the other antennas, AI-TS06360 has one lead and it connects to the IoT port on the AP. See Hardware Ports.

Table 2. AI-TP05360
Breakout Panel Ports	Leads
2.4/5 GHz
Port 1	1
Port 2	2
Port 3	3
Port 4	4
6 GHz 6 GHz alone requires ports 5 to 8; 2.4/5 GHz with 6 GHz requires ports 1 to 8.
Port 5	1
Port 6	2
Port 7	3
Port 8	4
Dual 5/Dual 6 GHz Requires all 12 ports.
Port 9	1
Port 10	2
Port 11	3
Port 12	4

Note

Note the following abbreviations: V-Pol is short for vertical polarization and H-Pol horizontal polarization.

Table 3. AI-TQ08055
Breakout Panel Ports	Leads
2.4/5 GHz
Port 1	1/A V-Pol
Port 2	2/B H-Pol
Port 3	3/C V-Pol
Port 4	4/D H-Pol
6 GHz 6 GHz alone requires ports 5 to 8; 2.4/5 GHz with 6 GHz requires ports 1 to 8.
Port 5	1/A V-Pol
Port 6	2/B H-Pol
Port 7	3/C V-Pol
Port 8	4/D H-Pol
Dual 5/Dual 6 GHz Requires all 12 ports.
Port 9	1/A V-Pol
Port 10	2/B H-Pol
Port 11	3/C V-Pol
Port 12	4/D H-Pol

Table 4. AIO-HQ17020
Breakout Panel Ports	Leads
2.4/5 GHz
Port 1	1/A -45 Pol.
Port 2	2/B +45 Pol.
Port 3	3/C +45 Pol.
Port 4	4/D -45 Pol.
6 GHz 6 GHz alone requires ports 5 to 8; 2.4/5 GHz with 6 GHz requires ports 1 to 8.
Port 5	1/A -45 Pol.
Port 6	2/B +45 Pol.
Port 7	3/C +45 Pol.
Port 8	4/D -45 Pol.
Dual 5/Dual 6 GHz Requires all 12 ports.
Port 9	1/A -45 Pol.
Port 10	2/B +45 Pol.
Port 11	3/C +45 Pol.
Port 12	4/D -45 Pol.

Table 5. AIO-DQ15021-RPSMA
Breakout Panel Ports	Leads
2.4/5 GHz
Port 1	V-Pol
Port 2	H-Pol
Port 3	V-Pol
Port 4	H-Pol
6 GHz 6 GHz alone requires ports 5 to 8; 2.4/5 GHz with 6 GHz requires ports 1 to 8.
Port 5	Not available
Port 6
Port 7
Port 8
Dual 5/Dual 6 GHz Requires all 12 ports.
Port 9	(5GHz only) V-Pol
Port 10	(5GHz only) 2: H-Pol
Port 11	(5GHz only) V-Pol
Port 12	(5GHz only) only H-Pol

Table 6. AI-TQ06120
Breakout Panel Ports	Leads
2.4/5 GHz
Port 1	V-Pol to 1/A V-Pol
Port 2	V-Pol to 2/B H-Pol
Port 3	V-Pol to 3/C V-Pol
Port 4	V-Pol to 4/D H-Pol
6 GHz 6 GHz alone requires ports 5 to 8; 2.4/5 GHz with 6 GHz requires ports 1 to 8.
Port 5	V-Pol to 1/A V-Pol
Port 6	V-Pol to 2/B H-Pol
Port 7	V-Pol to 3/C V-Pol
Port 8	V-Pol to 4/D H-Pol
Dual 5/Dual 6 GHz Requires all 12 ports.
Port 9	V-Pol to 1/A V-Pol
Port 10	V-Pol to 2/B H-Pol
Port 11	V-Pol to 3/C V-Pol
Port 12	V-Pol to 4/D H-Pol

Table 7. AI-TH06120
Breakout Panel Ports	Leads
2.4/5 GHz
Port 1	1/A V-Pol
Port 2	2/B H-Pol
Port 3	3/C V-Pol
Port 4	4/D H-Pol
6 GHz 6 GHz alone requires ports 5 to 8; 2.4/5 GHz with 6 GHz requires ports 1 to 8.
Port 5	5/E V-Pol
Port 6	6/F H-Pol
Port 7	1/A V-Pol
Port 8	2/B H-Pol
Dual 5/Dual 6 GHz Requires all 12 ports.
Port 9	3/C V-Pol
Port 10	4/D H-Pol
Port 11	5/E V-Pol
Port 12	6/F H-Pol

Table 8. AI-TH08055
Breakout Panel Ports	Leads
2.4/5 GHz
Port 1	1/A V-Pol
Port 2	2/B H-Pol
Port 3	3/C V-Pol
Port 4	4/D H-Pol
6 GHz 6 GHz alone requires ports 5 to 8; 2.4/5 GHz with 6 GHz requires ports 1 to 8.
Port 5	5/E V-Pol
Port 6	6/F H-Pol
Port 7	1/A V-Pol
Port 8	2/B H-Pol
Dual 5/Dual 6 GHz Requires all 12 ports.
Port 9	3/C V-Pol
Port 10	4/D H-Pol
Port 11	5/E V-Pol
Port 12	6/F H-Pol

Table 9. AI-TH14035
Breakout Panel Ports	Leads
2.4/5 GHz
Port 1	1V
Port 2	2H
Port 3	3V
Port 4	4H
6 GHz 6 GHz alone requires ports 5 to 8; 2.4/5 GHz with 6 GHz requires ports 1 to 8.
Port 5	1V
Port 6	2H
Port 7	3V
Port 8	4H
Dual 5/Dual 6 GHz Requires all 12 ports.
Port 9	1V
Port 10	2H
Port 11	3V
Port 12	4H
