AP5022
Bluetooth Low Energy Radio 1
The following diagrams illustrate the radiation patterns for Bluetooth Low Energy (BLE) radio 1 for
AP5022
.
AP5022

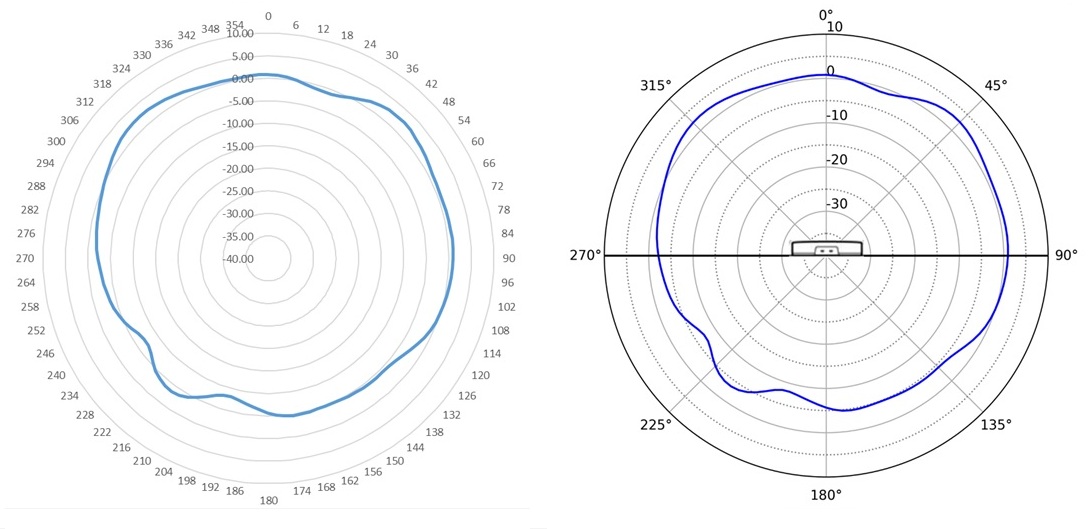

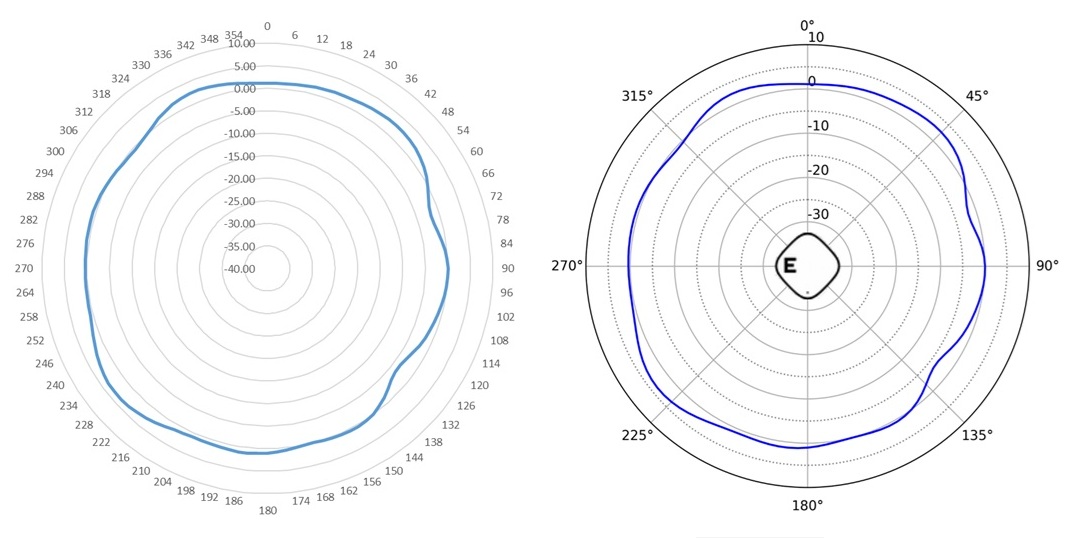

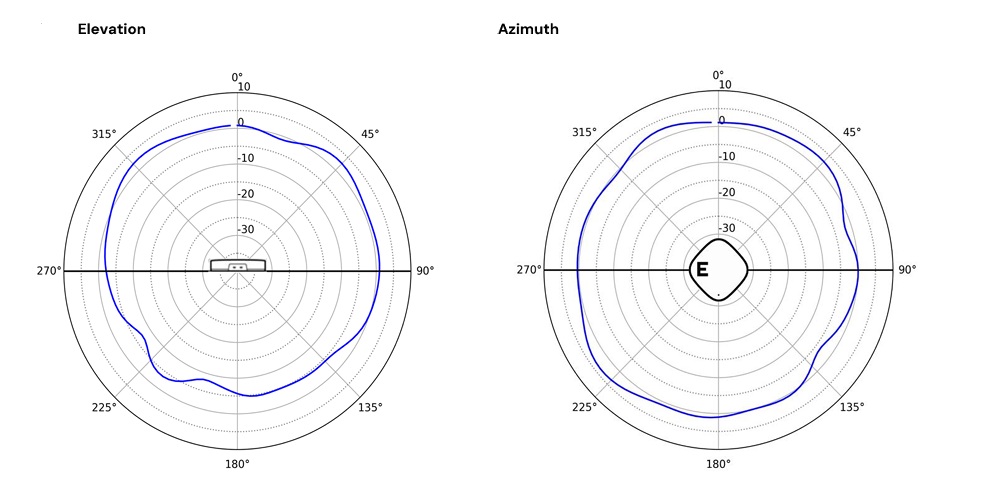

Radiation Pattern - BLE Radio 1
