AP5022
Bluetooth Low Energy Radio 2

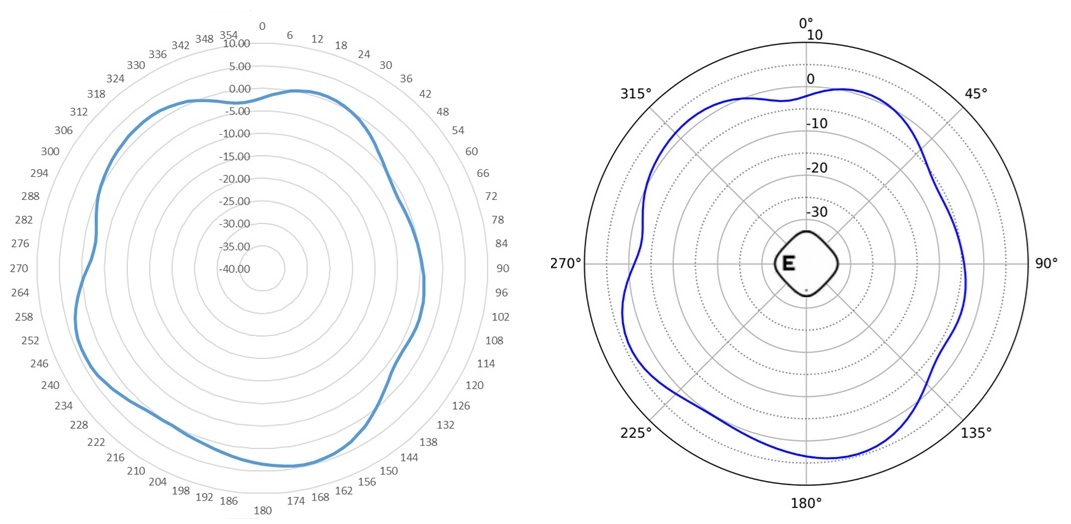

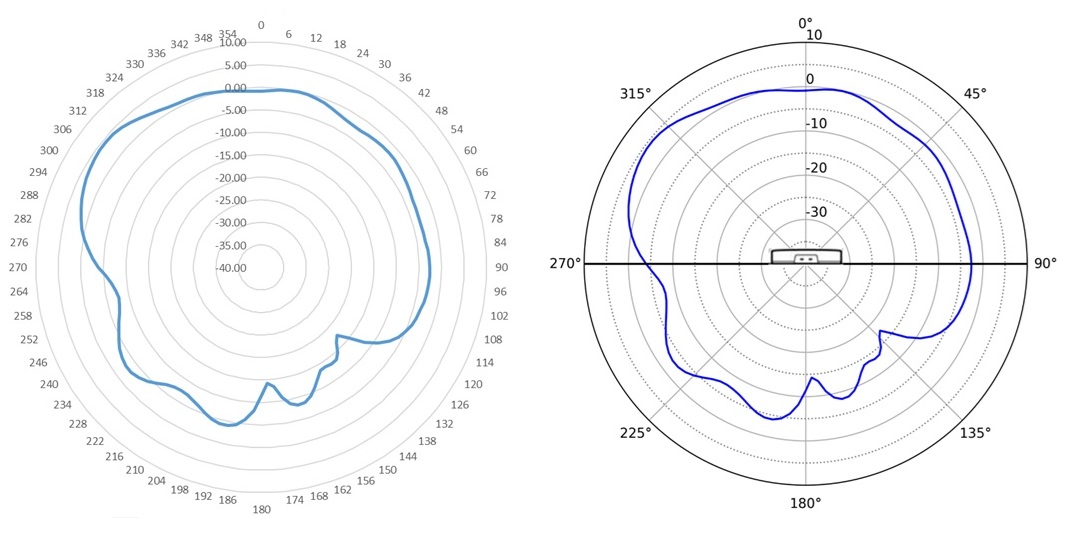

The following diagrams illustrate the radiation patterns for Bluetooth Low Energy (BLE) radio 2 for
AP5022
.
AP5022

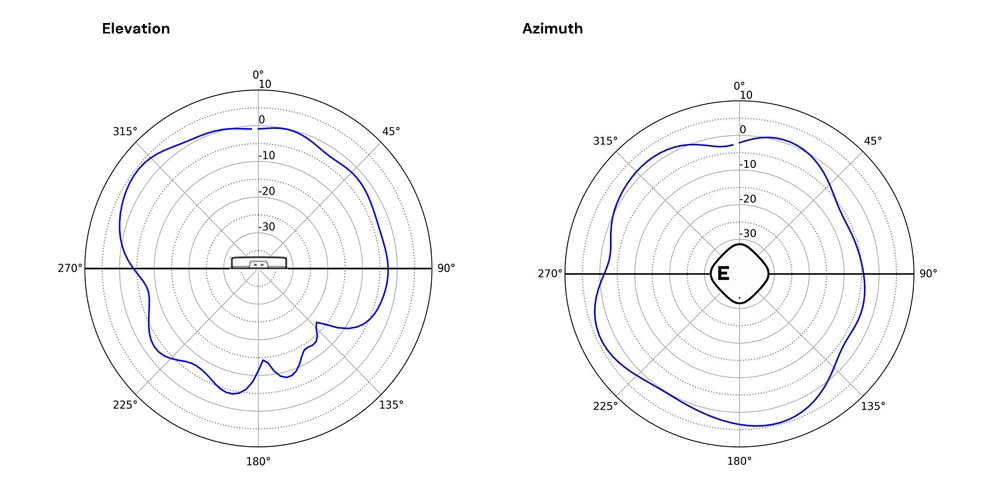

Radiation Pattern - BLE Radio 2
