The AP5022, AP5022FX, and AP5022S6D are universal indoor access points with a Wi-Fi 7 quad-radio. They are designed for high-density environments where a large number of people will access your network such as schools, warehouses, health care facilities, and stadiums.

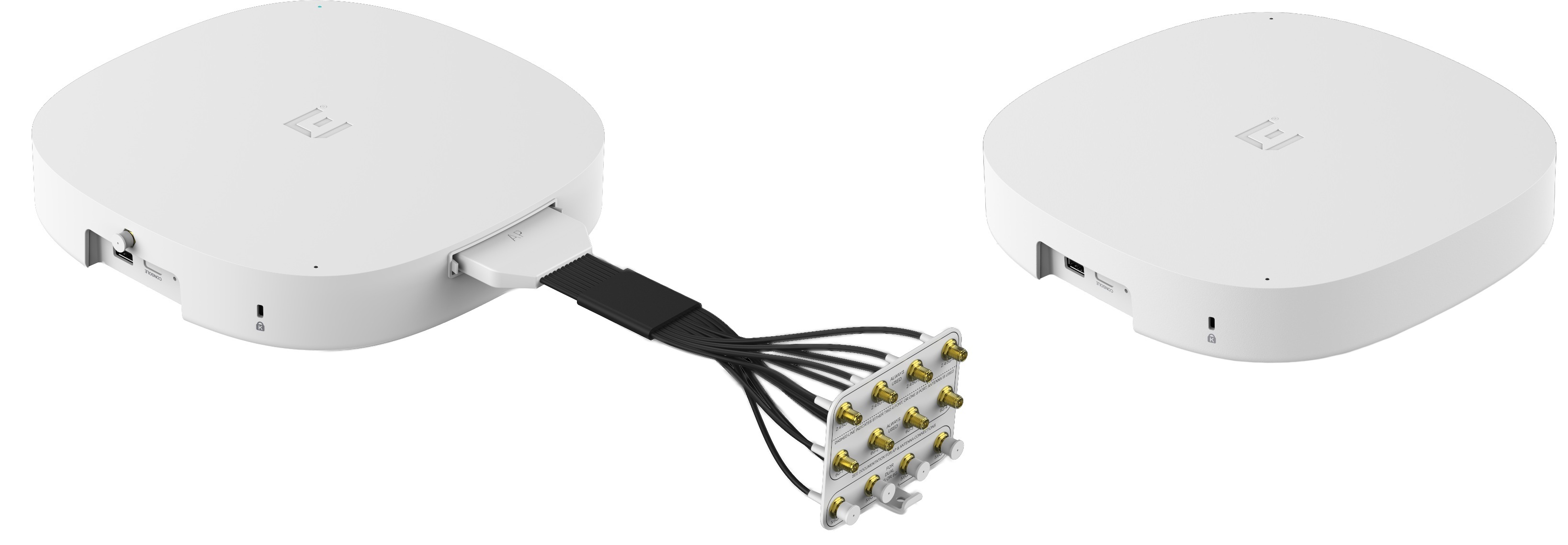

The AP5022 Series includes three models, each designed for specific deployment needs:
AP5022 – Internal omni-directional antennas.
AP5022S6D – 60° internal directional antennas.
AP5022FX – Internal 6GHz radio for LPI for countries where external antenna ports are not supported.
Note
For Global markets: The AP5022FX uses the internal 6GHz radio for Low Power Indoor (LPI).The access points (APs) in the series uses the 802.11 wireless standards (802.11a/b/g/n/ac/ax/be) for network communications, and bridge network traffic to an Ethernet LAN. They can operate in either the cloud with ExtremeCloud IQ or in an on-premise environment with ExtremeCloud IQ Controller.
You can operate the radios across three bands - 2.4 GHz (4x4:4), 5 GHz (4x4:4), and 6 GHz (4x4:4). Operate the APs in one of the following three modes:
Mode 2: 5 GHz (Low)/5 GHz (High)/6 GHz plus a tri-band sensor
