Client Graph

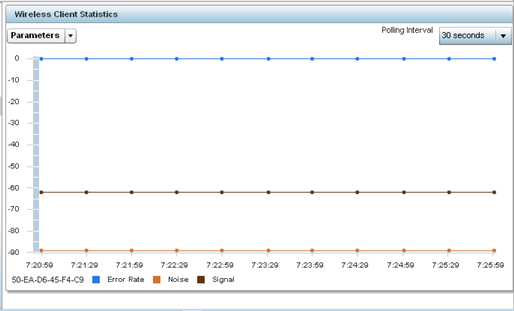

Use the Graph to assess a connected client's radio performance and diagnose performance issues that may be negatively impacting performance. Up to three selected performance variables can be charted at one time. The graph uses a Y-axis and a X-axis to associate selected parameters with their performance measure.

To view a graph of this client's statistics:

1. Select the Statistics menu from the Web UI.
2. Select System from the navigation pane (on the left-hand side of the screen). Expand an RF Domain, select a controller, an access point, then a connected client.
3. Select Graph.
4. Use the Parameters drop-down menu to define from 1- 3 variables assessing signal noise, transmit or receive values.
5. Use the Polling Interval drop-down menu to define the interval the chart is updated. Options include 30 seconds, 1 minute, 5 minutes, 20 minutes or 1 hour. The default value is 30 seconds.





6. Select an available point in the graph to list the selected performance parameter, and display that parameter's value and a time stamp of when it occurred.
